Retained Accessory Power (RAP) Connector End Views

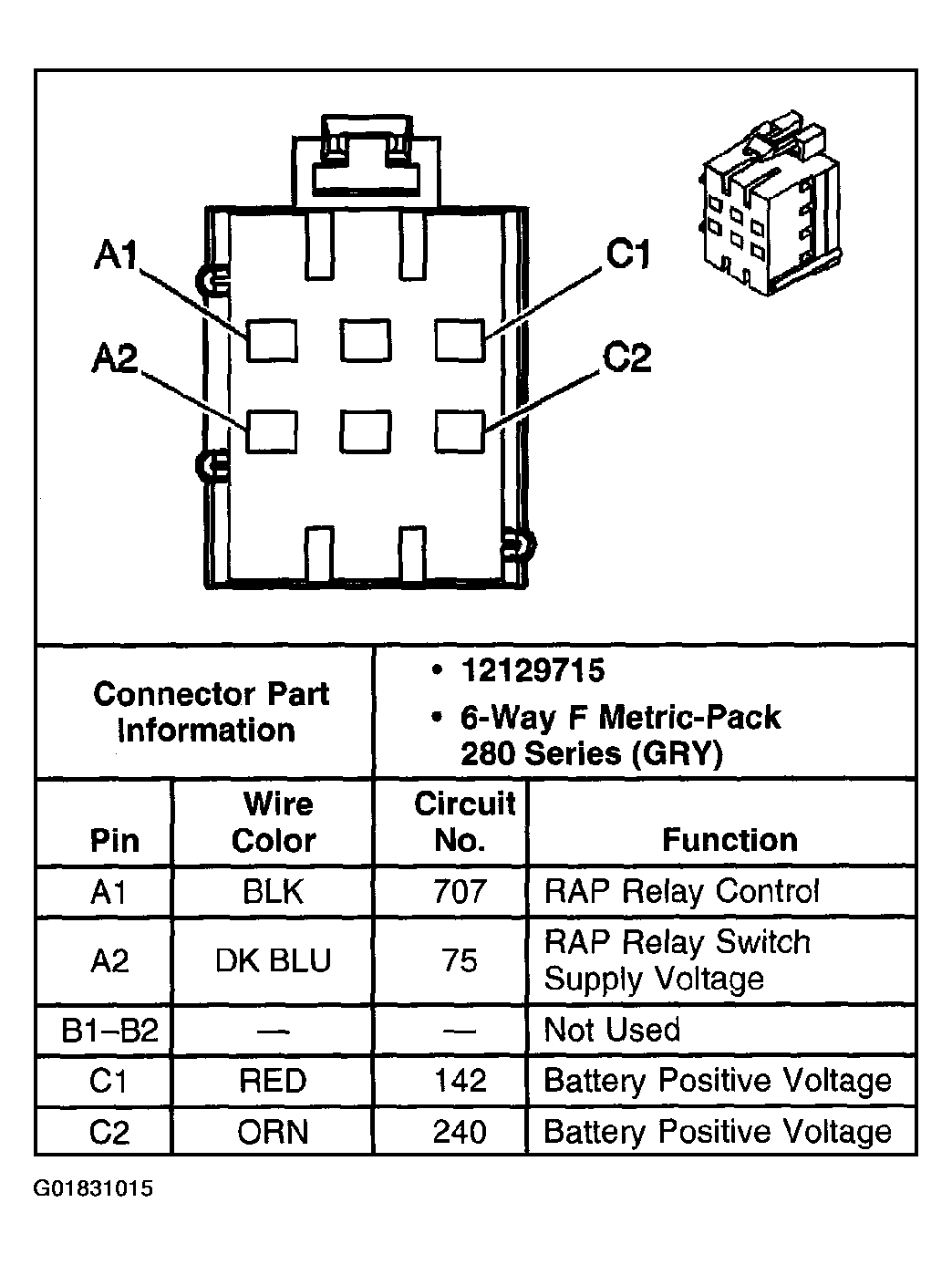

Fig 1: Retained Accessory Power (RAP) Relay Connector End View

G01831015

Courtesy of GENERAL MOTORS CORP.
