Stationary Windows Connector End Views

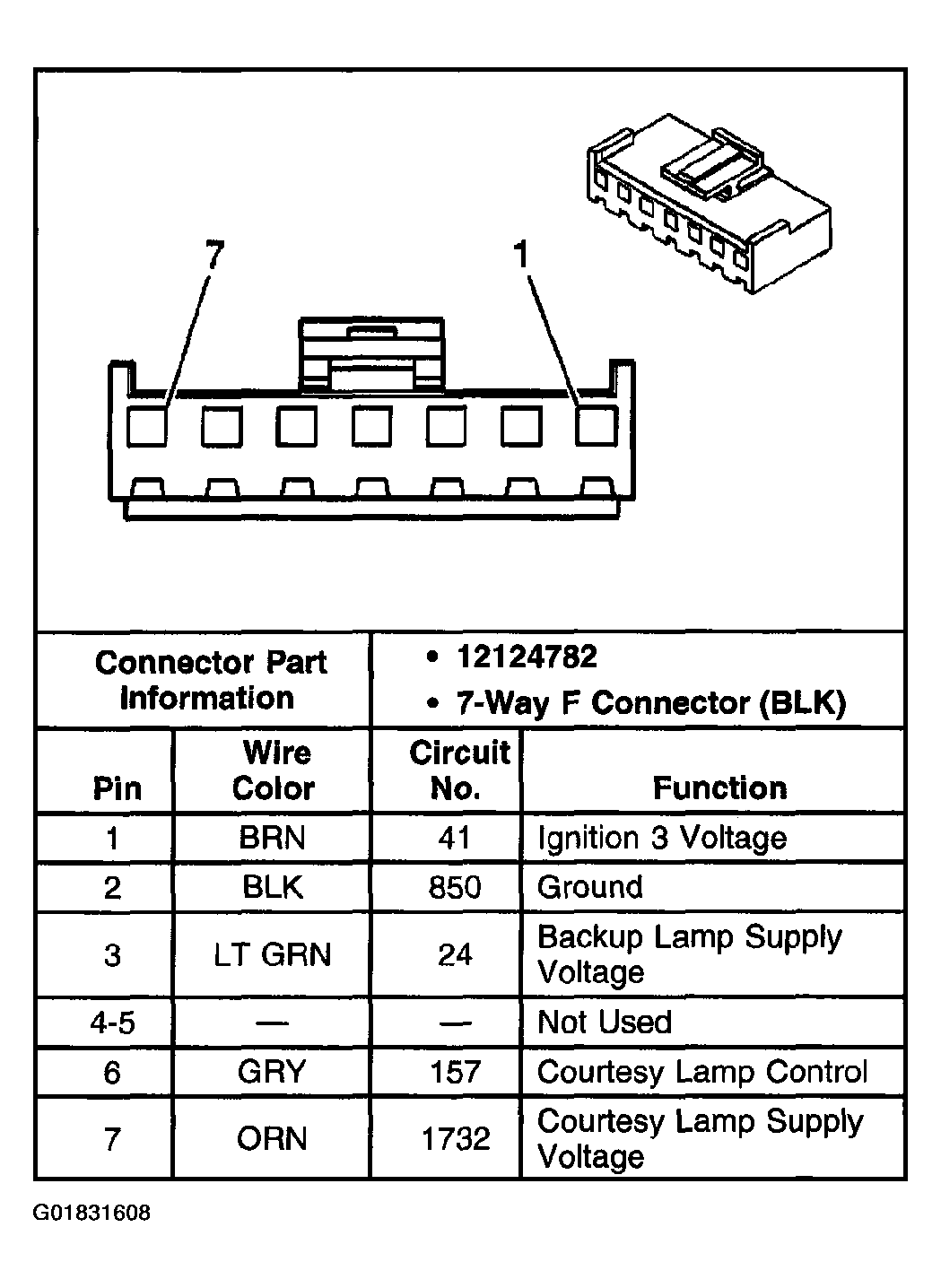

Fig 1: Inside Rearview Mirror (W/O UE1) Connector End View
G01831608Courtesy of GENERAL MOTORS CORP.

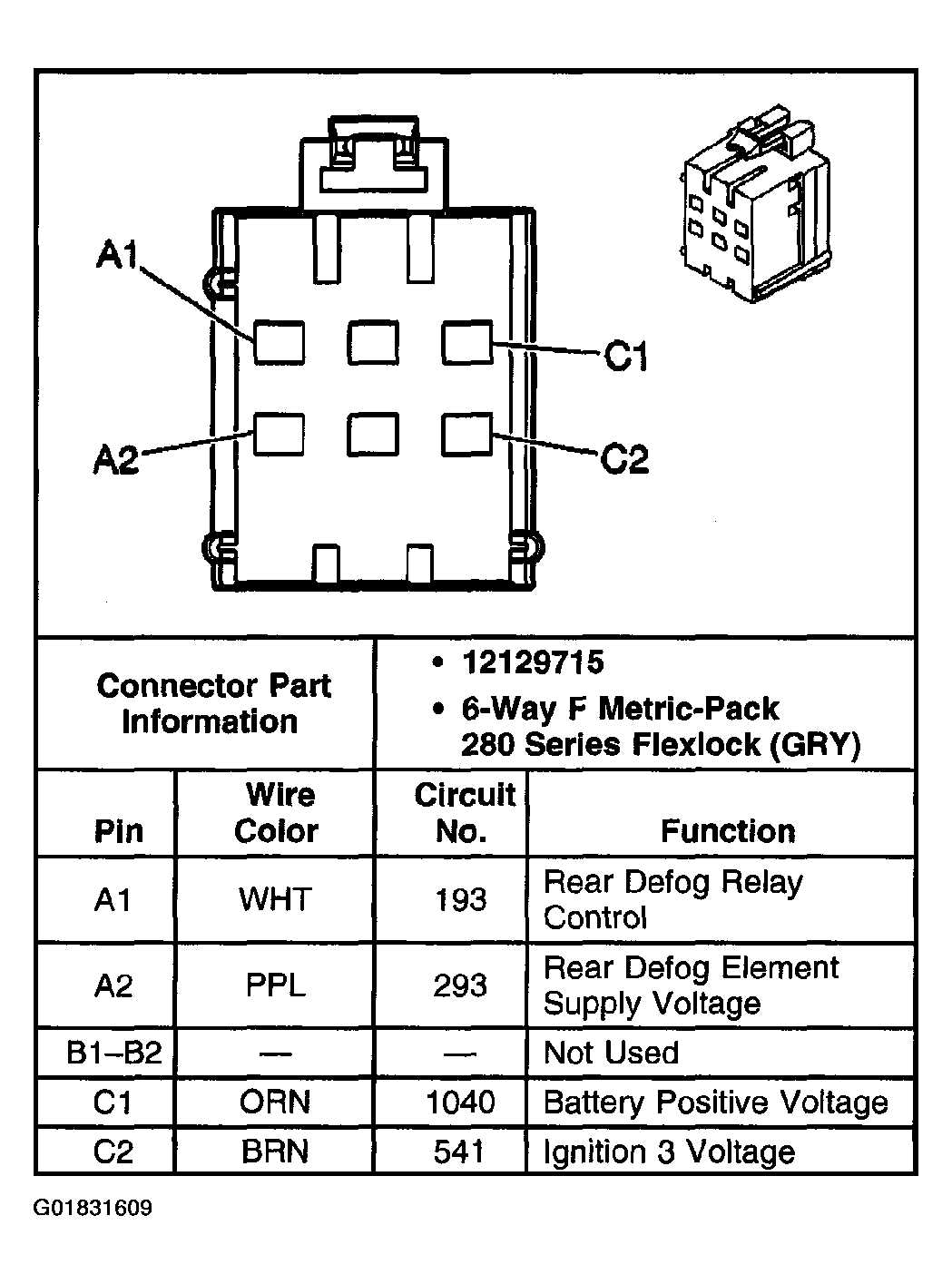

Fig 2: Rear Window Defogger Relay Connector End View
G01831609Courtesy of GENERAL MOTORS CORP.
