Removal Procedure

  1. Open the door.
  2. Using J 36604  , remove the door hinge spring from the door hinge.
  3. Remove the door hinge spring from the vehicle.

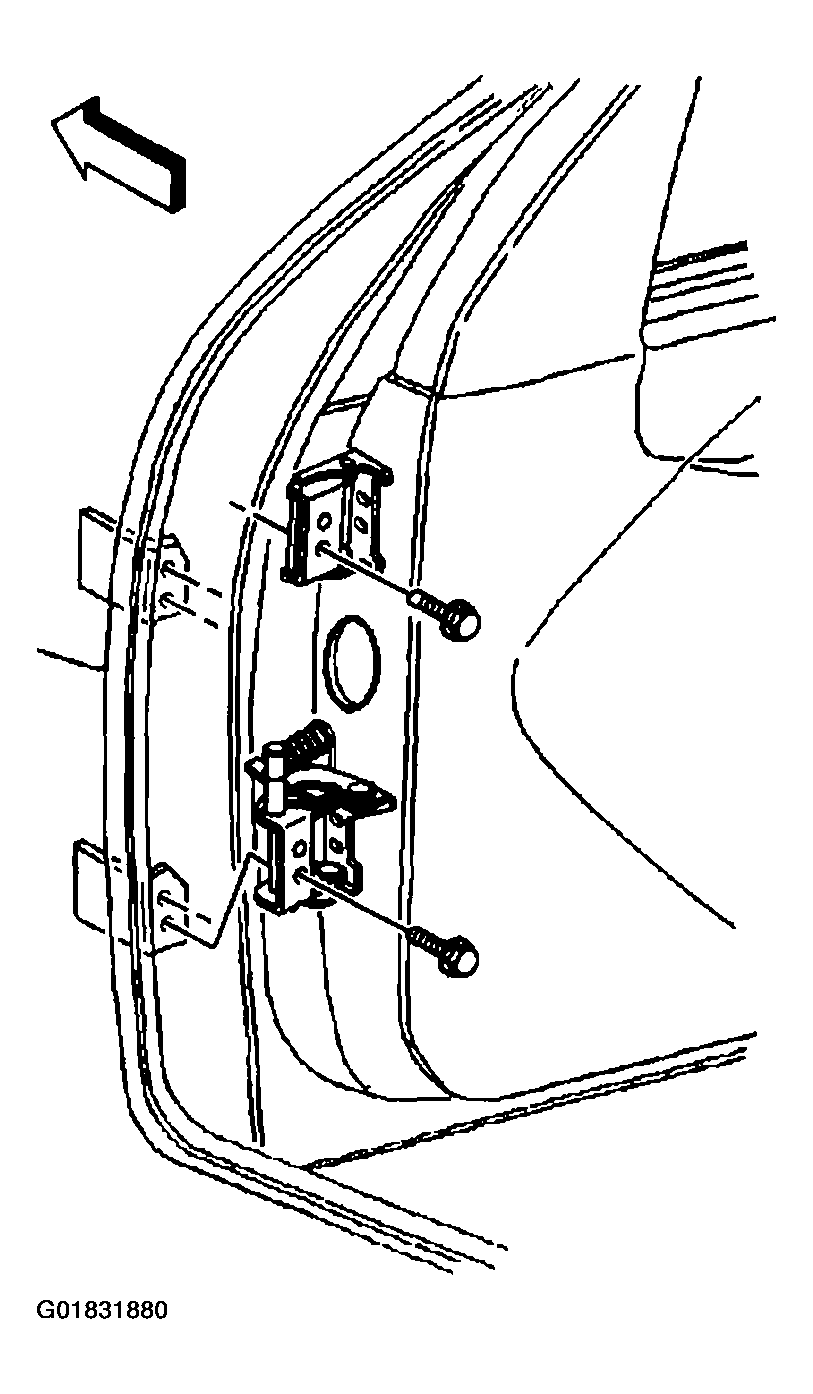

    Fig 1: Removing Door Hinge Spring From Door Hinge
    G01831880Courtesy of GENERAL MOTORS CORP.
