Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door water deflector. Refer to Water Deflector Replacement - Rear Door  or Water Deflector Replacement - Front Door .
  3. Loosen the armrest bracket to door upper bolt.
  4. Remove the armrest bracket to door lower bolt.
  5. Lift the armrest bracket up and away from the door to remove.

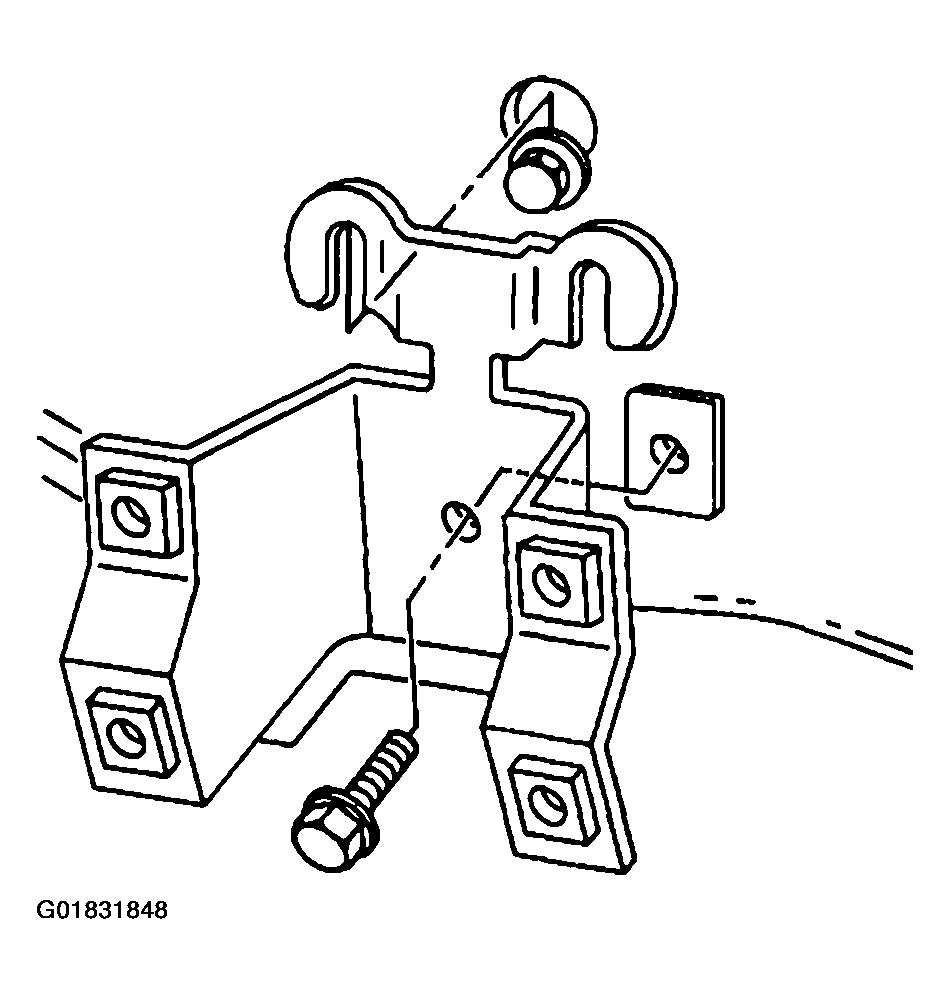

    Fig 1: Removing Armrest Bracket & Bolts
    G01831848Courtesy of GENERAL MOTORS CORP.
