Installation Procedure

  1. Align the armrest bracket to the armrest bracket to door upper bolt.
  2. Install the lower armrest bracket to door lower bolt.
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the armrest bracket to door upper and lower bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  4. Install the door water deflector. Refer to Water Deflector Replacement - Rear Door  or Water Deflector Replacement - Front Door .
  5. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door  or Trim Panel Replacement - Side Rear Door .

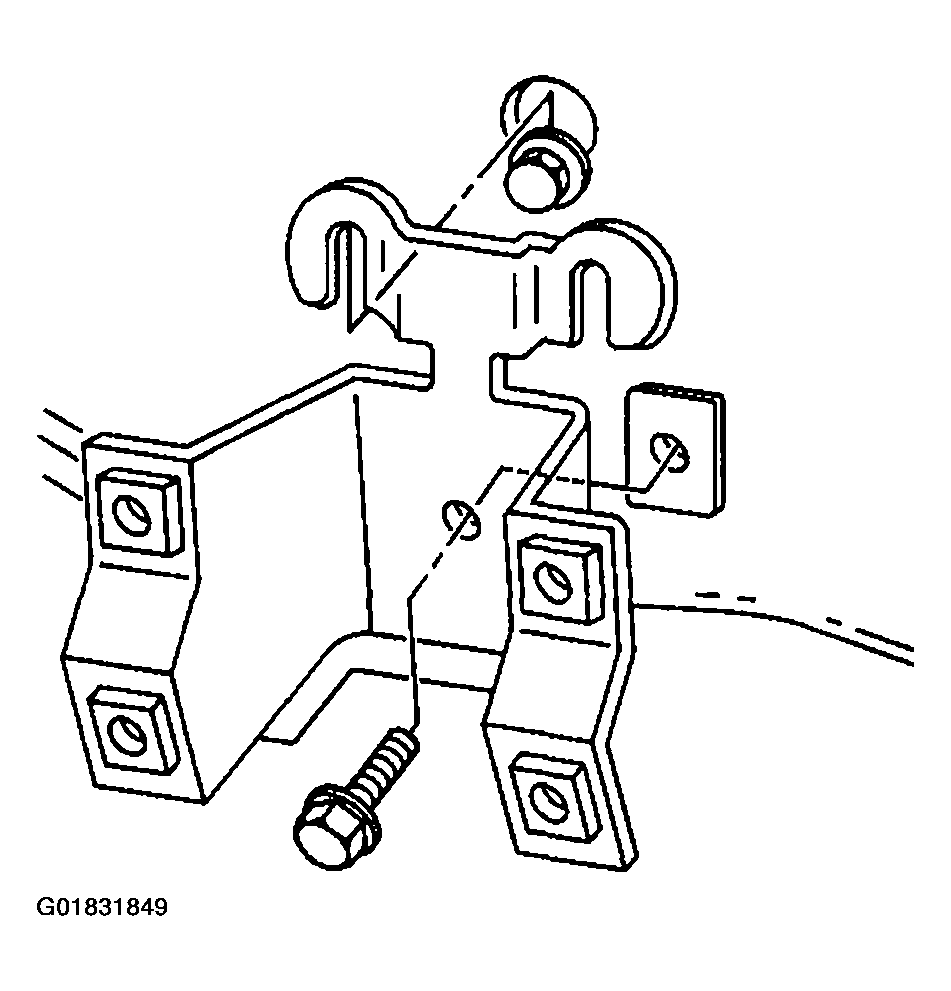

    Fig 1: Installing Armrest Bracket & Bolts
    G01831849Courtesy of GENERAL MOTORS CORP.
