Installation Procedure

  1. Install the front seat back frame to the seat back pad.
  2. Install the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  3. Install the seat back recliner. Refer to Seat Back Recliner Replacement - Front .

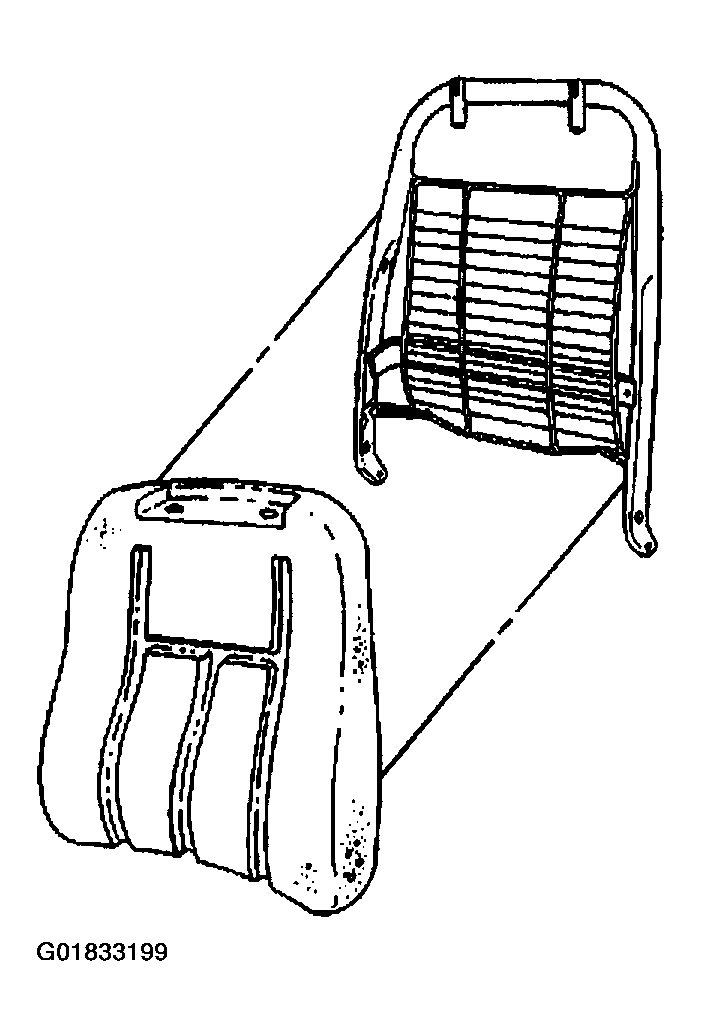

    Fig 1: Installing Front Seat Back Frame To Seat Back Pad
    G01833199Courtesy of GENERAL MOTORS CORP.
