Installation Procedure

  1. Position the lumbar control switch to the seat.
  2. Connect the electrical connector (1) to the seat harness.

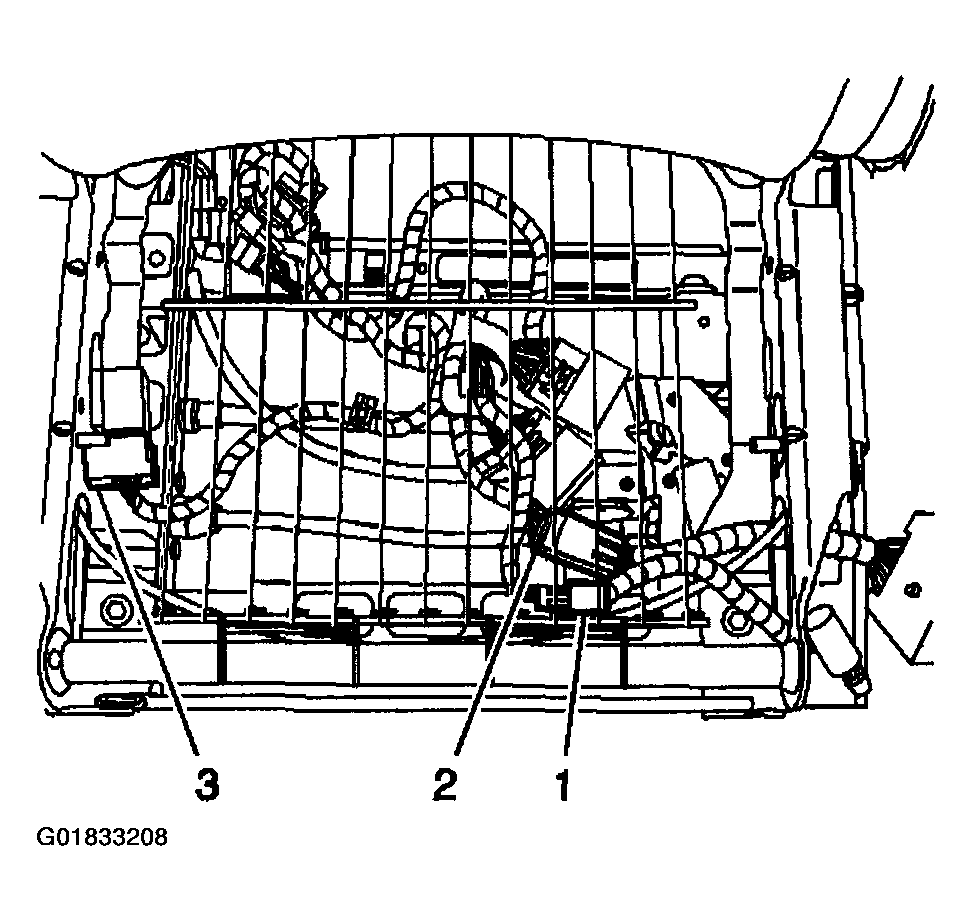

    Fig 1: Connecting Electrical Connector To Seat Harness
    G01833208Courtesy of GENERAL MOTORS CORP.
  3. Press the switch into the mount on the trim panel.
  4. Install the trim panel. Refer to Trim Panel Replacement - Front Seat .

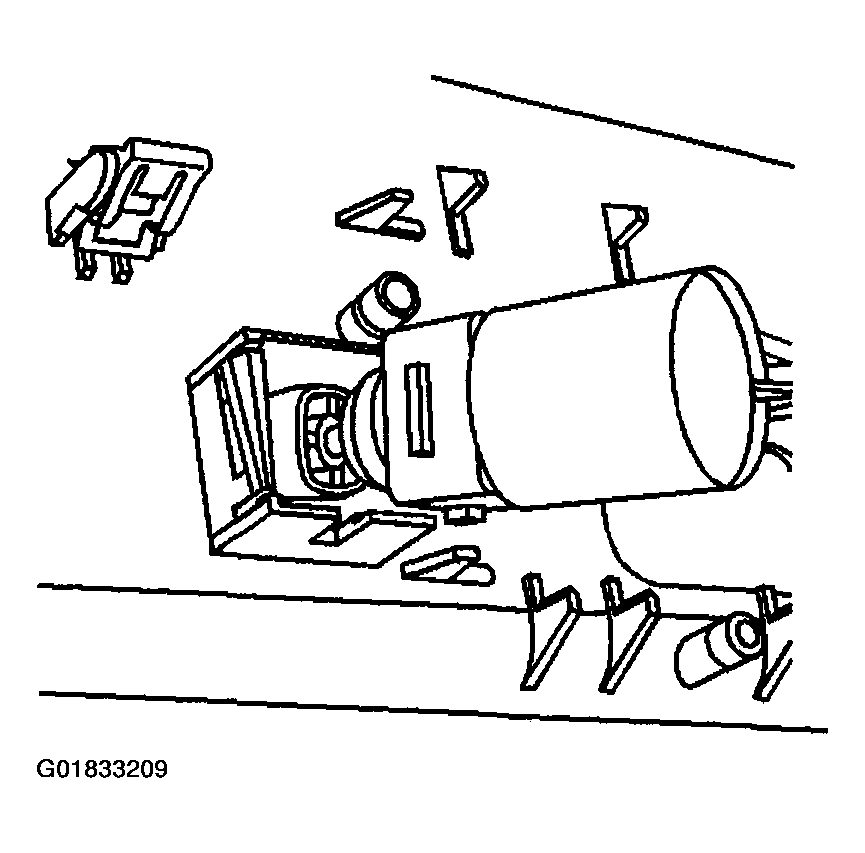

    Fig 2: Pressing Switch Into Mount On Trim Panel
    G01833209Courtesy of GENERAL MOTORS CORP.
