Power Seat Systems Component Views
Power Seat Systems Component Views

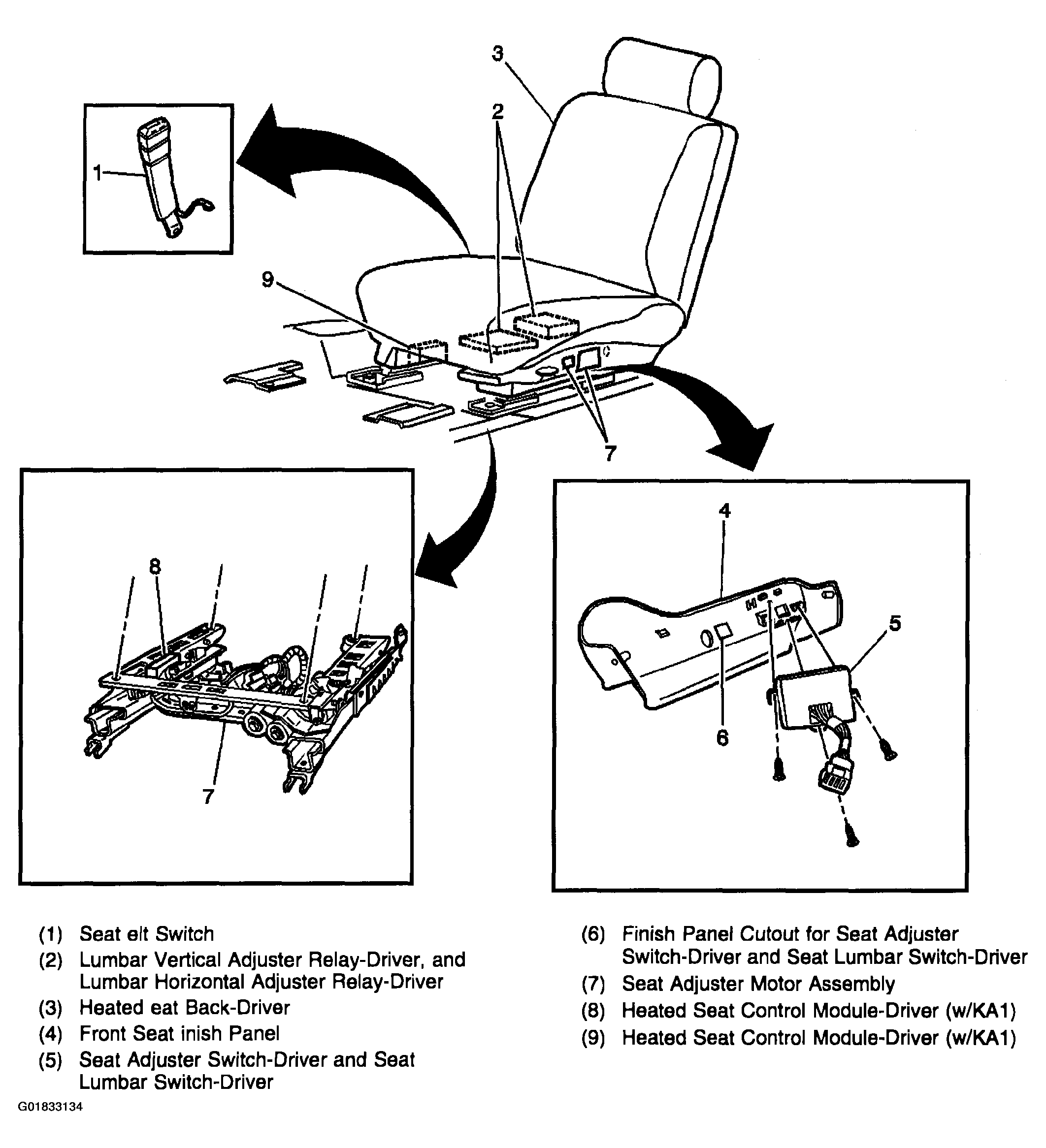

Fig 1: Power Seat Subsystem
Courtesy of GENERAL MOTORS CORP.

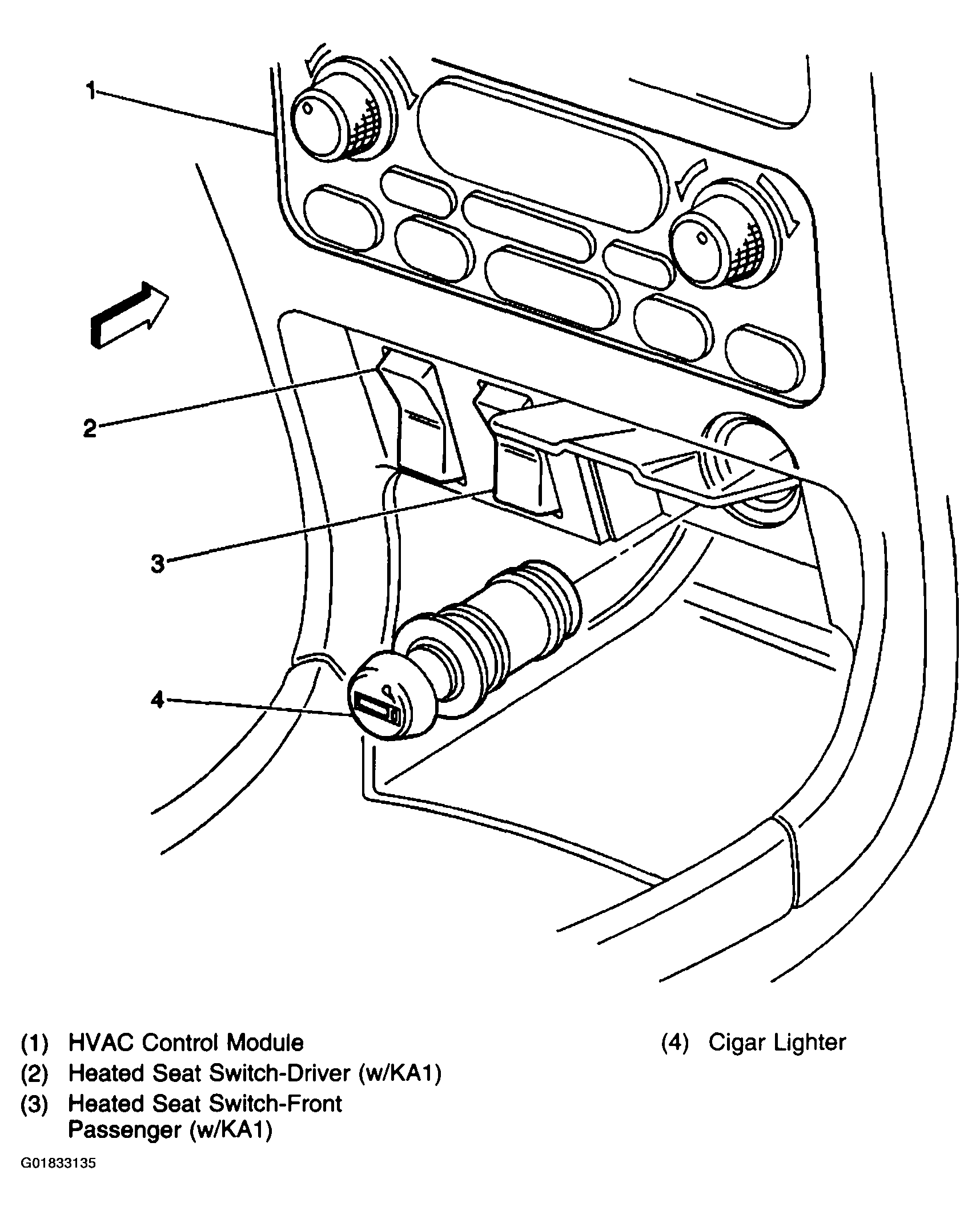

Fig 2: Lower Center of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
