Installation Procedure

  1. Clean the surface of the rear shelf in the (GPS) antenna mounting location, using an isopropyl alcohol pad and a clean lint-free cloth.

    Important:  Do not touch the adhesive backing.

  2. Remove the protective backing from the adhesive backing of the GPS antenna.
  3. Install the GPS antenna to the rear shelf surface.

    Press the GPS antenna into place until fully seated for approximately 30 seconds.

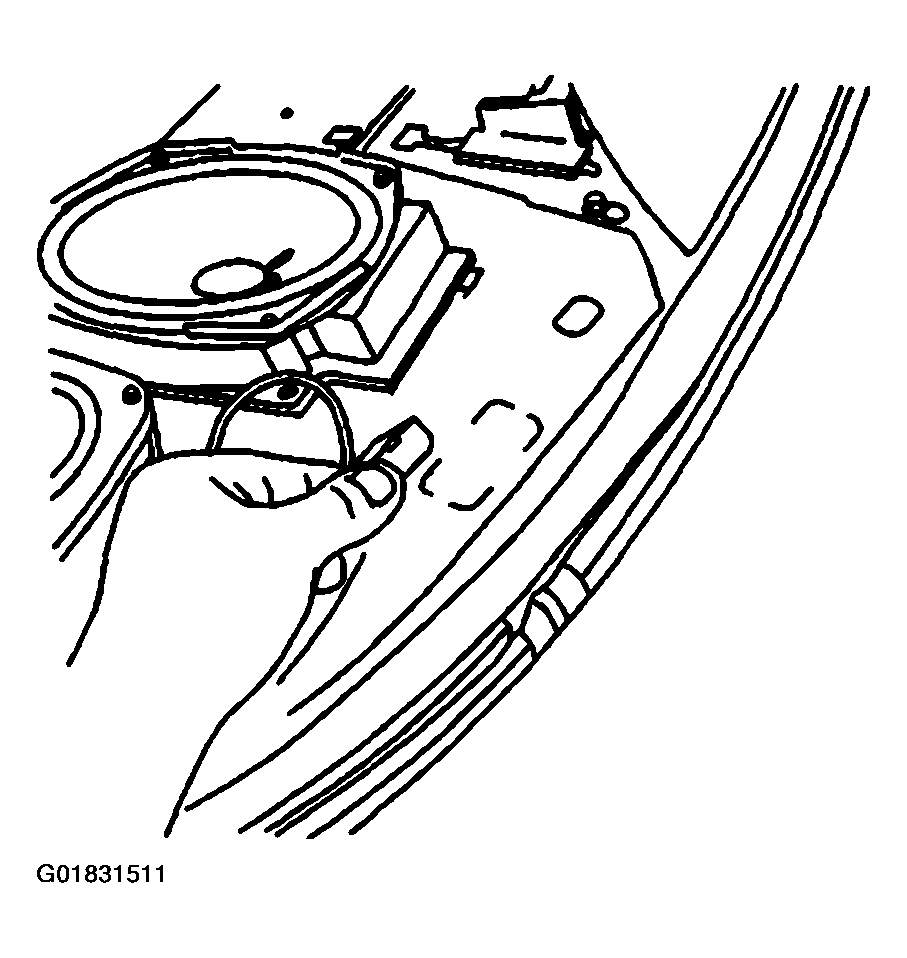

    Fig 1: Installing GPS Antenna To Rear Shelf Surface
    G01831511Courtesy of GENERAL MOTORS CORP.
  4. Connect the GPS antenna cable connector.
  5. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF

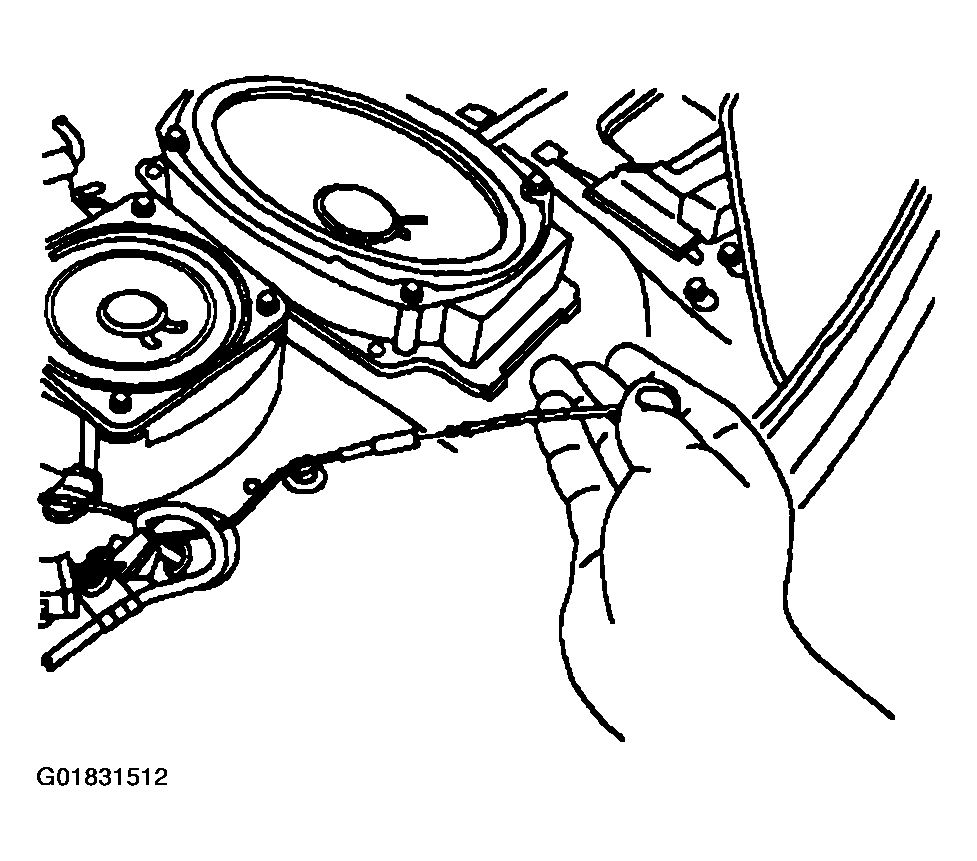

    Fig 2: Installing GPS Antenna Cable Connector & Rear Shelf Trim Panel
    G01831512Courtesy of GENERAL MOTORS CORP.
