Turn Signal and Multifunction Switch Assembly - Disassemble - Off Vehicle

CAUTION: Refer to SIR CAUTION

Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM in SIR.
Remove the upper and lower trim covers. Refer to Steering Column Trim Covers -Disassemble - Off Vehicle
Remove the wire harness straps (2) from the wire harness assembly.
Remove the wire harness strap (2) from the upper tilt head assembly (1).

Fig 1: Wire Harness Strap Removed From Upper Tilt Head Assembly
Courtesy of GENERAL MOTORS CORP.
Pop the wire harness assembly (1) from the wire harness strap (2).

Fig 2: Wire Harness Assembly Removed From Wire Harness Strap
Courtesy of GENERAL MOTORS CORP.
Remove the 2 tapping screws (1).

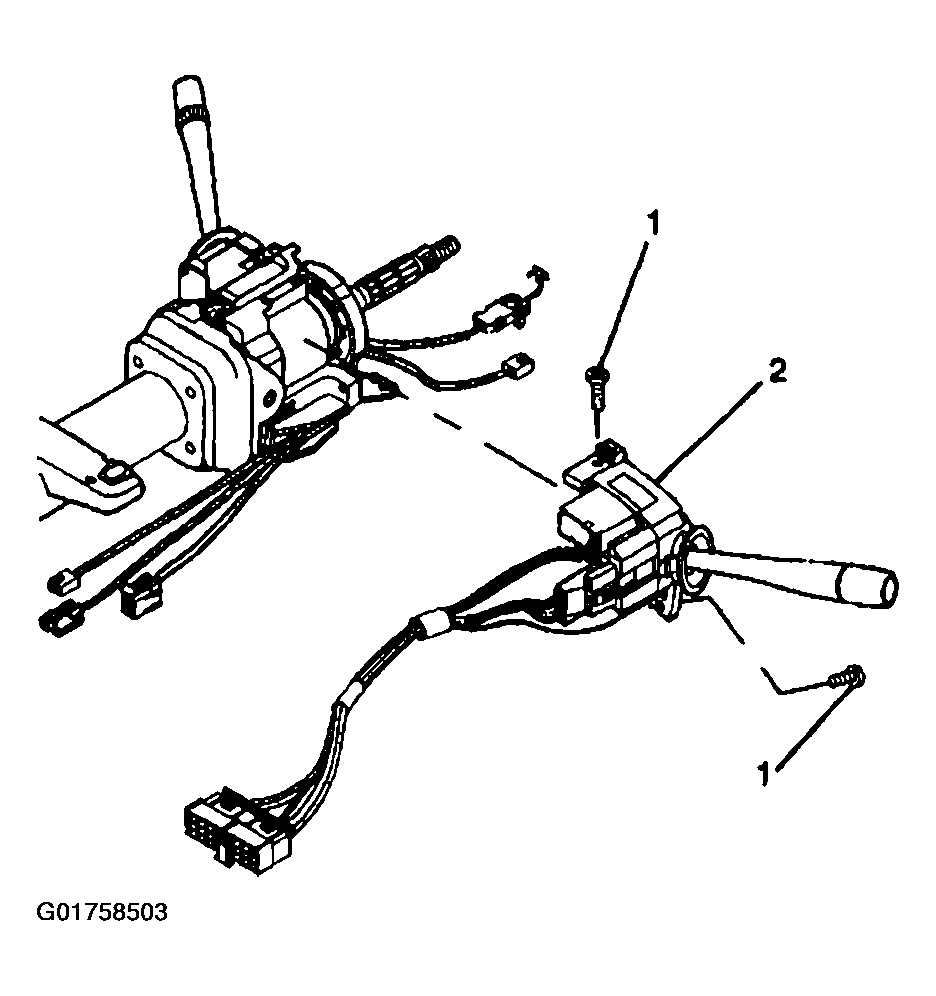

Fig 3: Turn Signal, Multifunction Switch Assembly And Tapping Screws Removed
Courtesy of GENERAL MOTORS CORP.

Remove the turn signal and multifunction switch assembly (2).
