Turn Signal and Multifunction Switch Assembly - Assemble - Off Vehicle

NOTE: Refer to FASTENER NOTICE
  1. Install the turn signal and multifunction switch assembly (2) and secure by using 2 pan head tapping screws (1).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

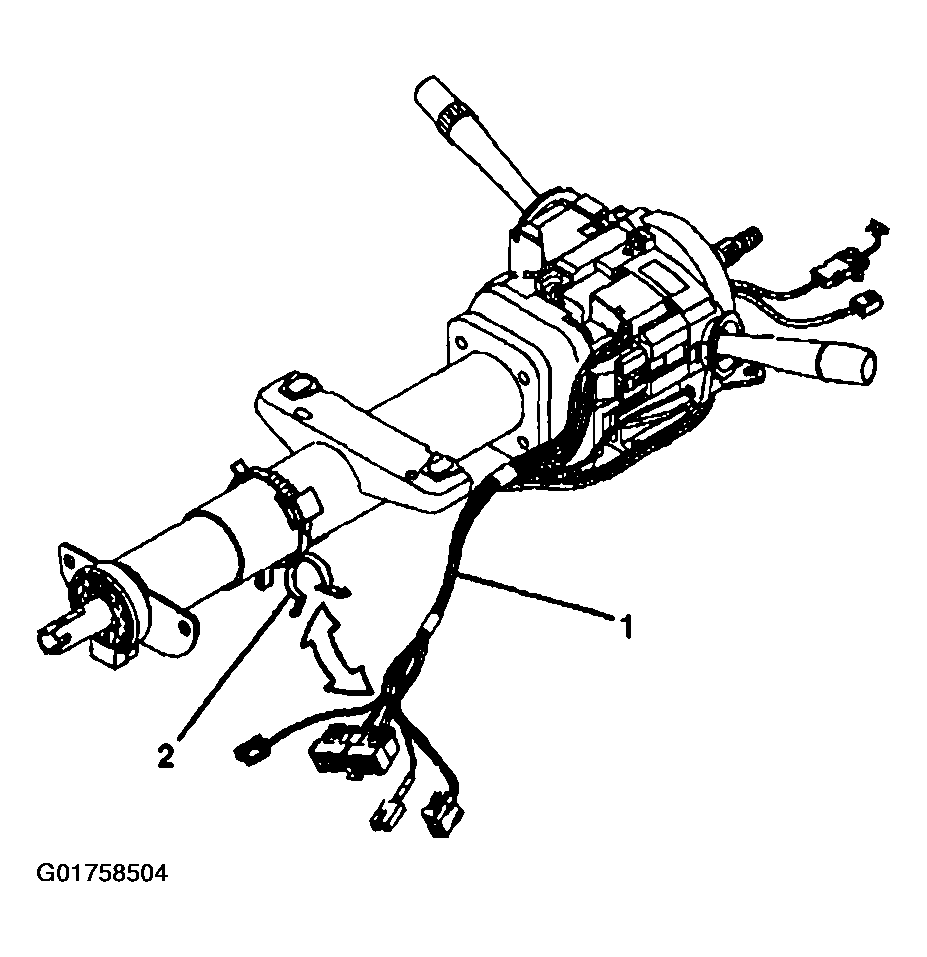

    Fig 1: Installing Turn Signal, Multifunction Switch Assembly And Pan Head Tapping Screws
    G01758504Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION
  2. Route the wire harness assembly (1) along the steering column jacket assembly.
  3. Insert the wire harness assembly (1) firmly into the wire harness strap (2).

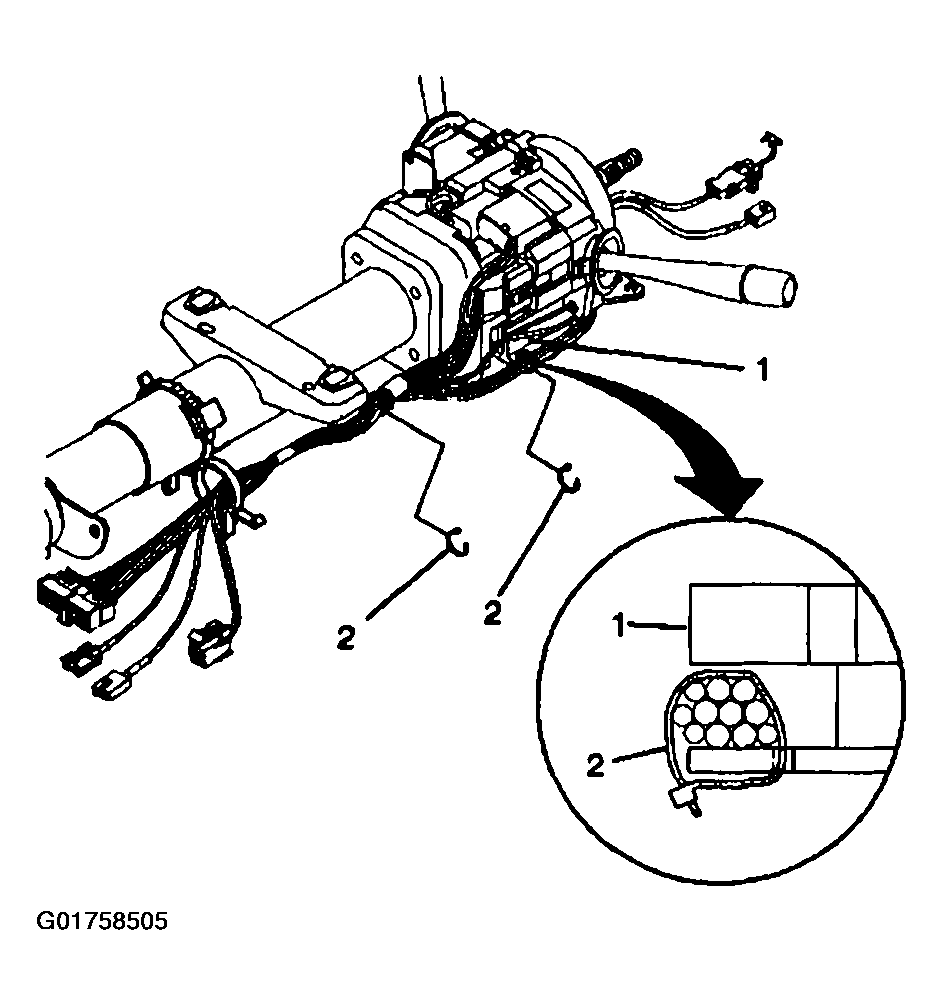

    Fig 2: Installing Wire Harness Assembly Firmly Into Wire Harness Strap
    G01758505Courtesy of GENERAL MOTORS CORP.
  4. Install the wire harness straps (2) to the upper tilt head assembly (1).

    Install the wire harness strap (2) onto the wire harness assembly.

  5. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle
  6. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM in SIR.

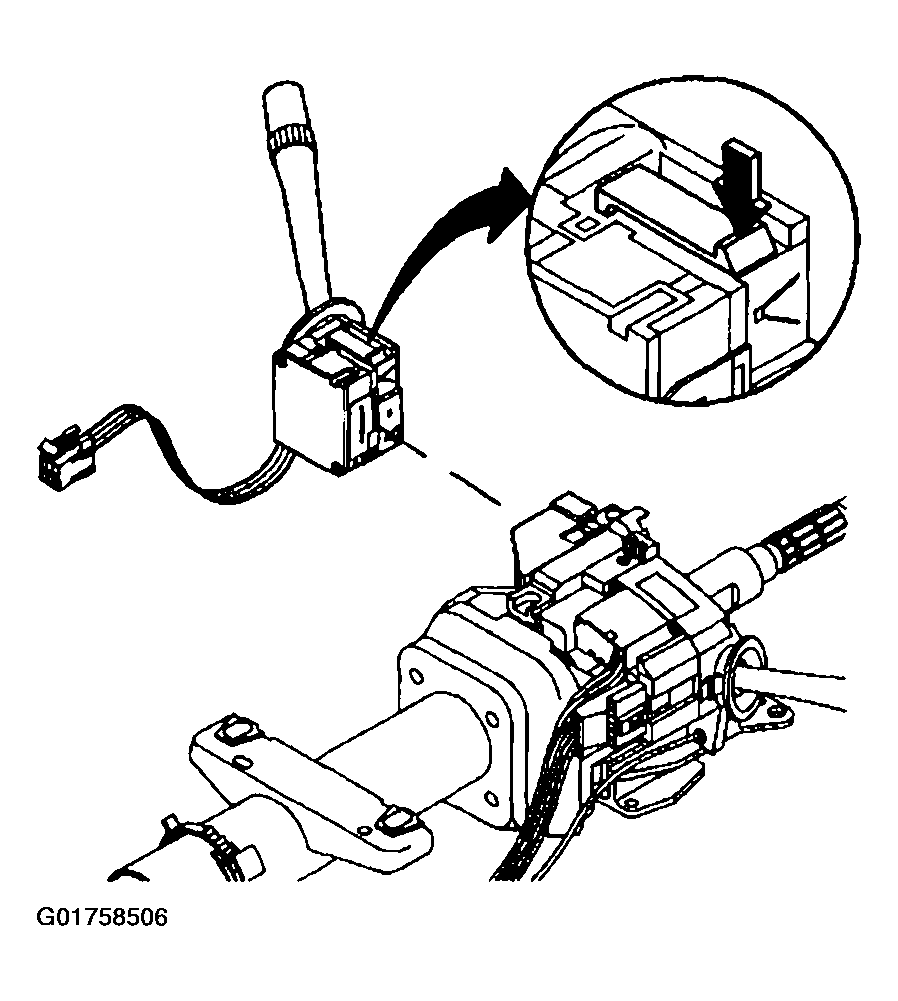

    Fig 3: Removing Windshield Wiper And Washer Switch Assembly
    G01758506Courtesy of GENERAL MOTORS CORP.
