Steering Column Tilt Function Inoperative

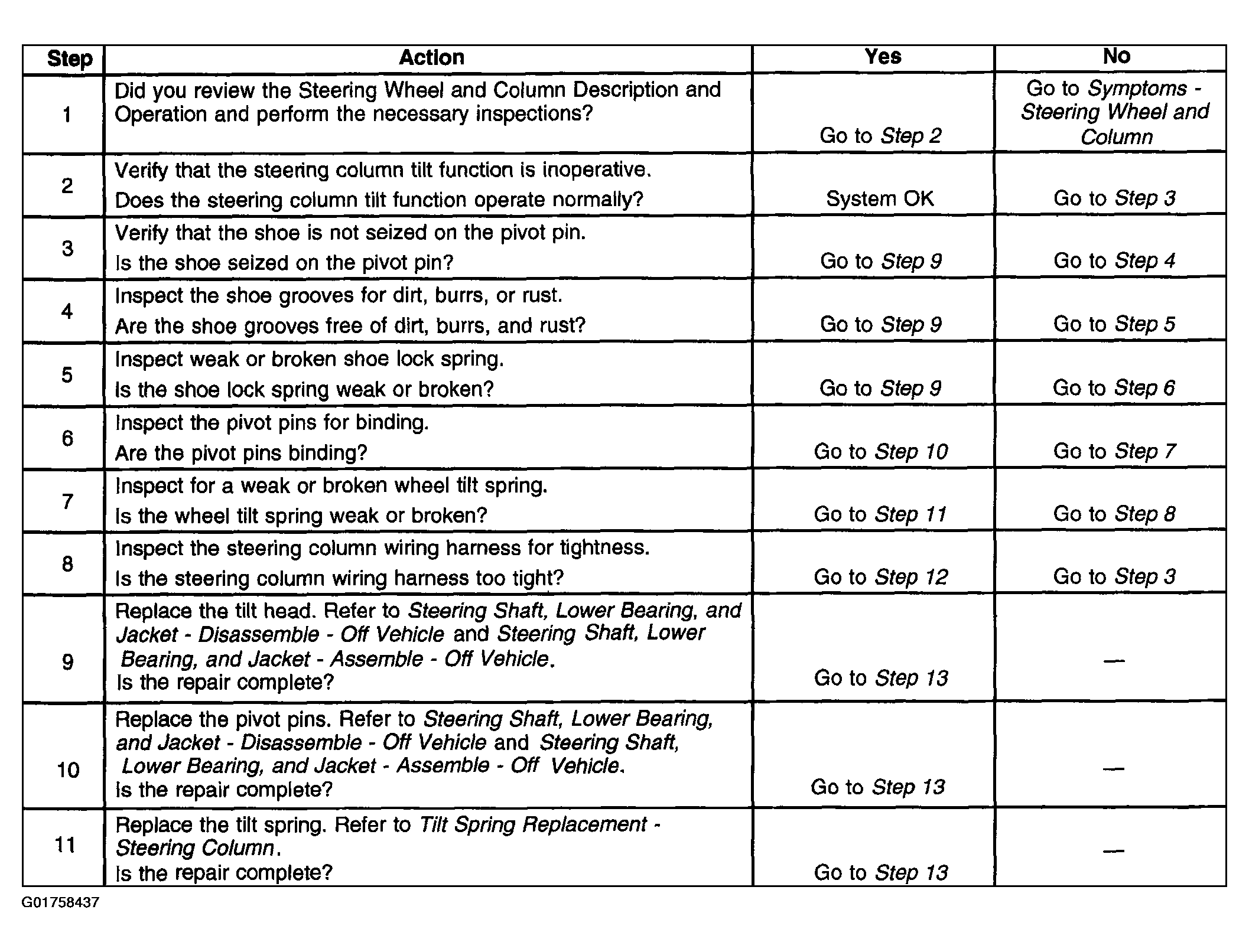

Fig 1: Steering Column Tilt Function Inoperative (1 Of 2)
G01758437Courtesy of GENERAL MOTORS CORP.

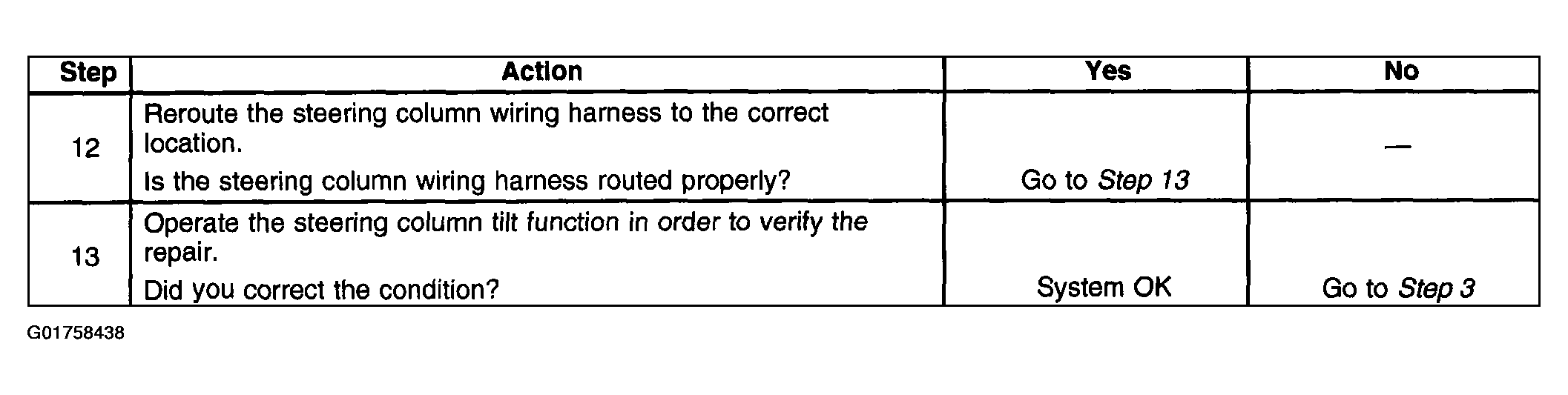

Fig 2: Steering Column Tilt Function Inoperative (2 Of 2)
G01758438Courtesy of GENERAL MOTORS CORP.
