Home >> Oldsmobile >> 2002 >> Intrigue GL >> Repair and Diagnosis (Single Page) >> Steering >> Electronic Steering >> Electronic Steering System - Variable Effort Steering >> Component Locator >> Steering Controls Connector End Views

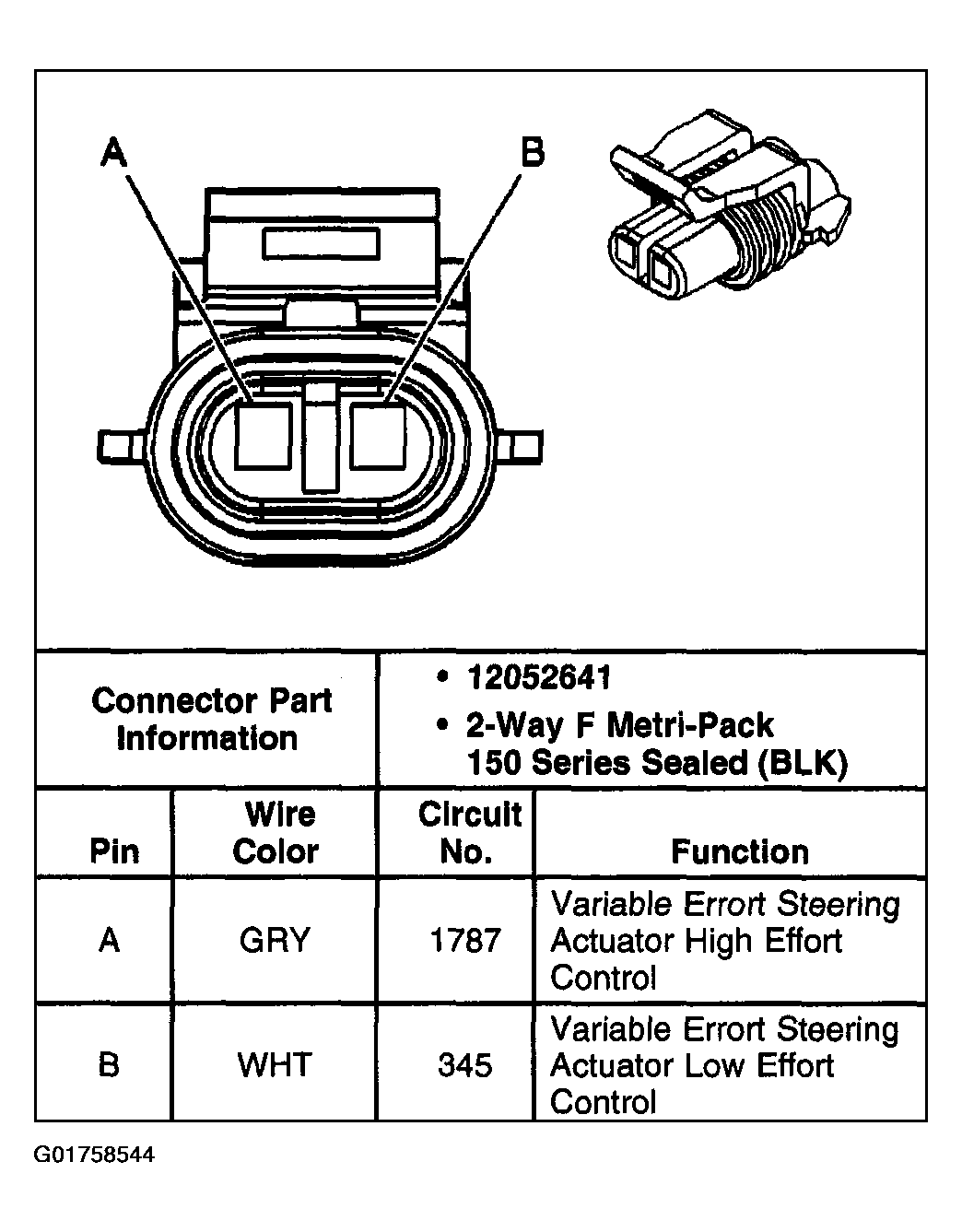

Steering Controls Connector End Views

Fig 1: Magnasteer Actuator

G01758544

Courtesy of GENERAL MOTORS CORP.
