Home >> Oldsmobile >> 2002 >> Intrigue GL >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Traction Control Switch Connector End View

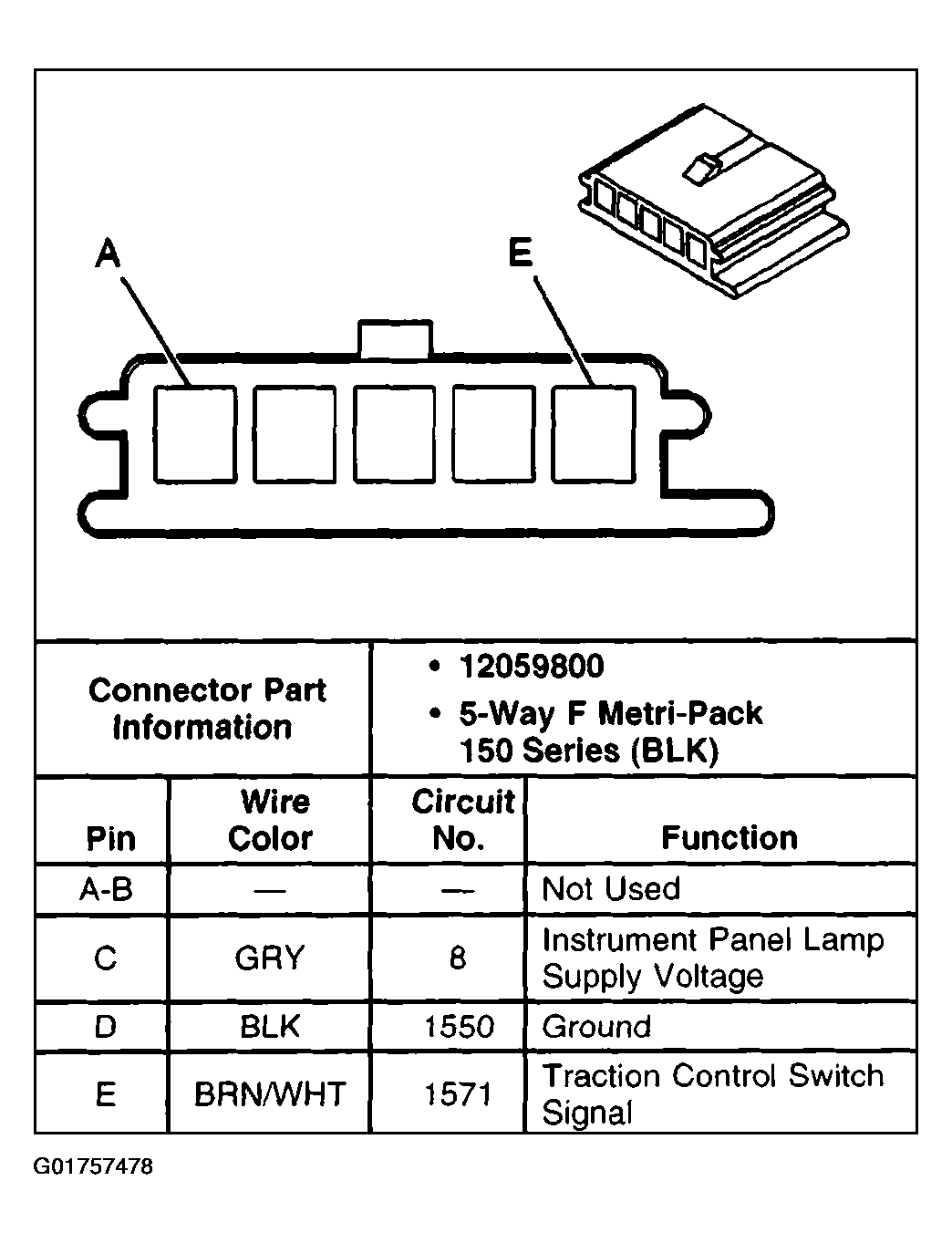

Traction Control Switch Connector End View

Fig 1: Traction Control Switch

G01757478

Courtesy of GENERAL MOTORS CORP.
