TP Sensor Connector End View (Intrigue)

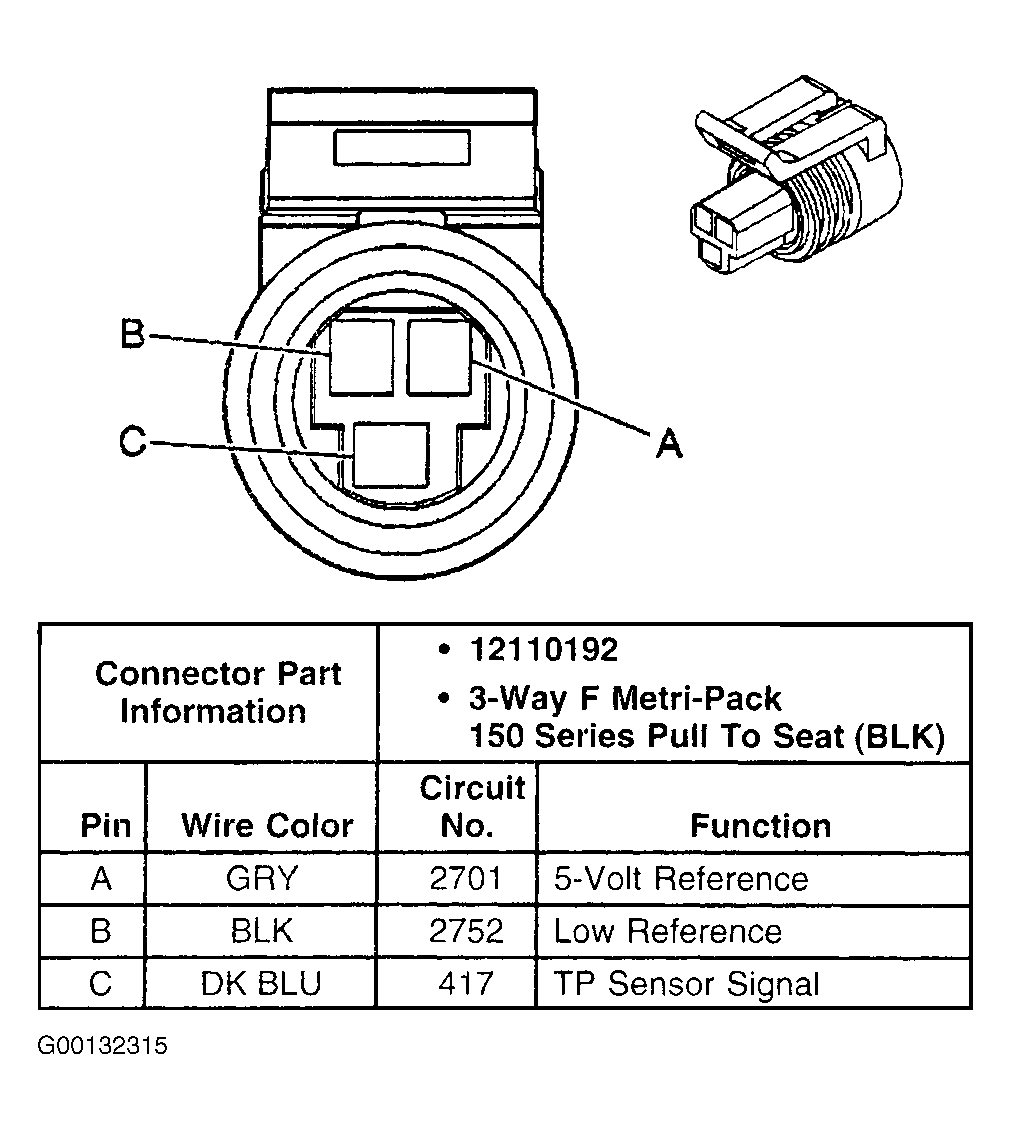

Fig 1: TP Sensor (Intrigue)

G00132315

Courtesy of GENERAL MOTORS CORP.
