Sunroof Module Connector End View C2

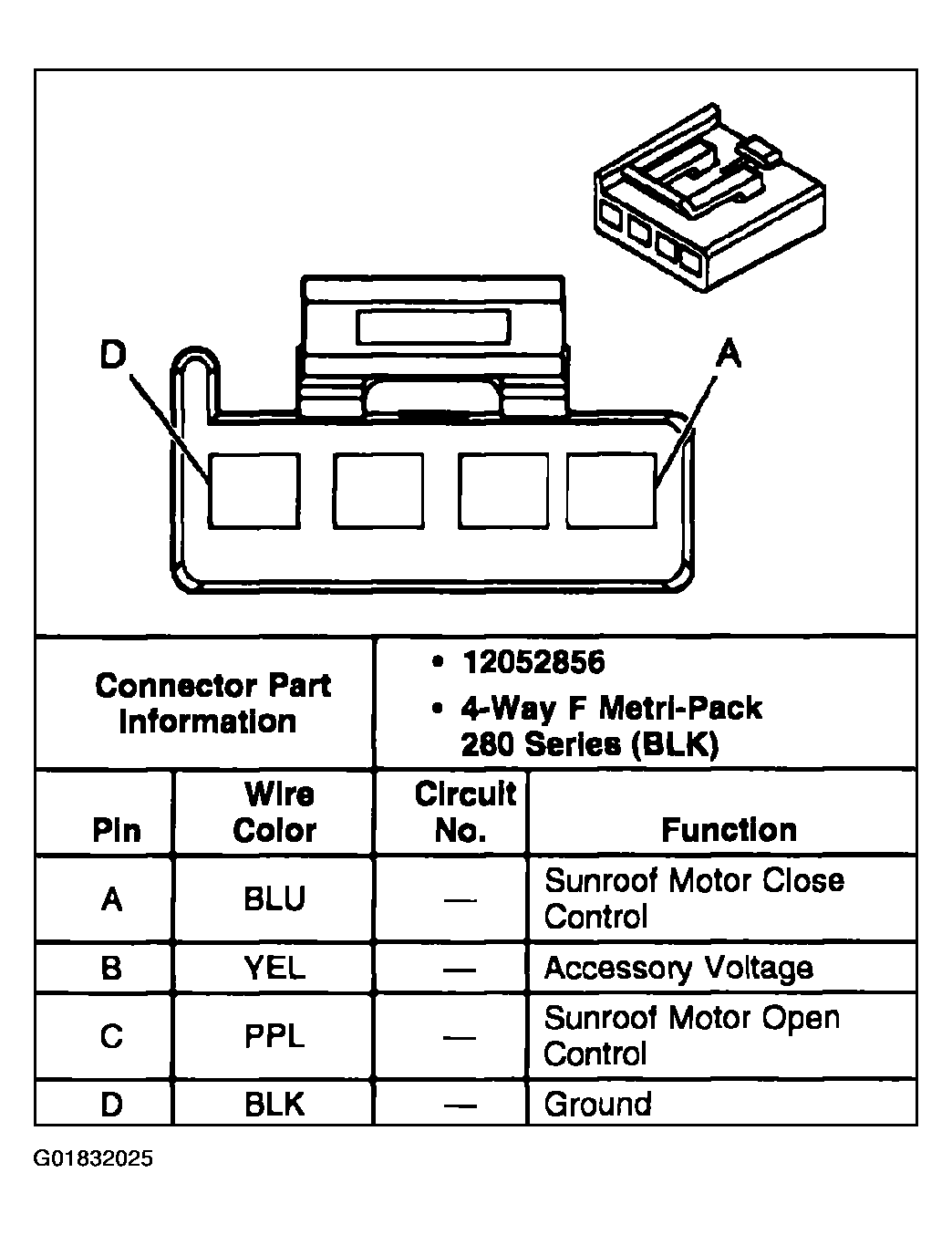

Fig 1: Sunroof Module C2

G01832025

Courtesy of GENERAL MOTORS CORP.
