Seat Horizontal Motor Connector End View - Driver

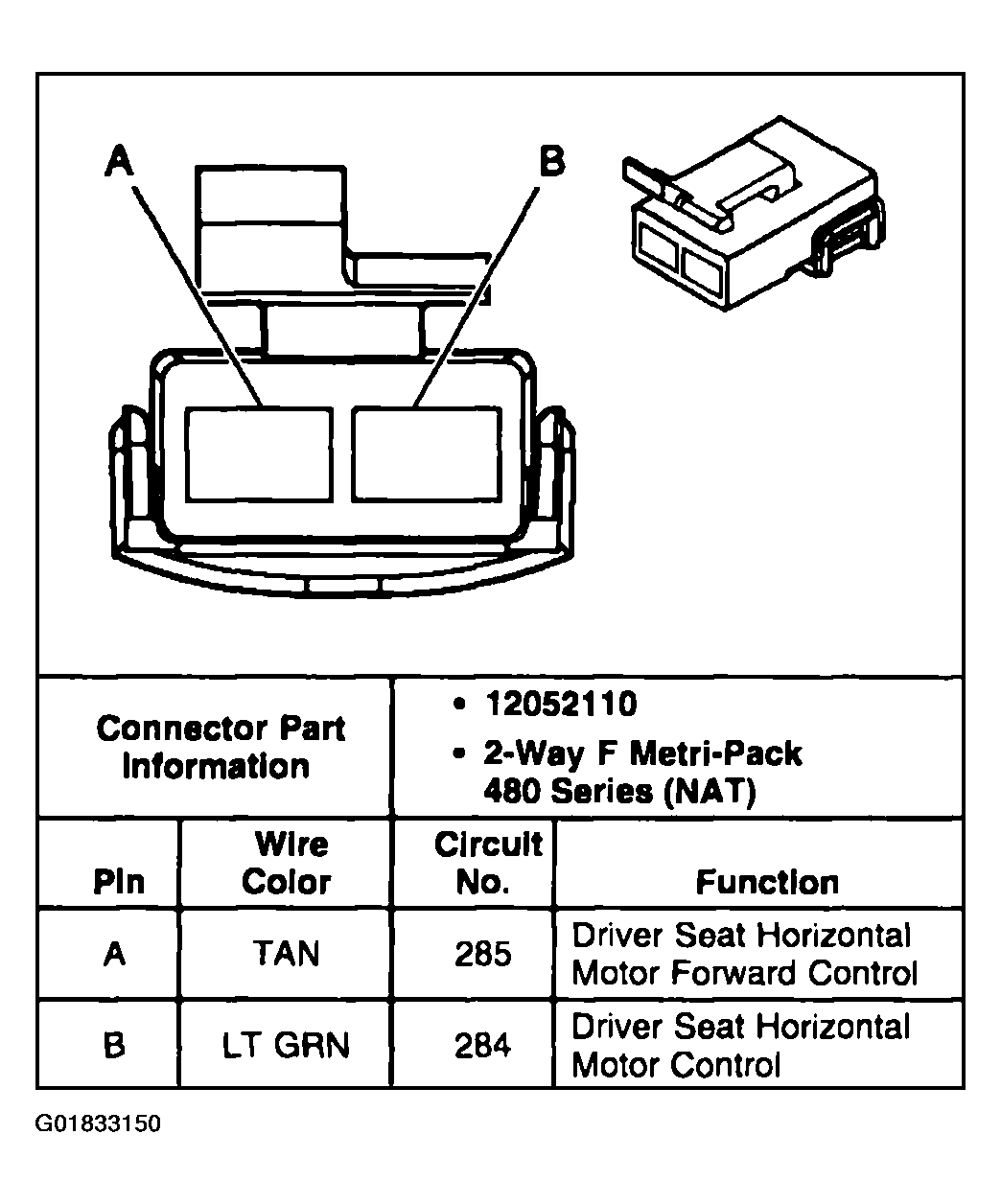

Fig 1: Seat Horizontal Motor - Driver

G01833150

Courtesy of GENERAL MOTORS CORP.
