OnStar Module Connector End View C1

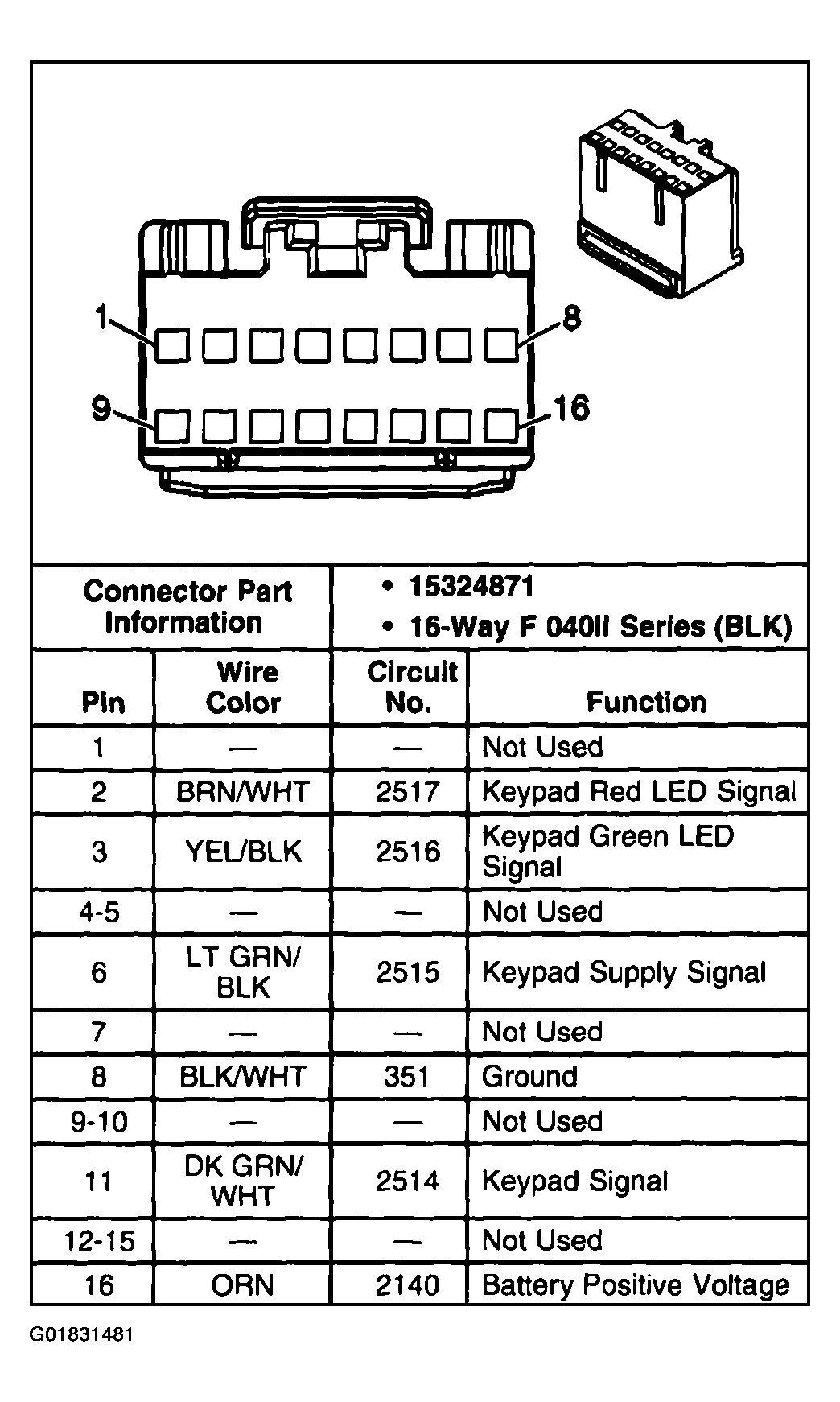

Fig 1: OnStar Module C1

G01831481

Courtesy of GENERAL MOTORS CORP.
