MAP Sensor Connector End View (Intrigue)

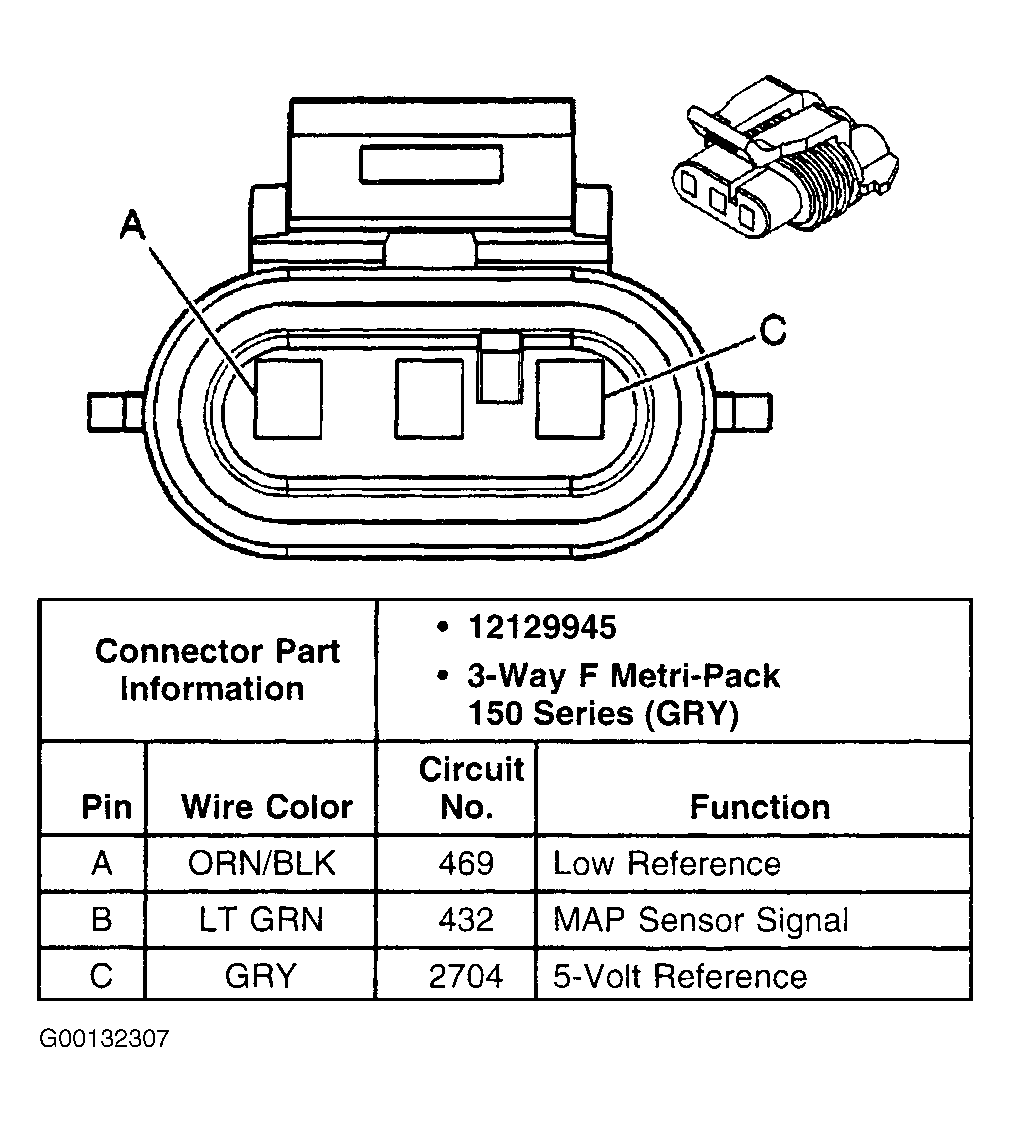

Fig 1: MAP Sensor (Intrigue)

G00132307

Courtesy of GENERAL MOTORS CORP.
