Input Speed Sensor Connector End View (Harness Side)

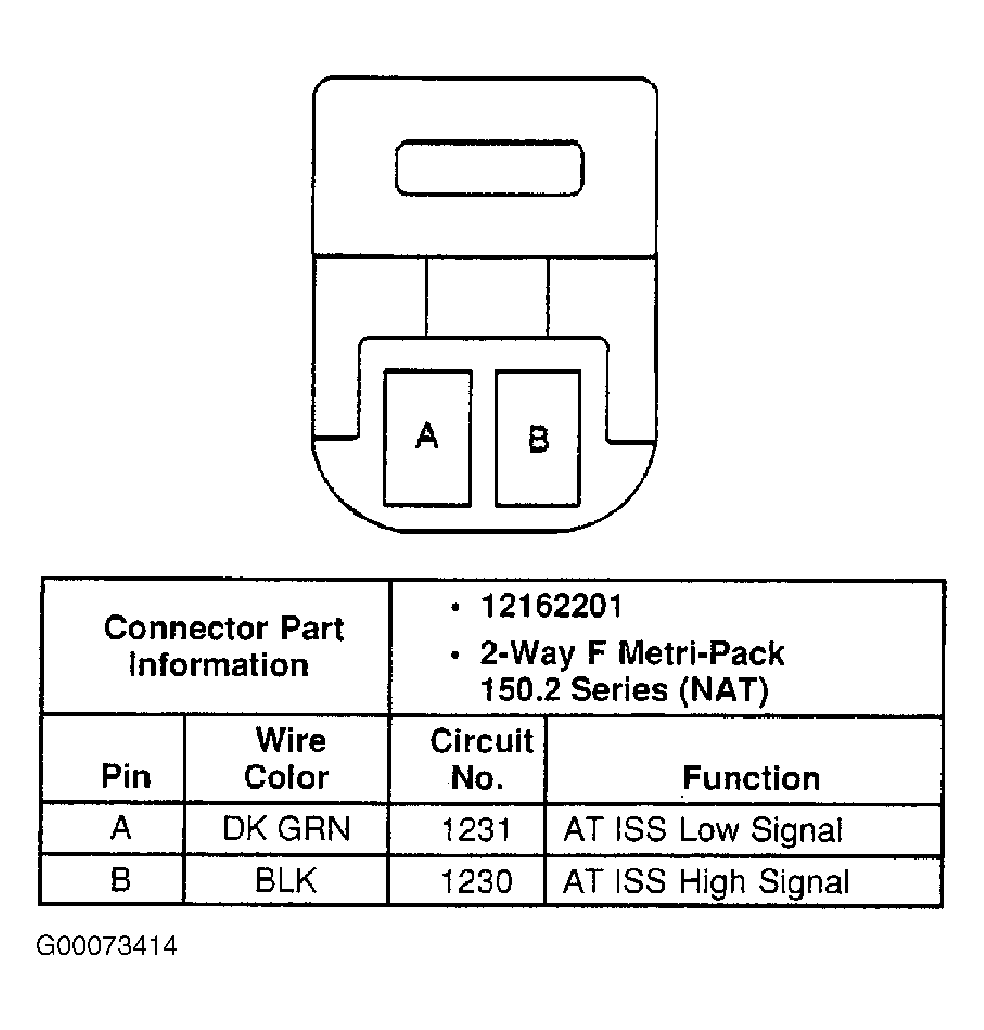

Fig 1: Input Speed Sensor (Harness Side)

G00073414

Courtesy of GENERAL MOTORS CORP.
