Heated Seat Control Module Connector End View - Front Passenger C2

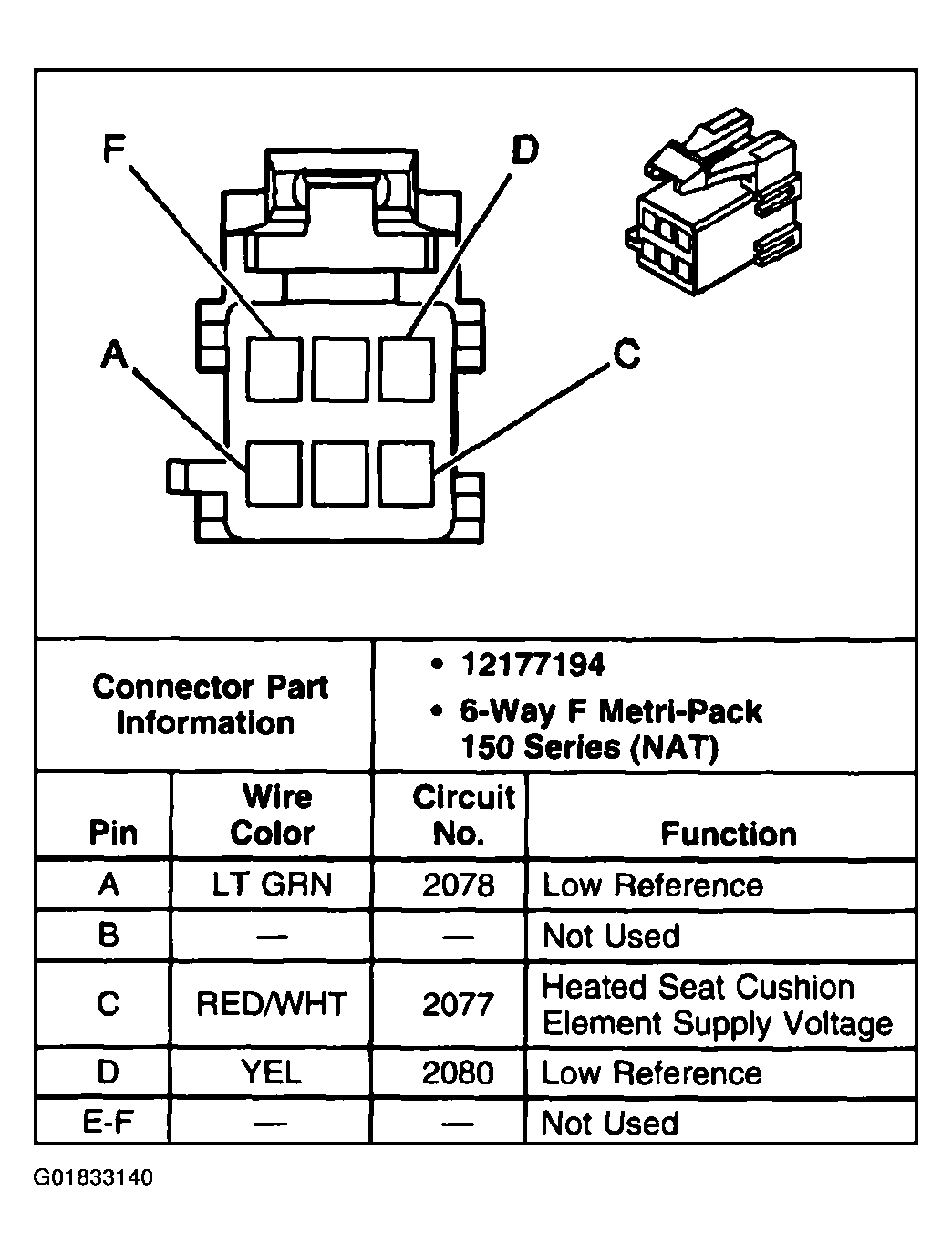

Fig 1: Heated Seat Control Module - Front Passenger C2
G01833140Courtesy of GENERAL MOTORS CORP.
