Heated Seat Control Module Connector End View - Front Passenger C1 (2 Of 2)

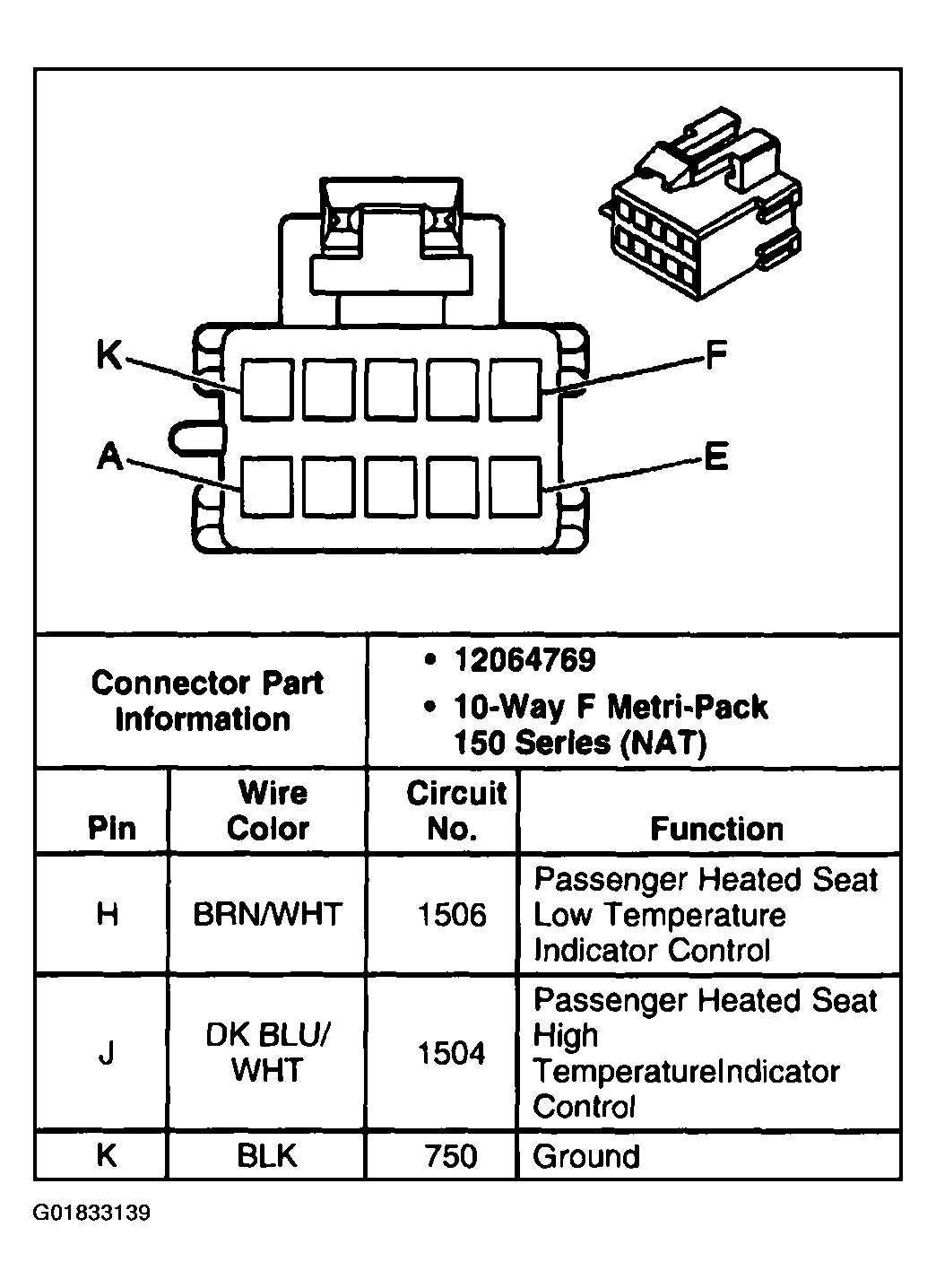

Fig 1: Heated Seat Control Module - Front Passenger C1 (2 Of 2)
G01833139Courtesy of GENERAL MOTORS CORP.
