Heated Seat Control Module Connector End View - Driver C2

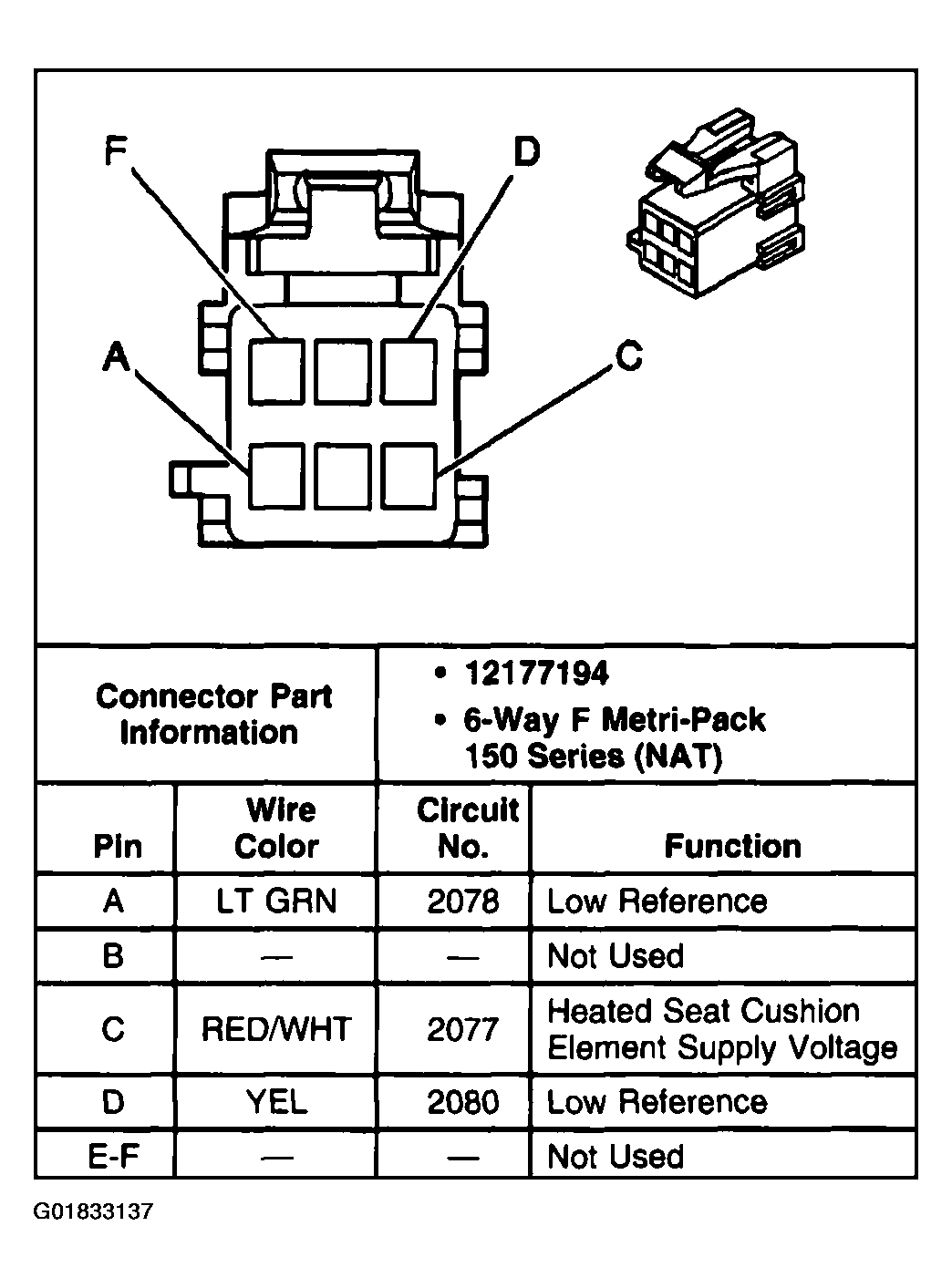

Fig 1: Heated Seat Control Module - Driver C2

G01833137

Courtesy of GENERAL MOTORS CORP.
