Heated Seat Control Module Connector End View - Driver C1

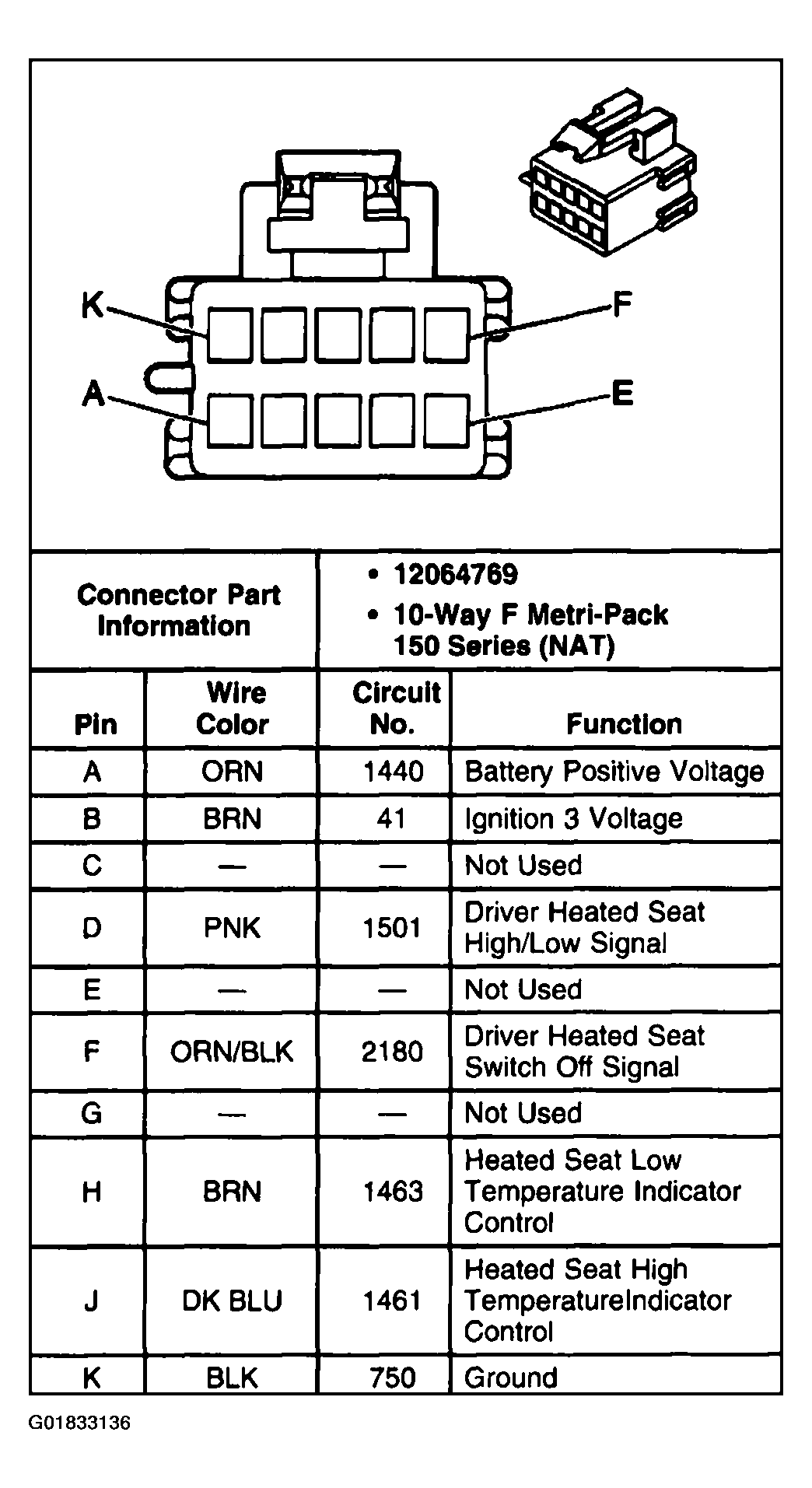

Fig 1: Heated Seat Control Module - Driver C1

G01833136

Courtesy of GENERAL MOTORS CORP.
