HVAC Control Assembly Connector End View (C1)

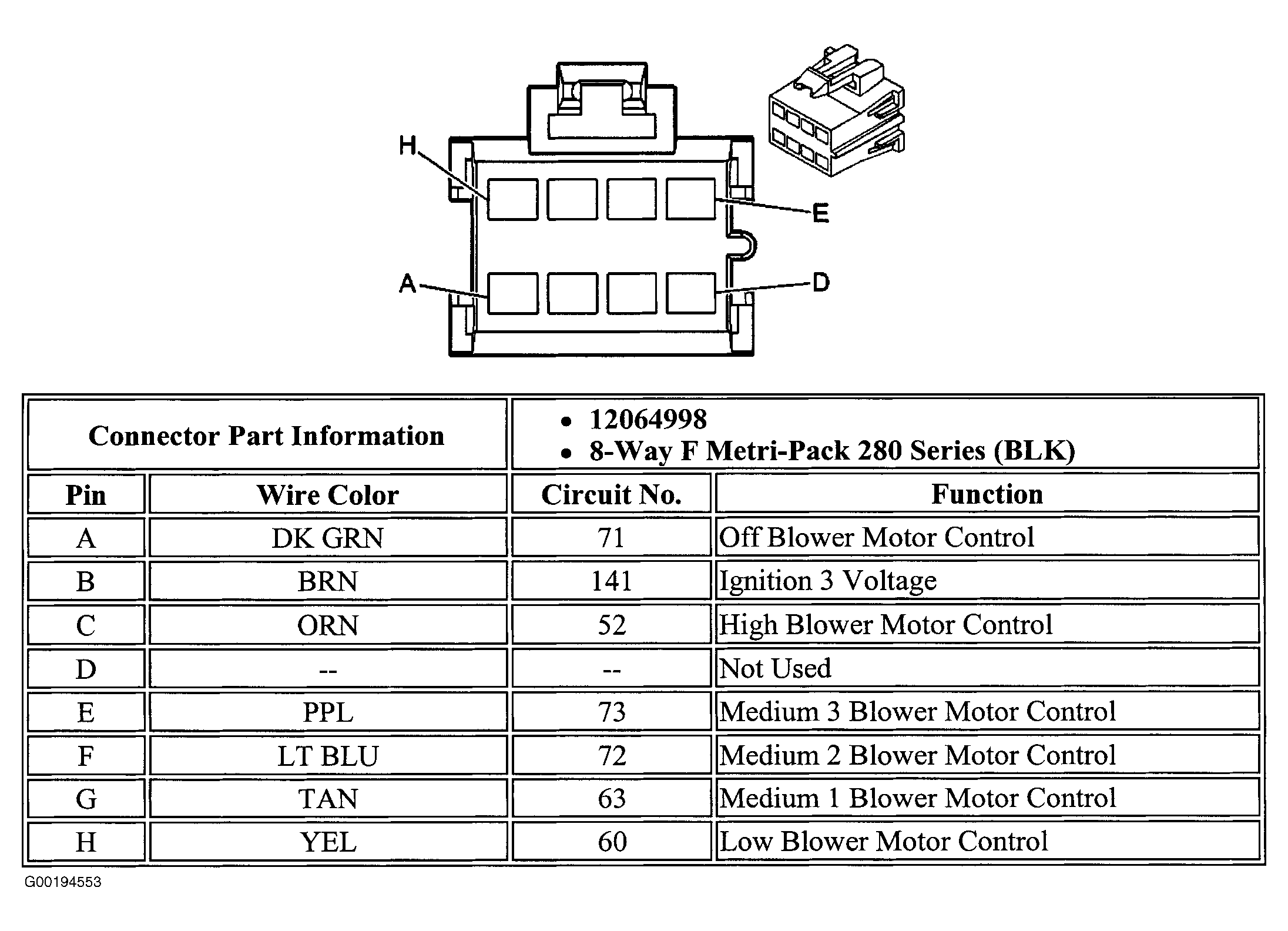

Fig 1: HVAC Control Assembly (C1)
G00194553Courtesy of GENERAL MOTORS CORP.

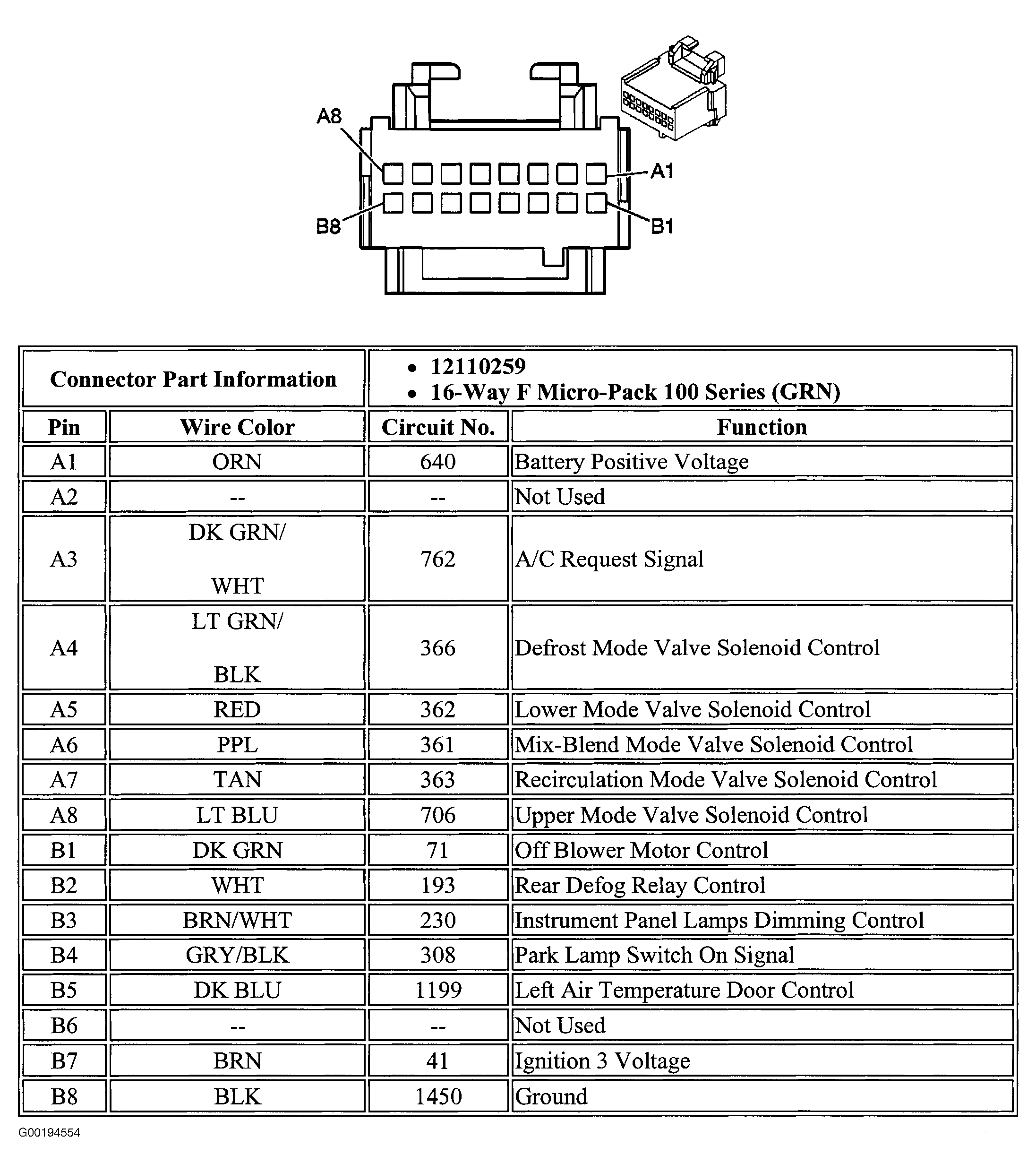

Fig 1: HVAC Control Assembly (C1)
G00194554Courtesy of GENERAL MOTORS CORP.
