Fuel Pump & Sender Assembly Connector End View (Intrigue)

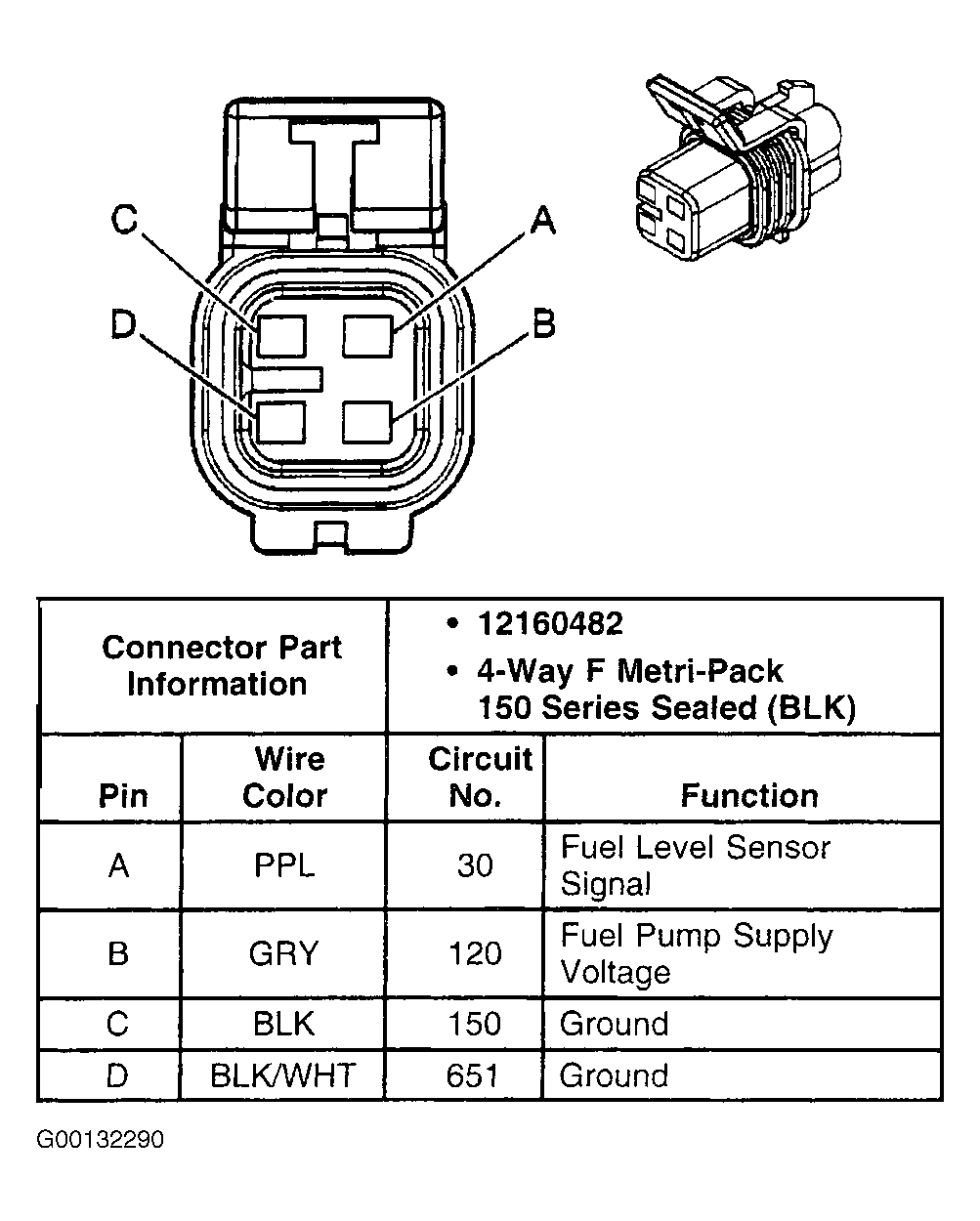

Fig 1: Fuel Pump & Sender Assembly (Intrigue)

G00132290

Courtesy of GENERAL MOTORS CORP.
