Engine Verification Label

The engine verification label is placed in two locations on the right side of the engine.

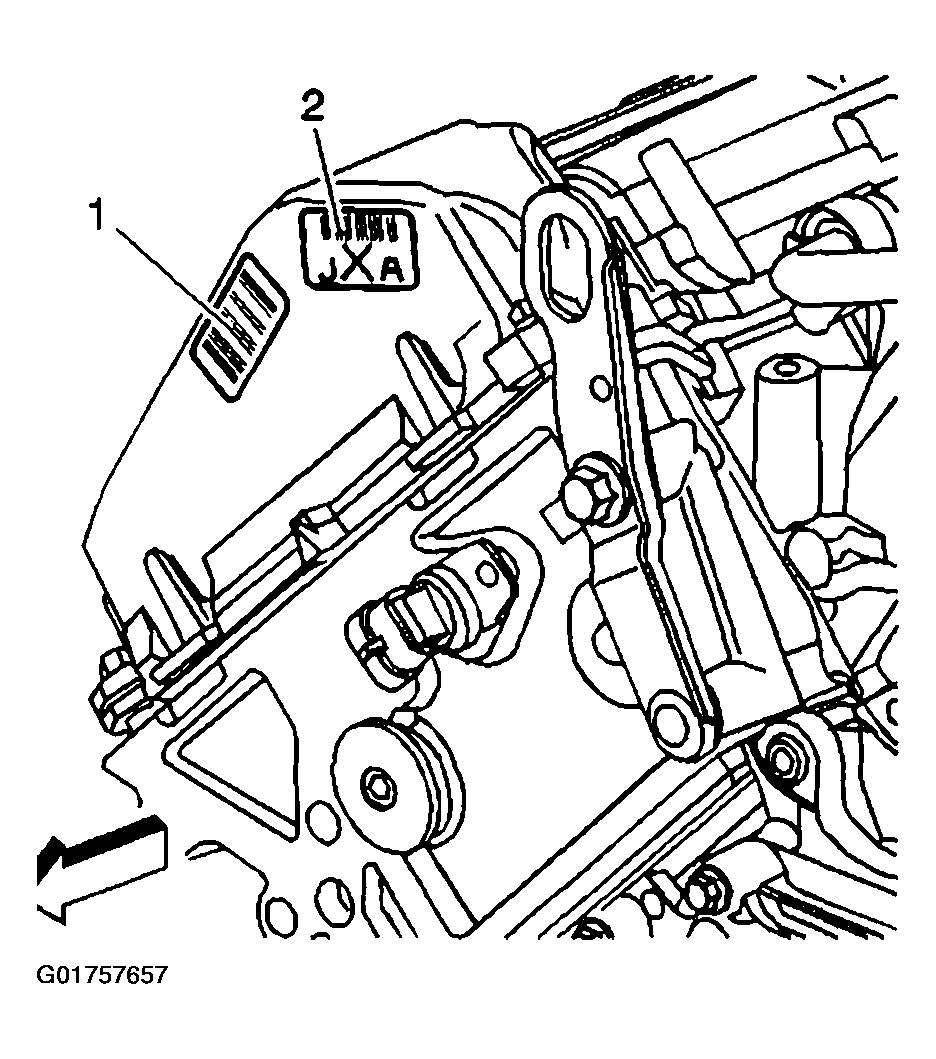

Fig 1: Traceability Label And Engine Verification Label (Front/Right Camshaft Cover)
G01757657

The front of the right camshaft cover has a traceability label (1) and an engine verification label (2).

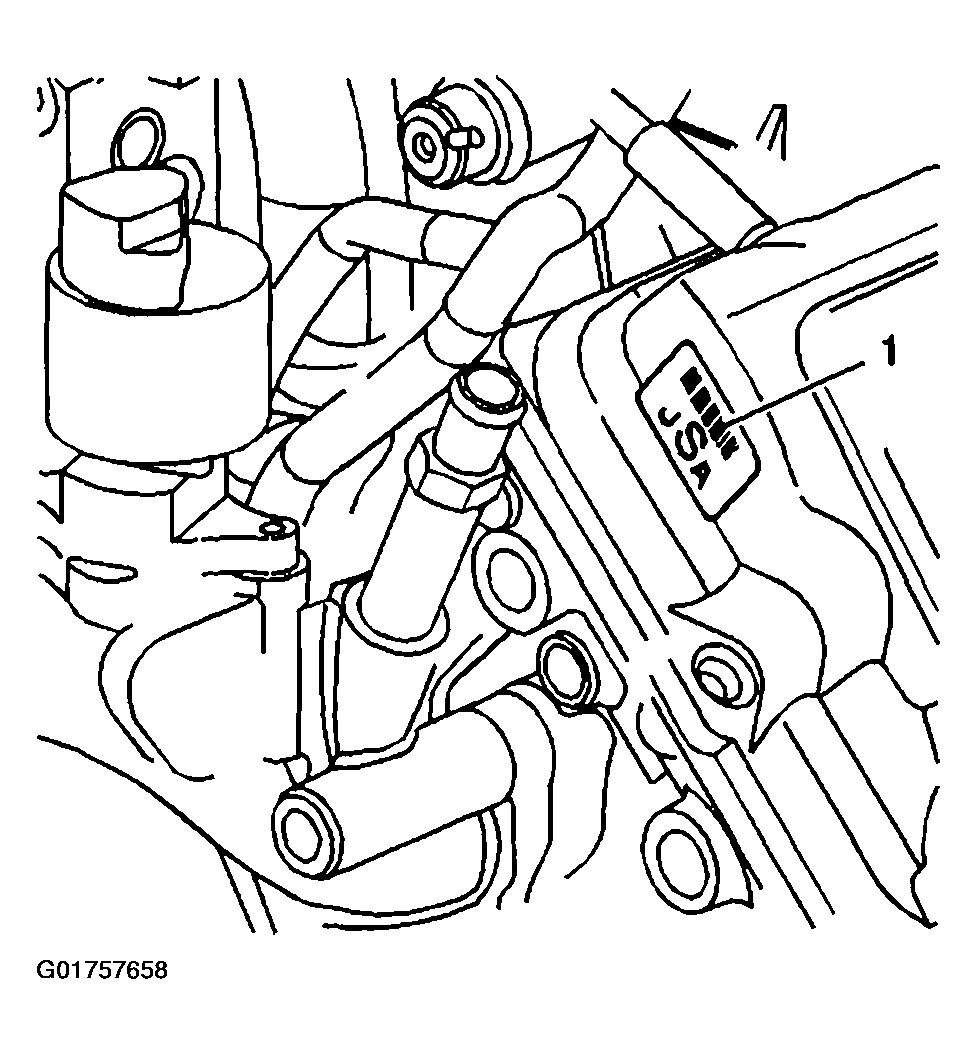

Fig 2: Engine Verification Label (Rear/Right Camshaft Cover)
G01757658

The rear of the right camshaft cover has an engine verification label (1).
