Lumbar Horizontal Adjuster Relay Connector End View - Driver

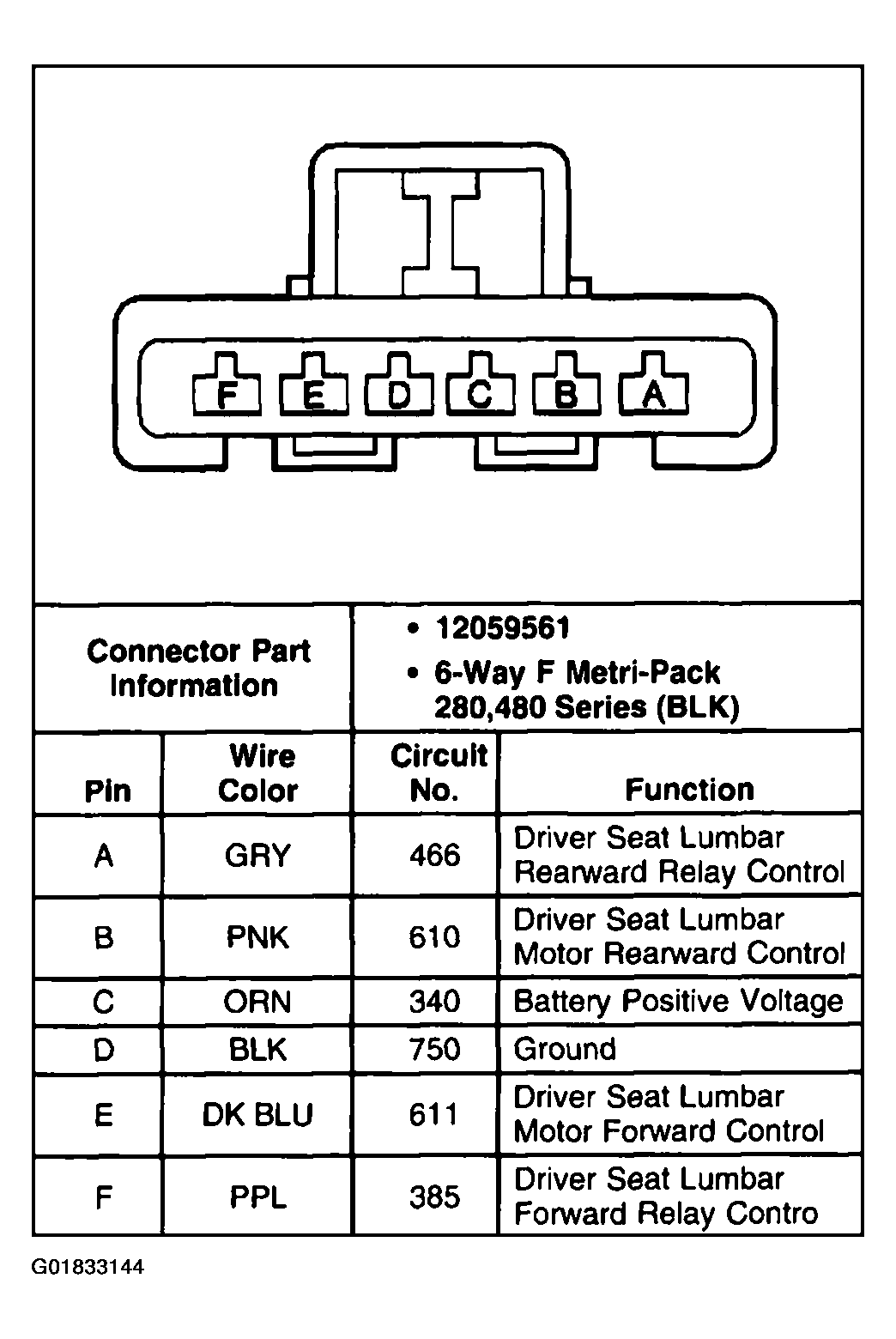

Fig 1: Lumbar Horizontal Adjuster Relay - Driver

G01833144

Courtesy of GENERAL MOTORS CORP.
