Ignition Control Module Connector End View - Bank 1 (Aurora)

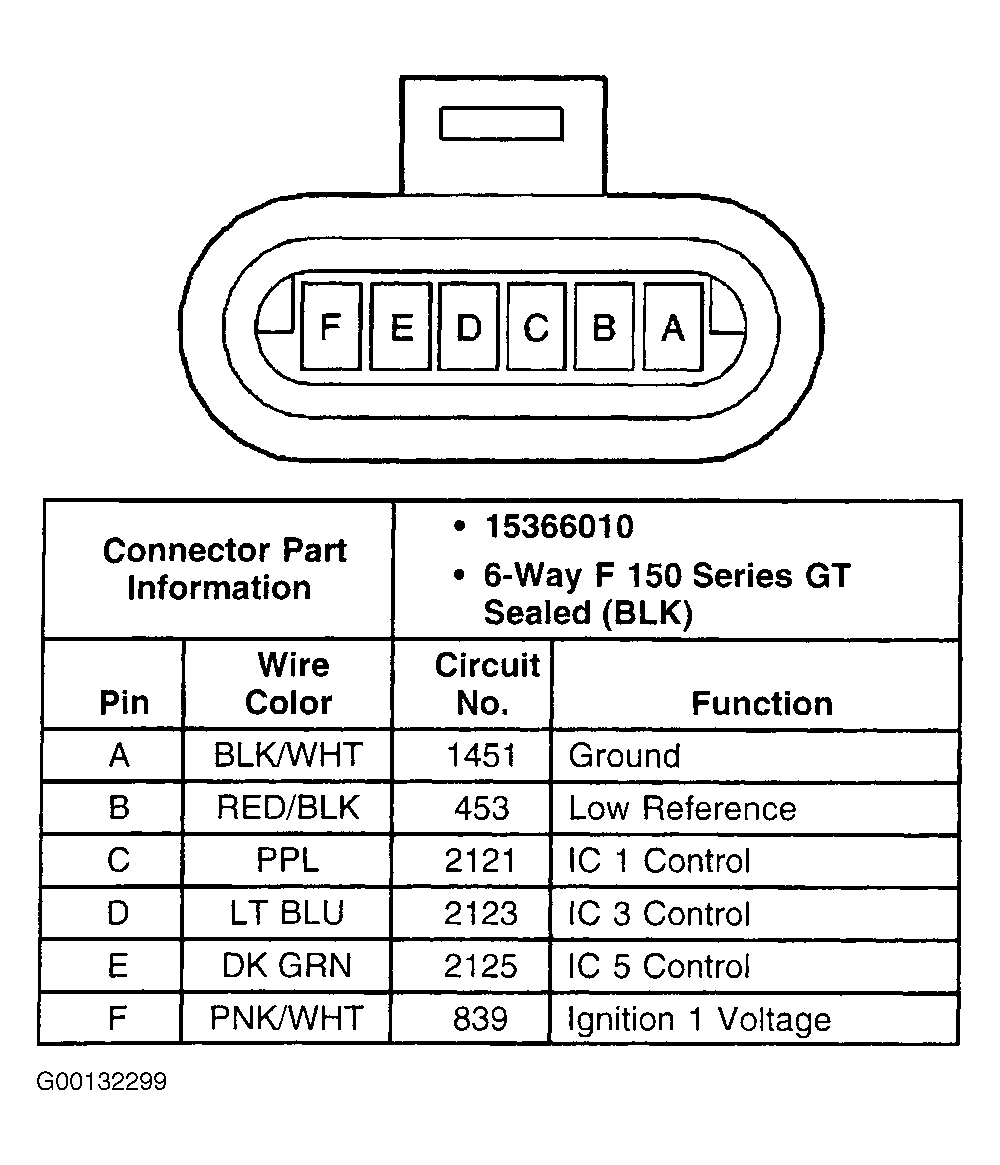

Fig 1: Ignition Control Module - Bank 1 (Aurora)

G00132299

Courtesy of GENERAL MOTORS CORP.
