HVAC Control Module Connector End View

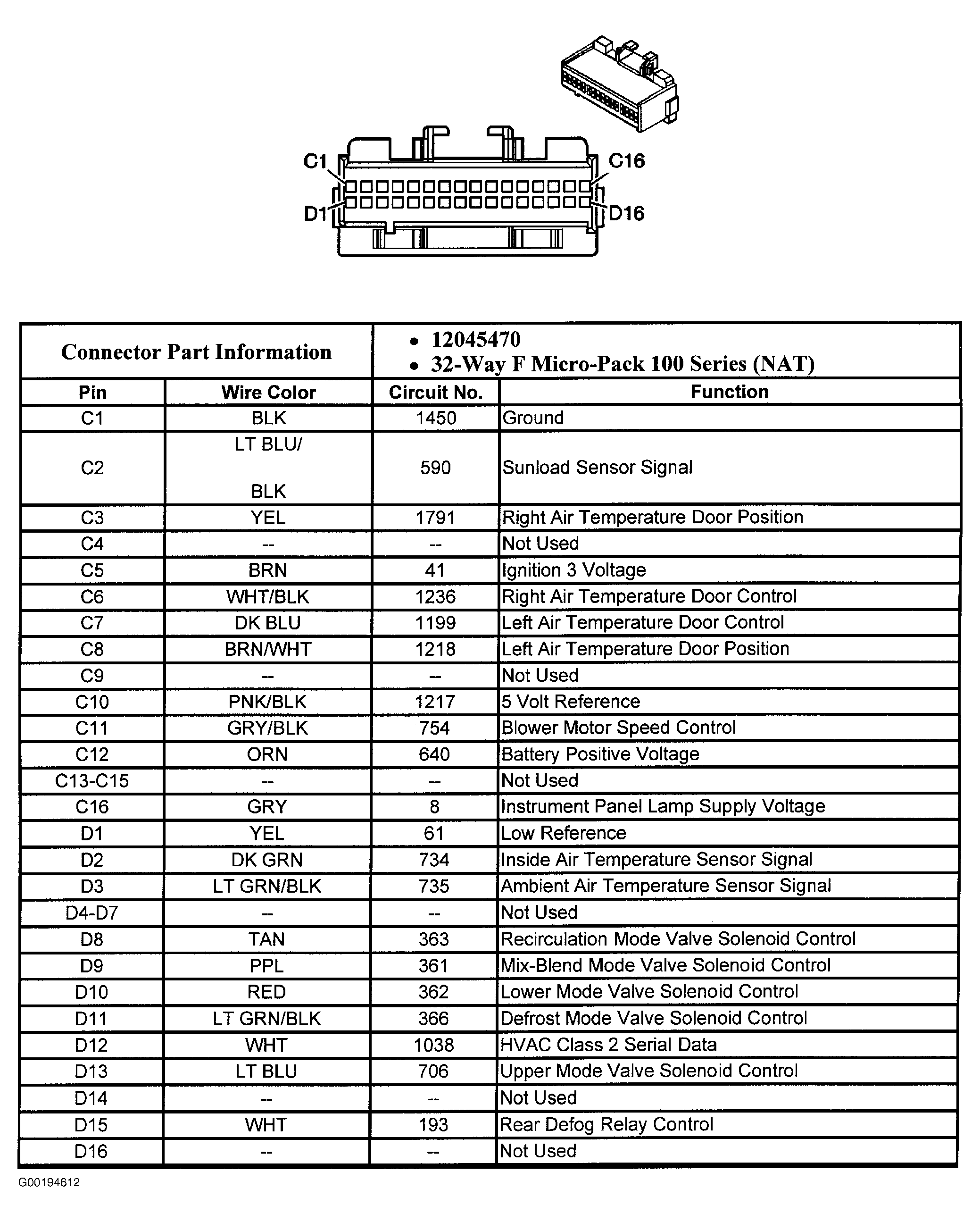

Fig 1: HVAC Control Module

G00194612

Courtesy of GENERAL MOTORS CORP.
