Stationary Windows Component Views

Fig 1: Right Lower Corner Of Rear Window Component View
G01831605Courtesy of GENERAL MOTORS CORP.

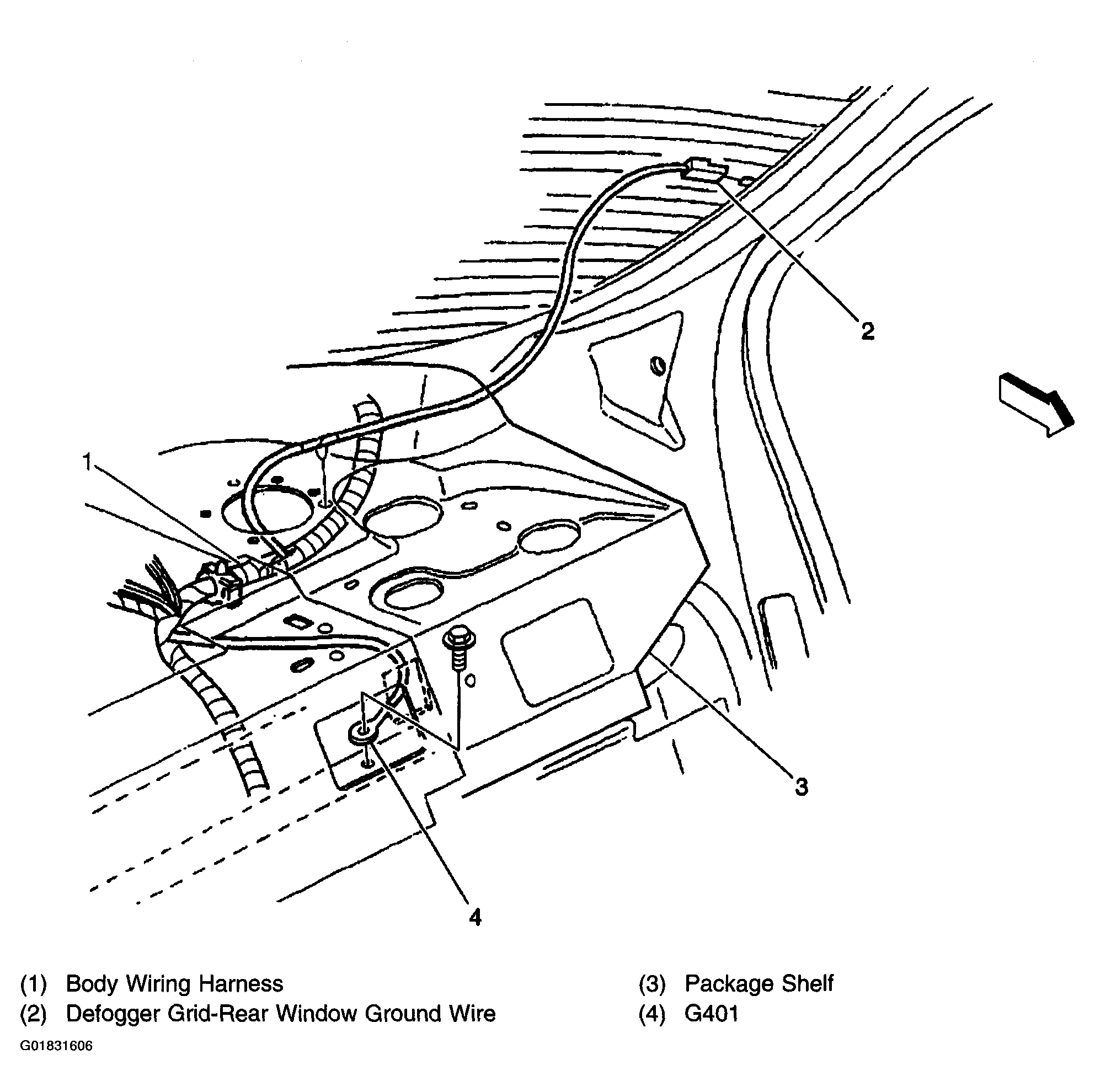

Fig 2: Left Side Of Package Shelf Component View
G01831606Courtesy of GENERAL MOTORS CORP.

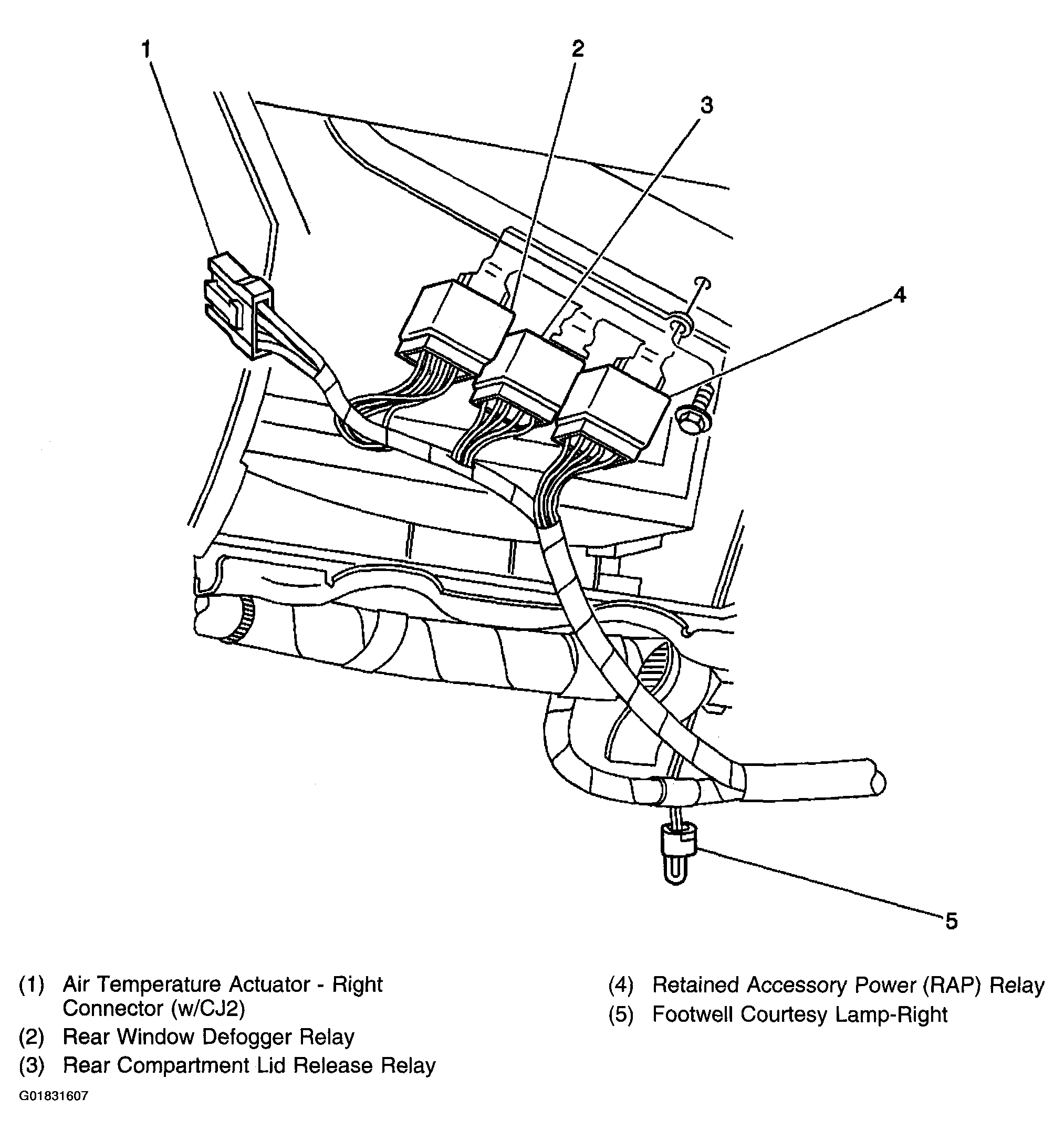

Fig 3: Right Side Of Instrument Panel Component View
G01831607Courtesy of GENERAL MOTORS CORP.
