Power Door Systems Connector End Views

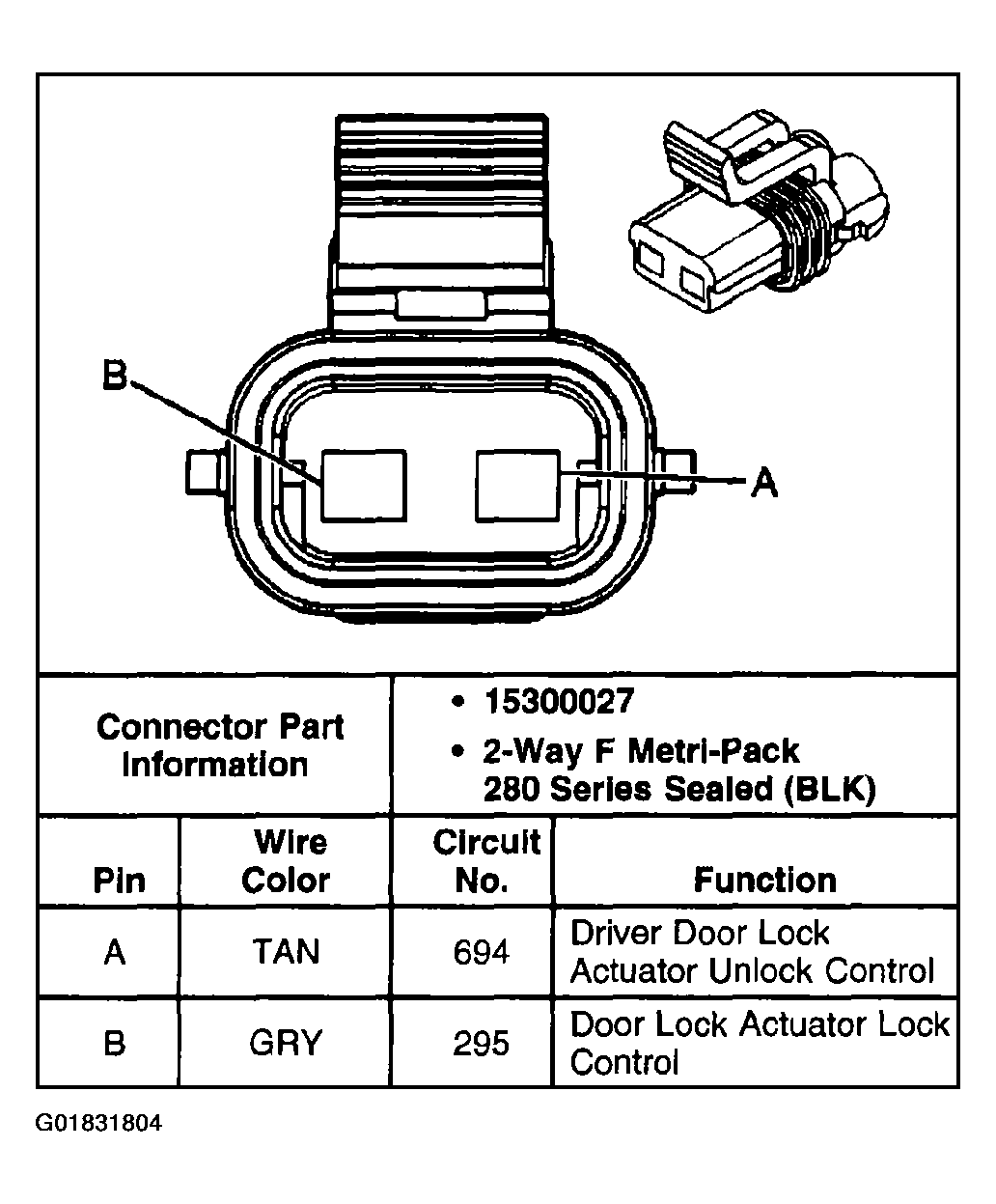

Fig 1: Door Lock Actuator - Driver C2 Connector End View
G01831804Courtesy of GENERAL MOTORS CORP.

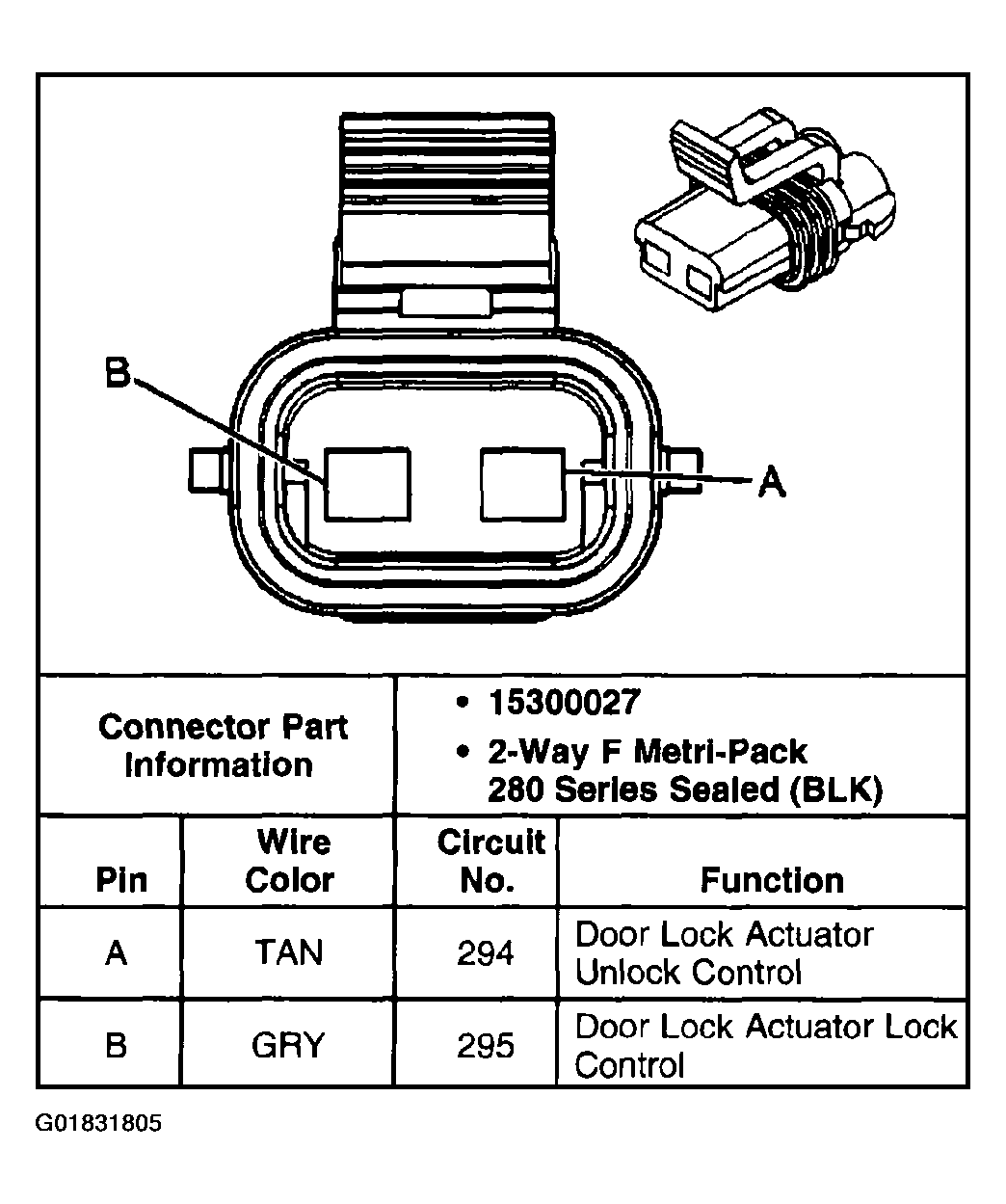

Fig 2: Door Lock Actuator - LR C2 Connector End View
G01831805Courtesy of GENERAL MOTORS CORP.

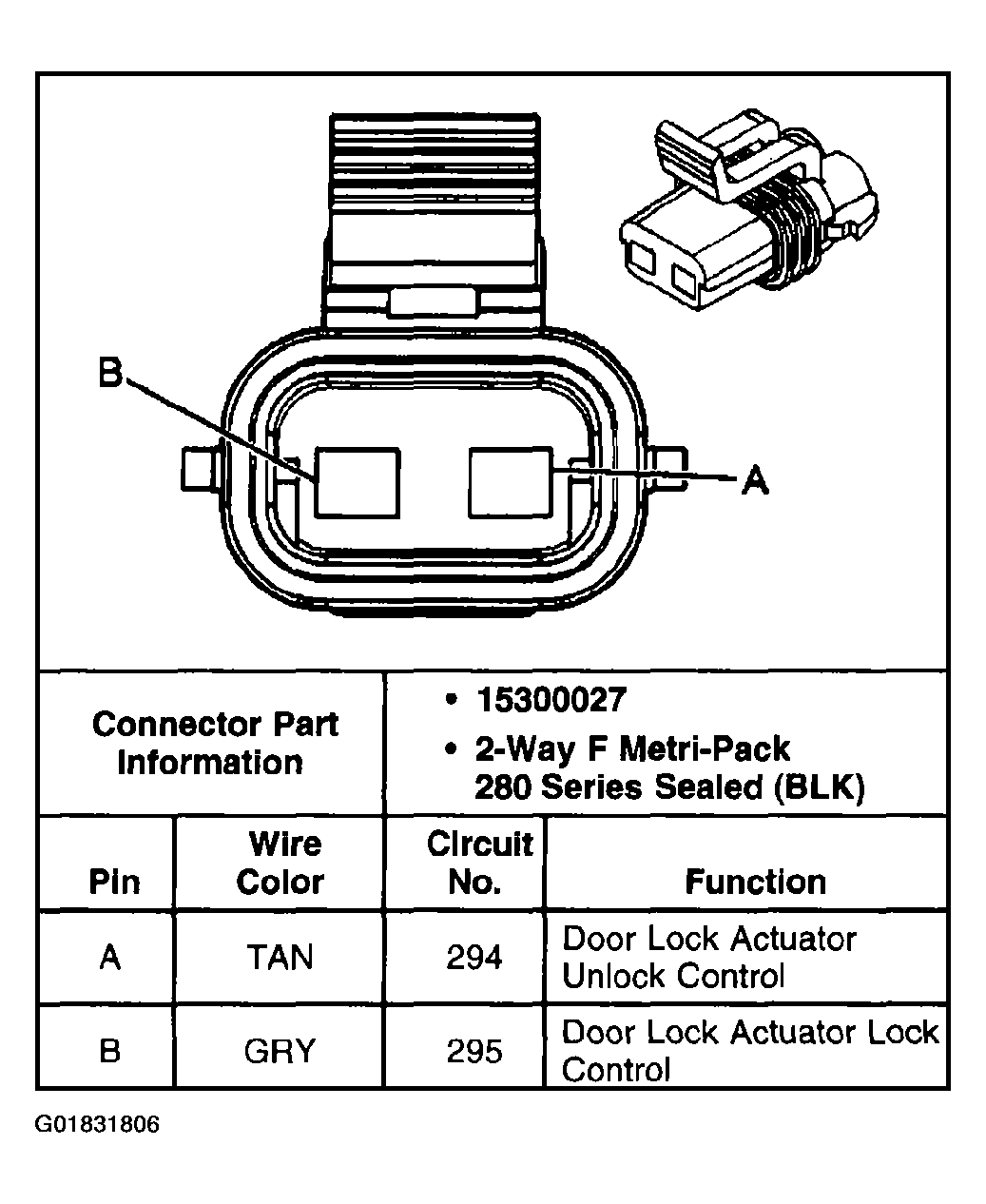

Fig 3: Door Lock Actuator - Front Passenger C2 Connector End View
G01831806Courtesy of GENERAL MOTORS CORP.

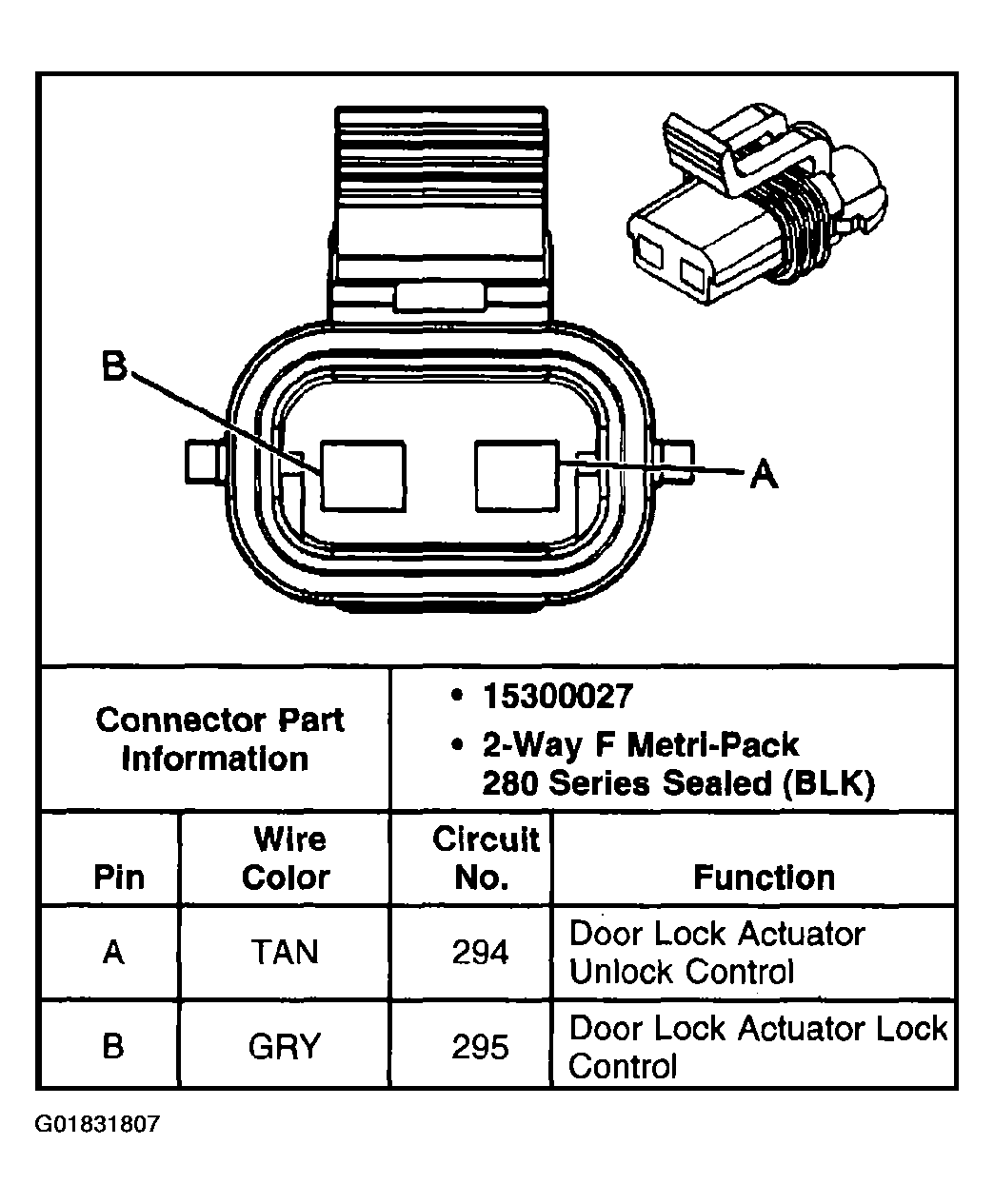

Fig 4: Door Lock Actuator - RR C2 Connector End View
G01831807Courtesy of GENERAL MOTORS CORP.

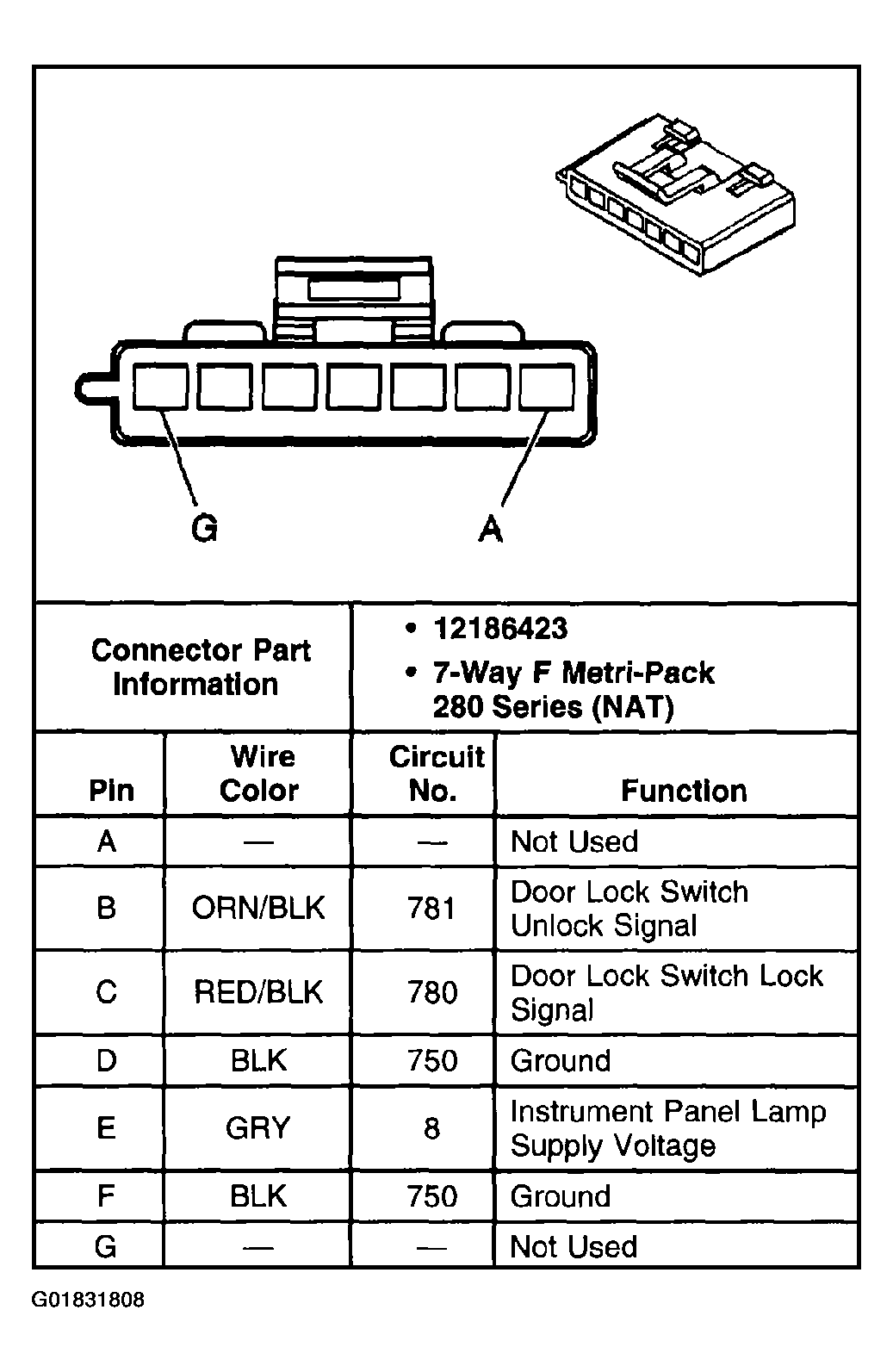

Fig 5: Door Lock Switch - Driver Connector End View
G01831808Courtesy of GENERAL MOTORS CORP.

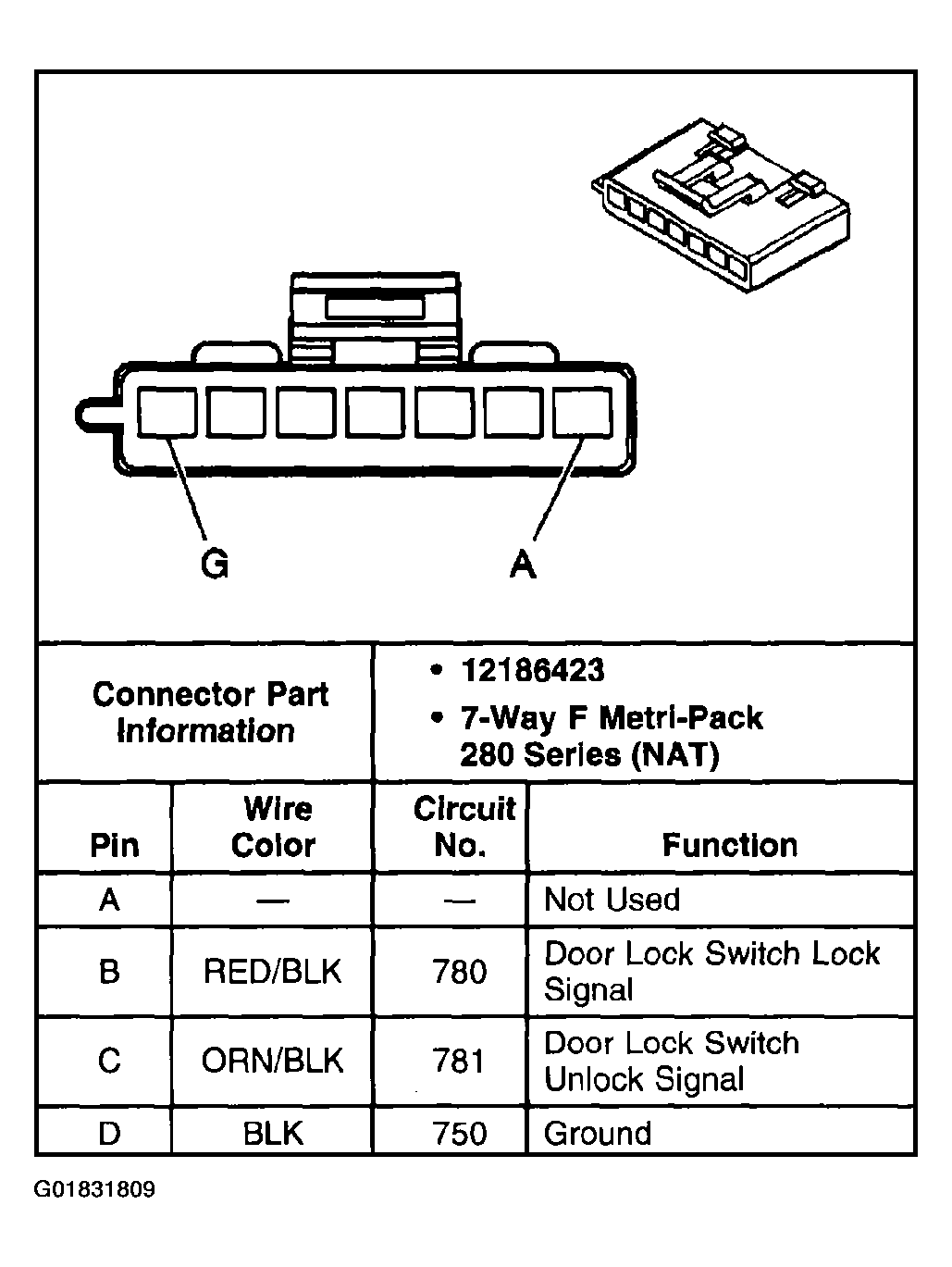

Fig 6: Door Lock Switch - Front Passenger Connector End View (1 Of 2)
G01831809Courtesy of GENERAL MOTORS CORP.

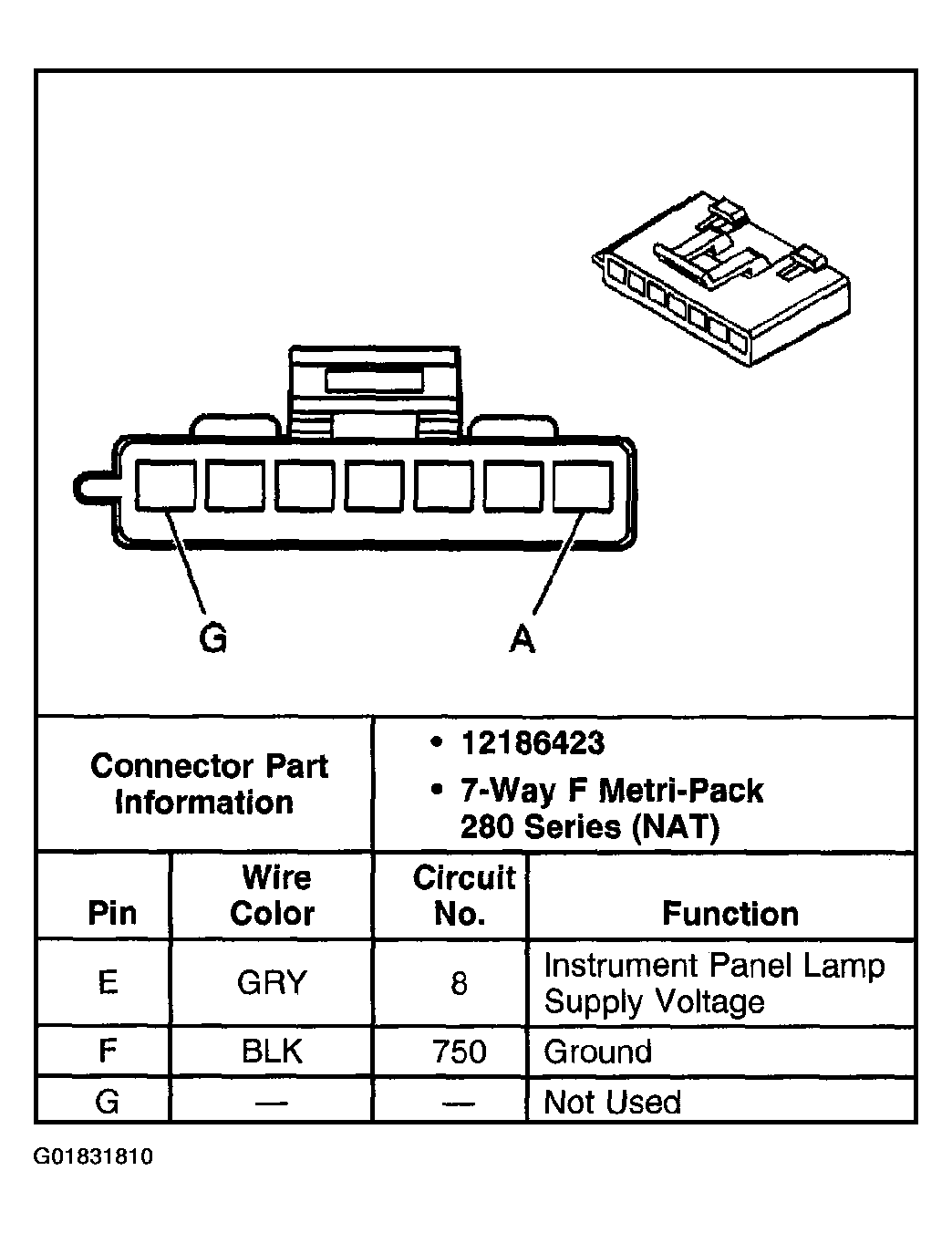

Fig 7: Door Lock Switch - Front Passenger Connector End View (2 Of 2)
G01831810Courtesy of GENERAL MOTORS CORP.

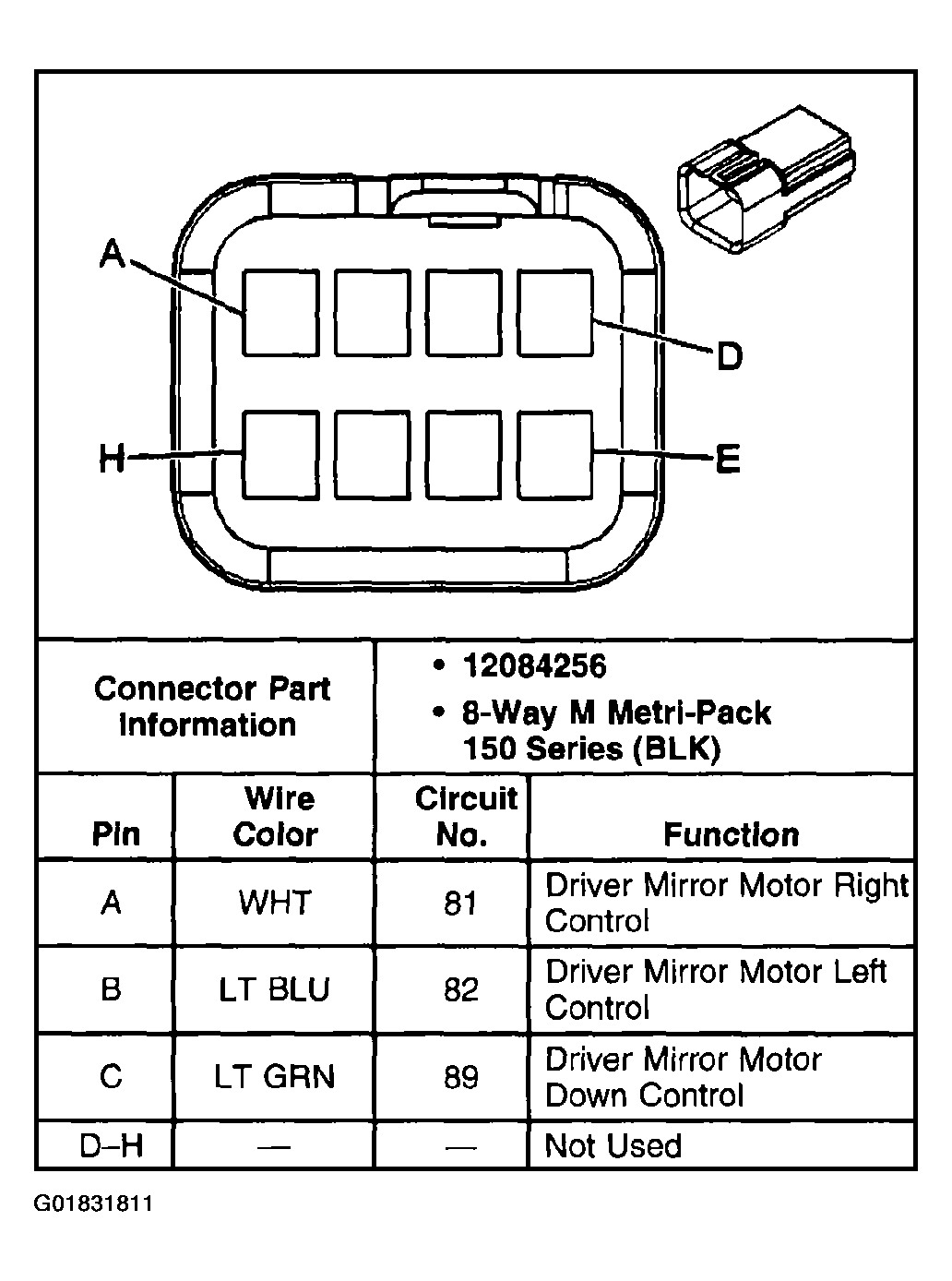

Fig 8: Outside Rearview Mirror - Driver Connector End View
G01831811Courtesy of GENERAL MOTORS CORP.

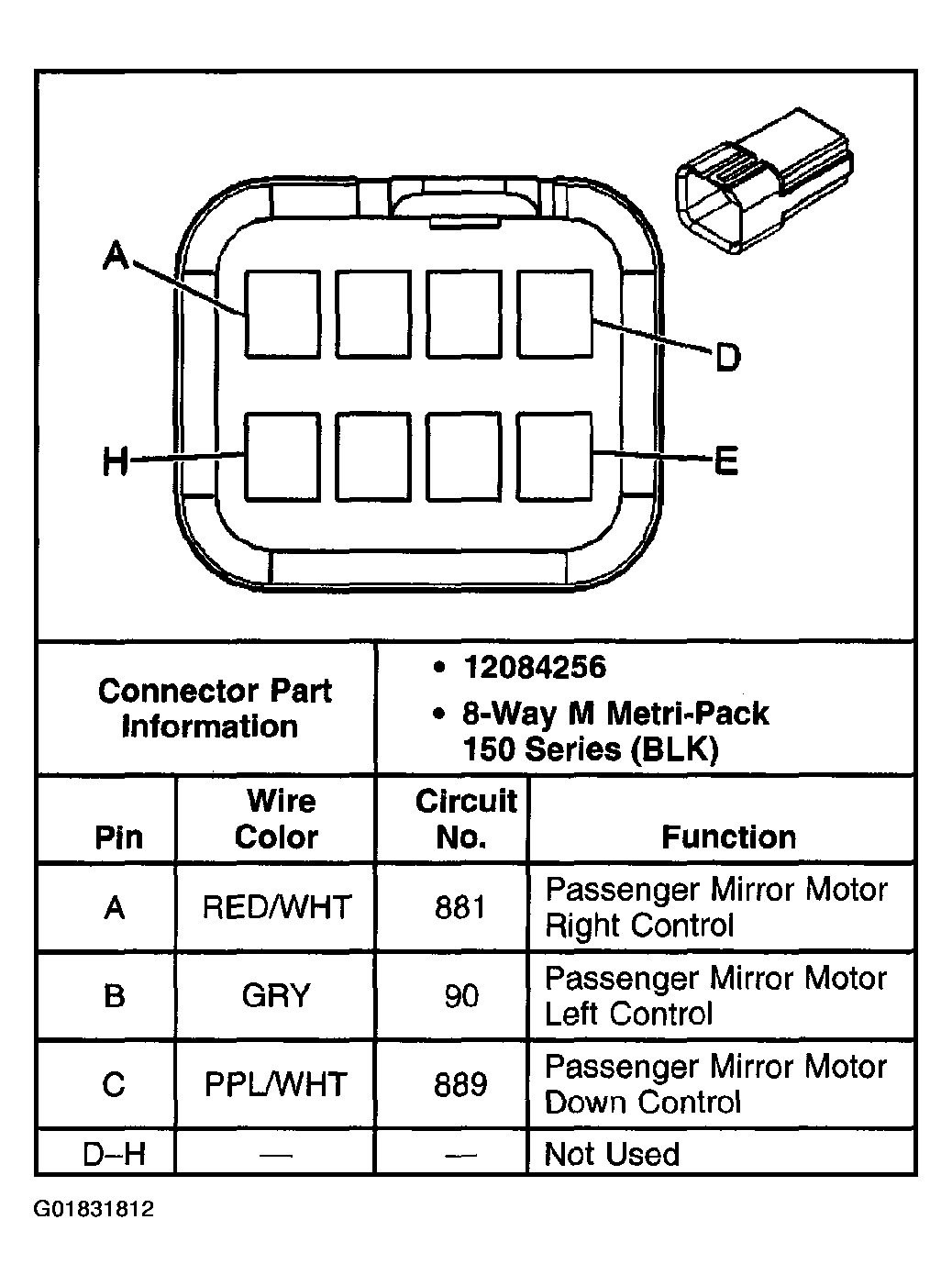

Fig 9: Outside Rearview Mirror - Front Passenger Connector End View
G01831812Courtesy of GENERAL MOTORS CORP.

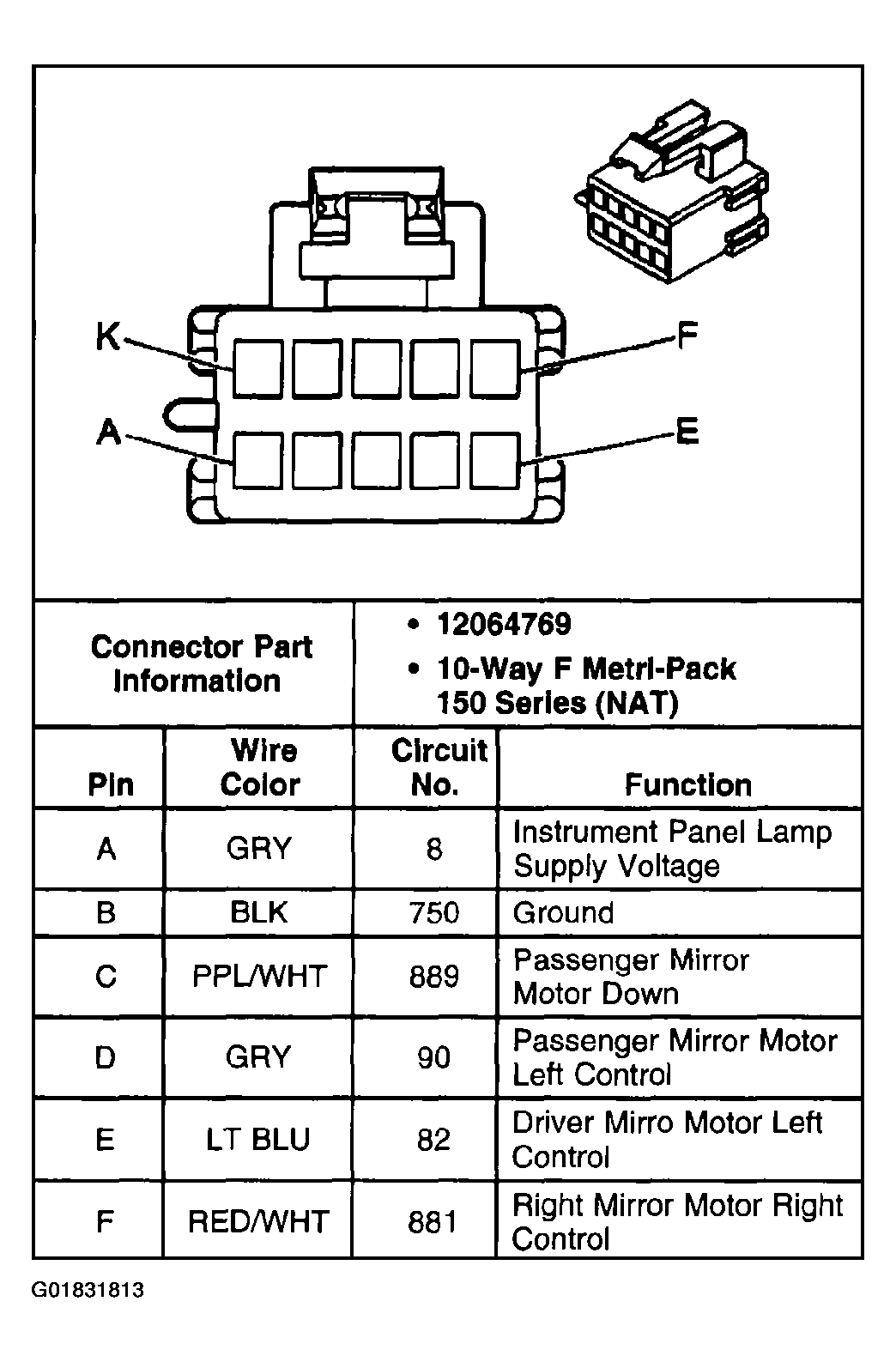

Fig 10: Outside Rearview Mirror Switch Connector End View (1 Of 2)
G01831813Courtesy of GENERAL MOTORS CORP.

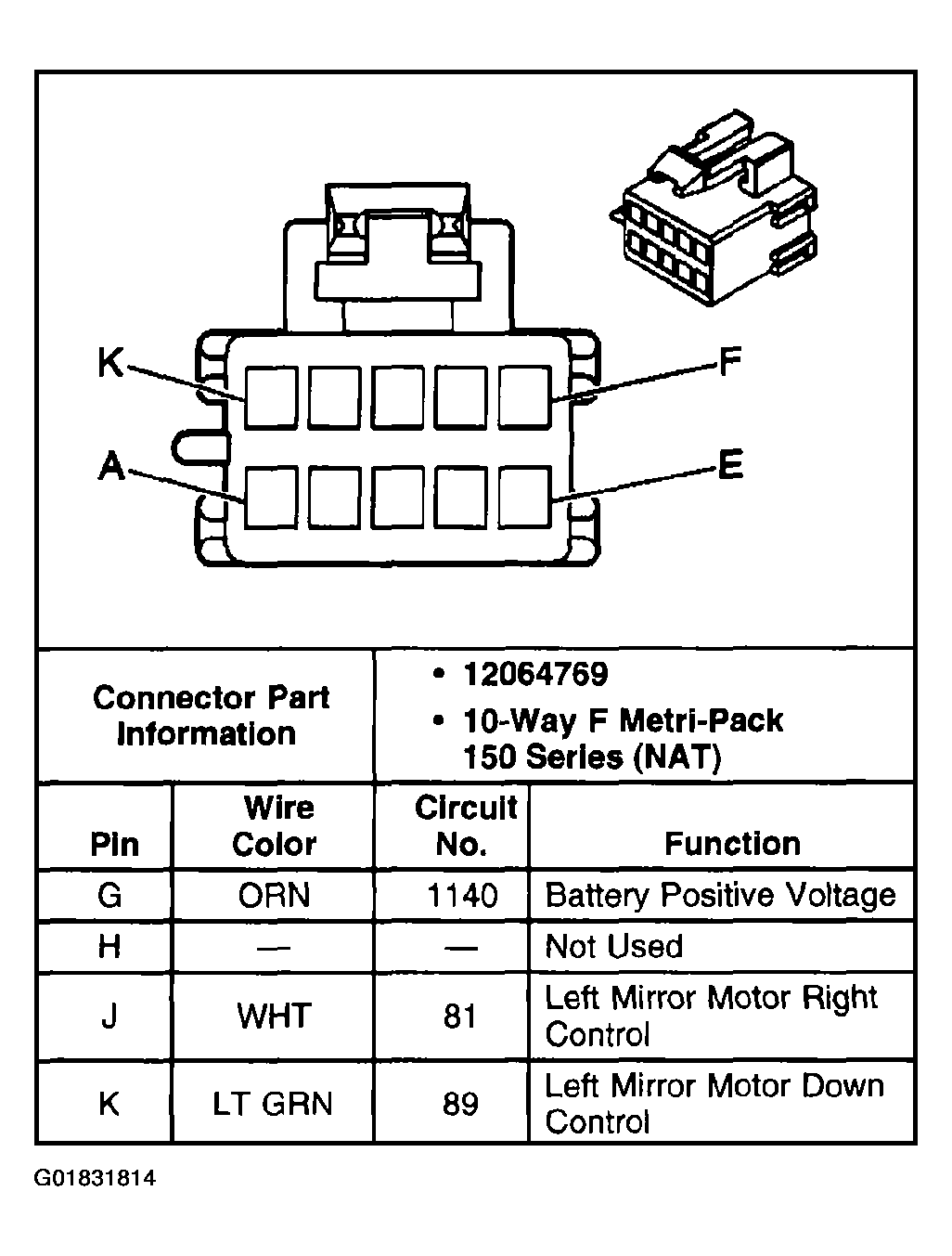

Fig 11: Outside Rearview Mirror Switch Connector End View (2 Of 2)
G01831814Courtesy of GENERAL MOTORS CORP.

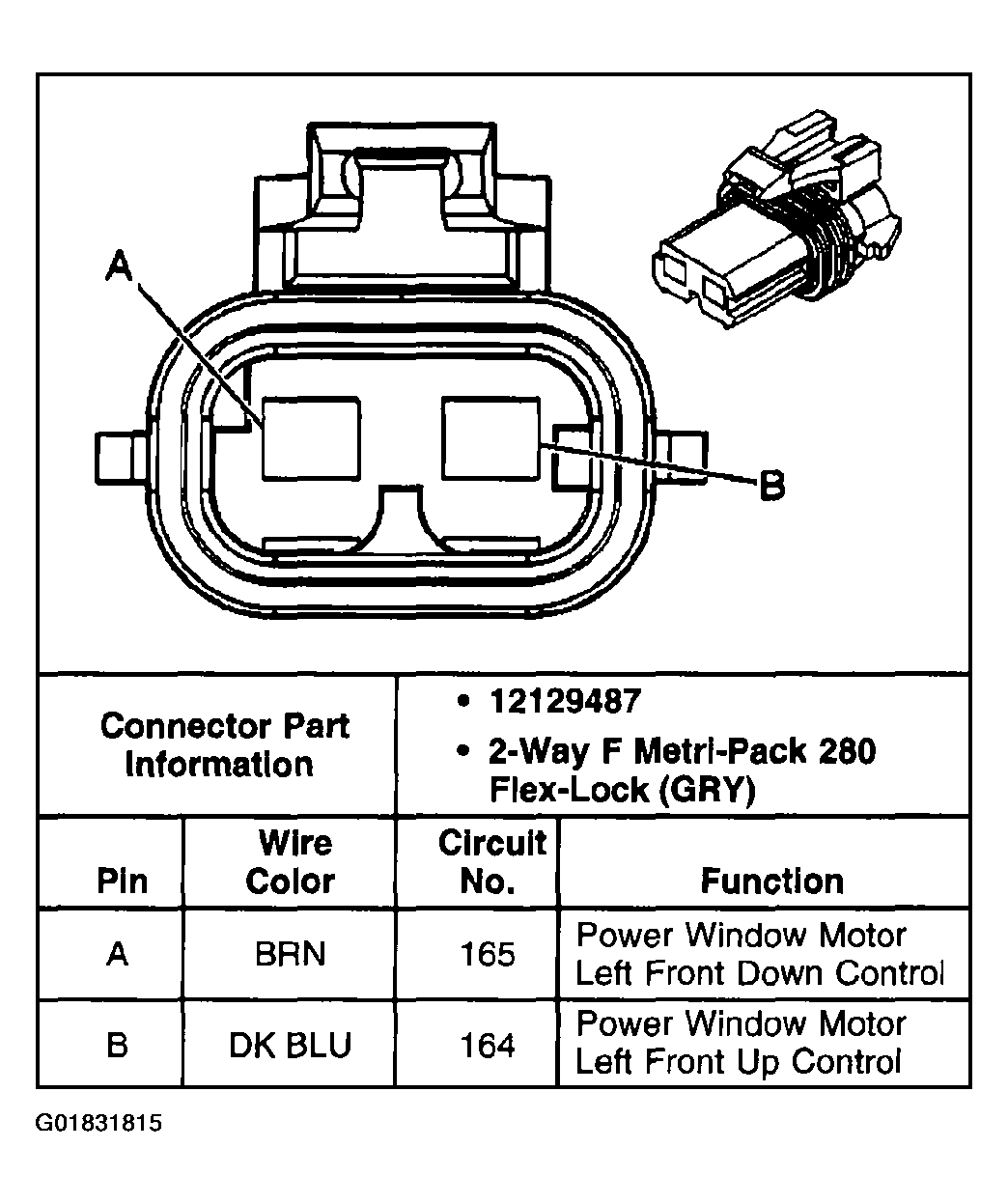

Fig 12: Window Motor - Driver Connector End View
G01831815Courtesy of GENERAL MOTORS CORP.
Fig 13: Window Motor - LR Connector End View
G01831816Courtesy of GENERAL MOTORS CORP.

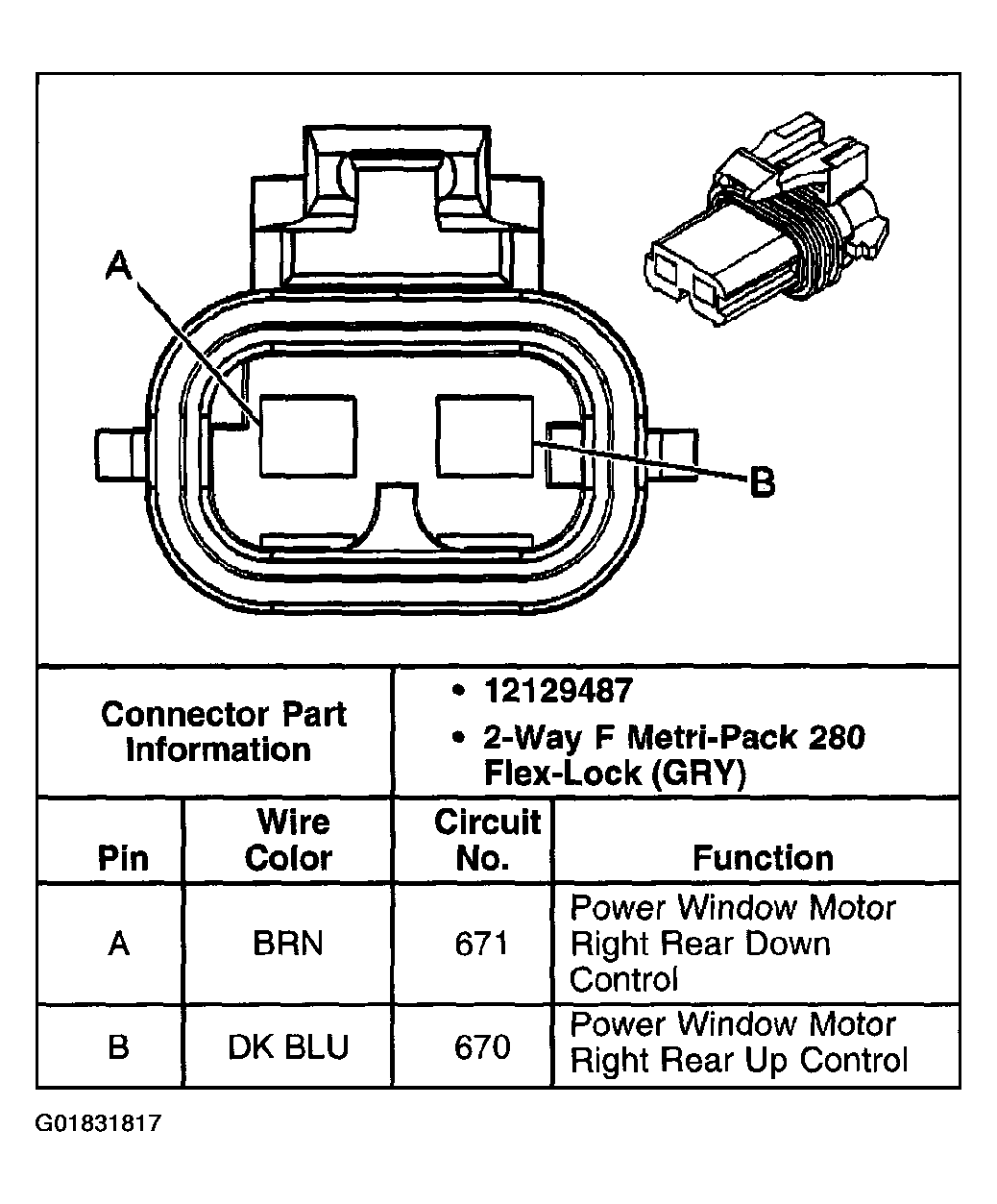

Fig 14: Window Motor - Front Passenger Connector End View
G01831817Courtesy of GENERAL MOTORS CORP.

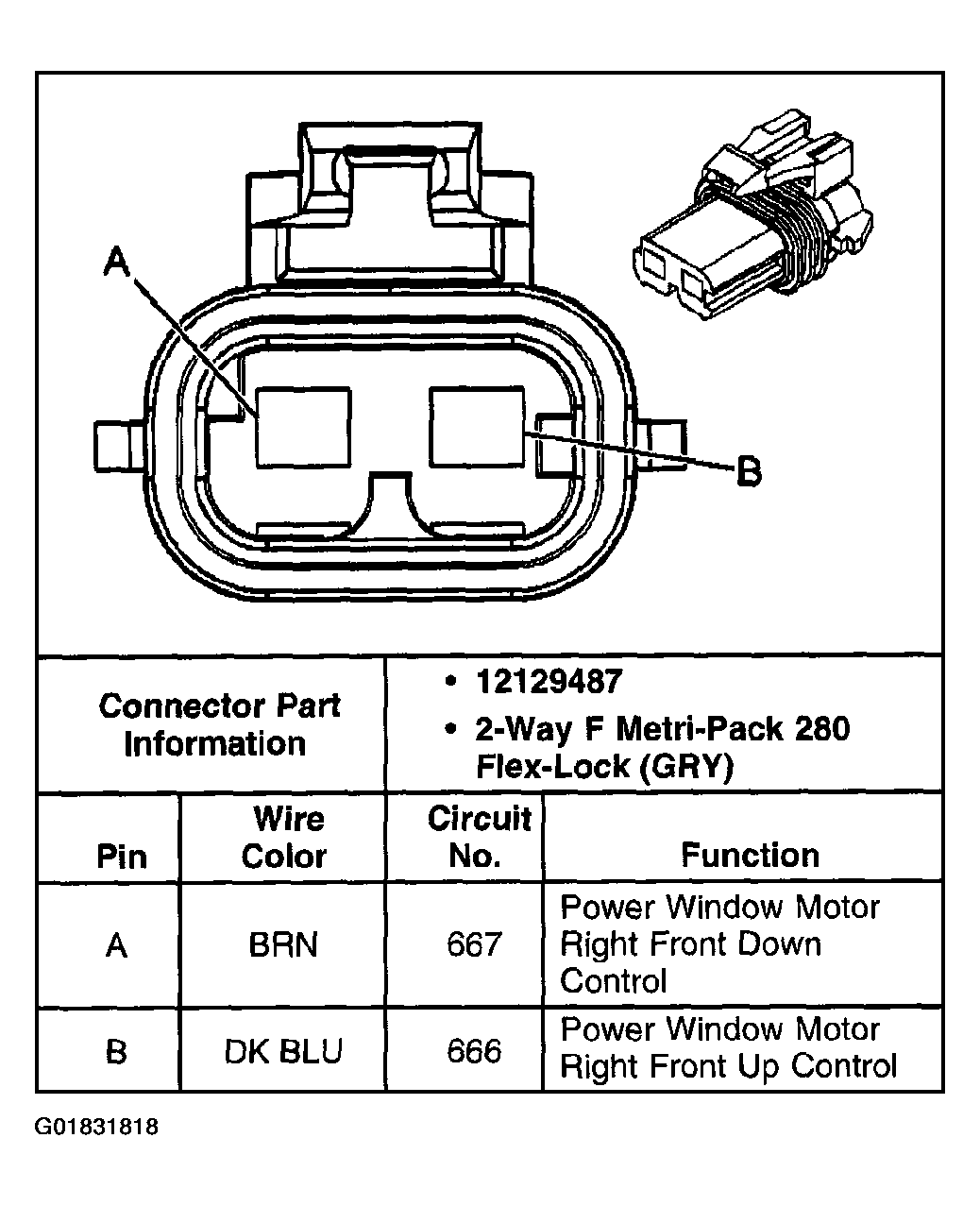

Fig 15: Window Motor - RR Connector End View
G01831818Courtesy of GENERAL MOTORS CORP.

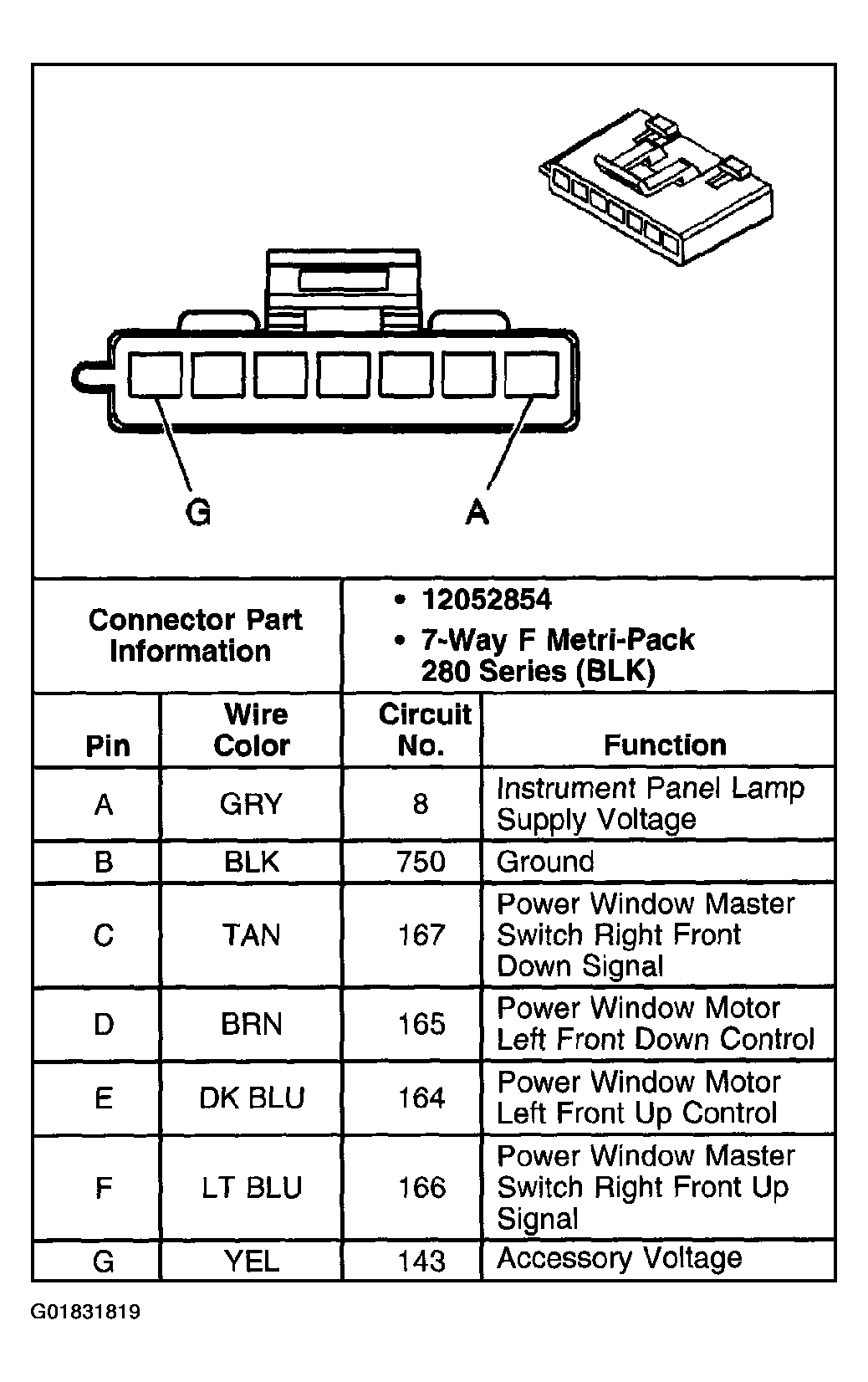

Fig 16: Window Master Switch - Driver C1 Connector End View
G01831819Courtesy of GENERAL MOTORS CORP.

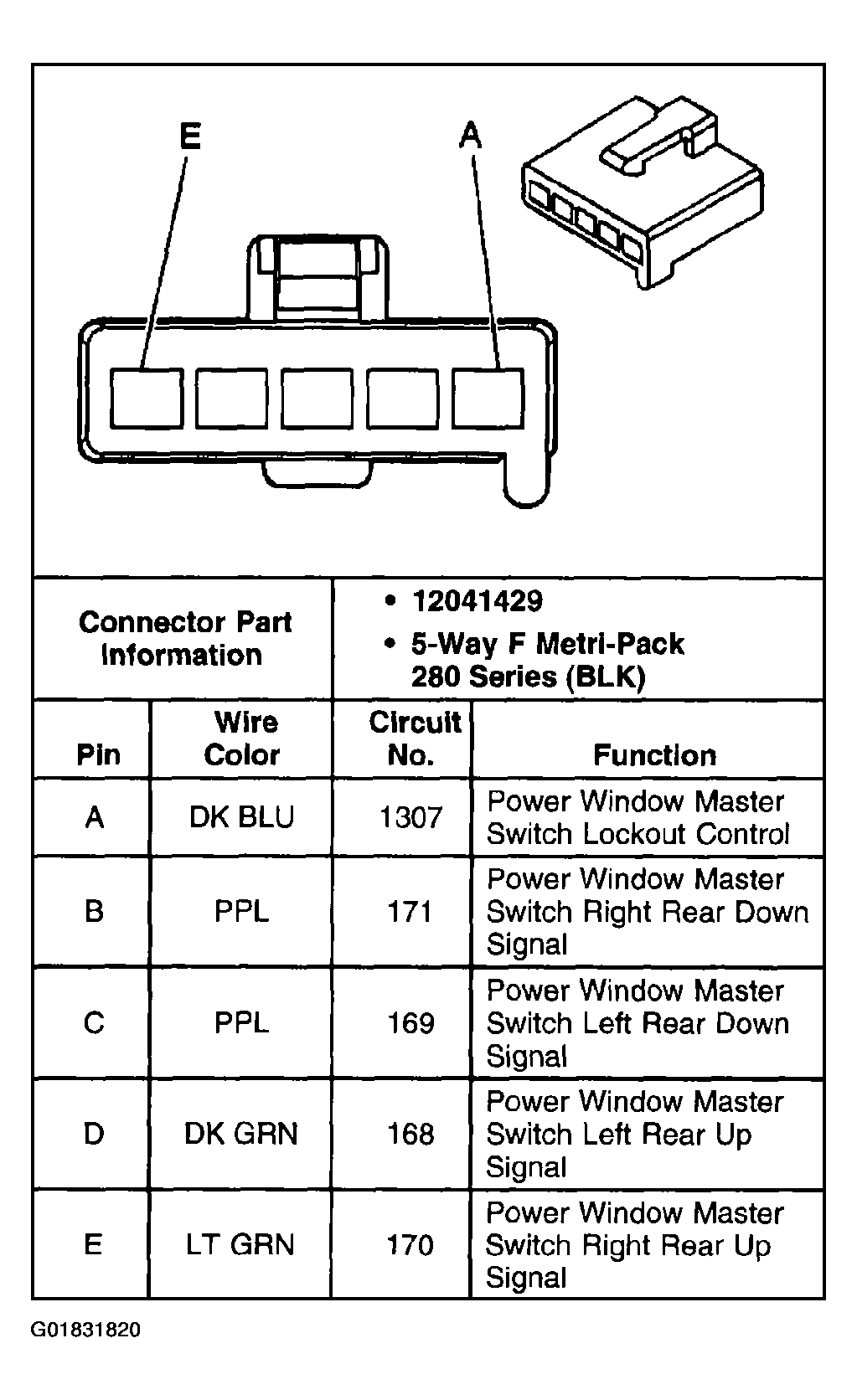

Fig 17: Window Master Switch - Driver C2 Connector End View
G01831820Courtesy of GENERAL MOTORS CORP.

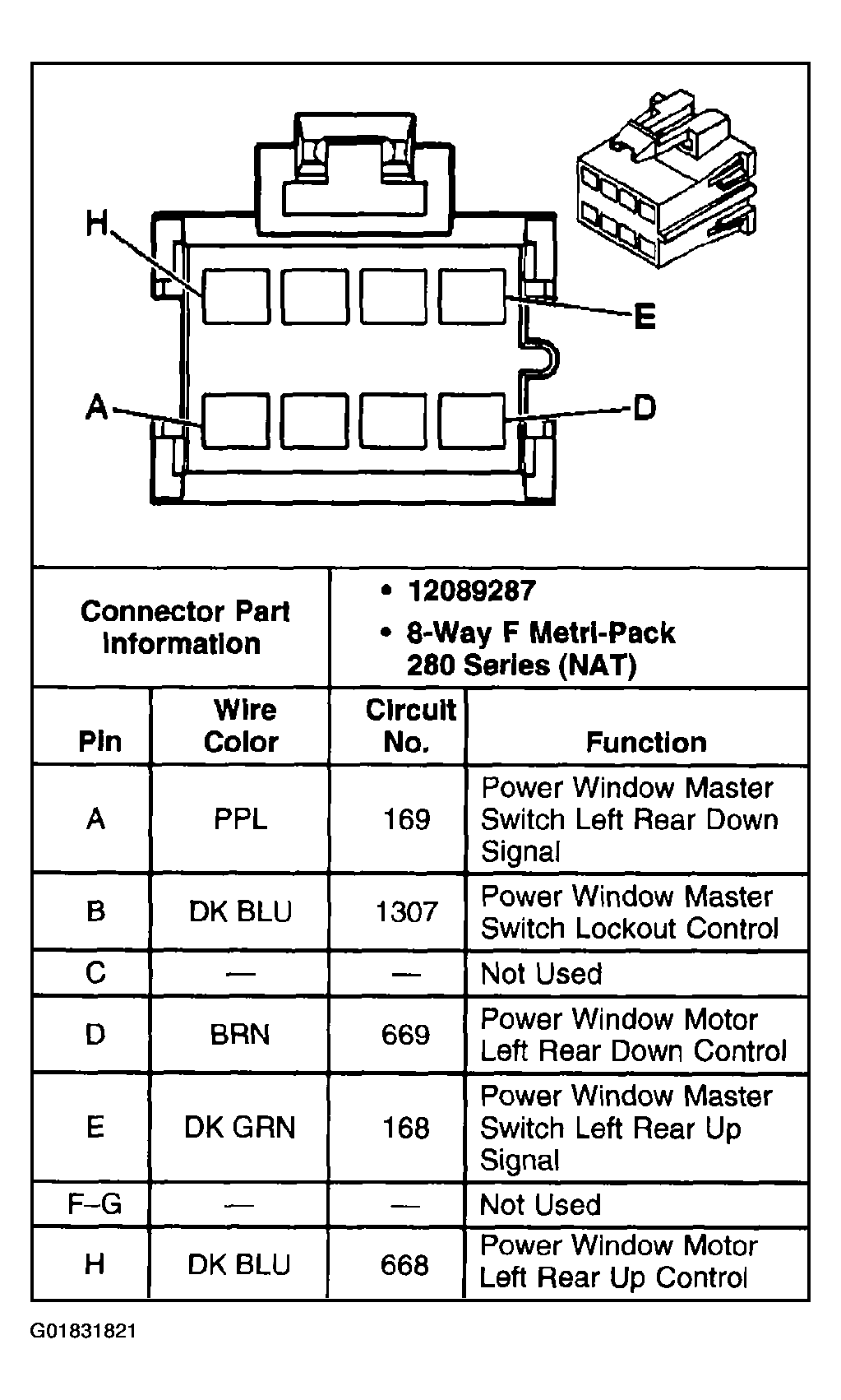

Fig 18: Window Switch - LR Connector End View
G01831821Courtesy of GENERAL MOTORS CORP.

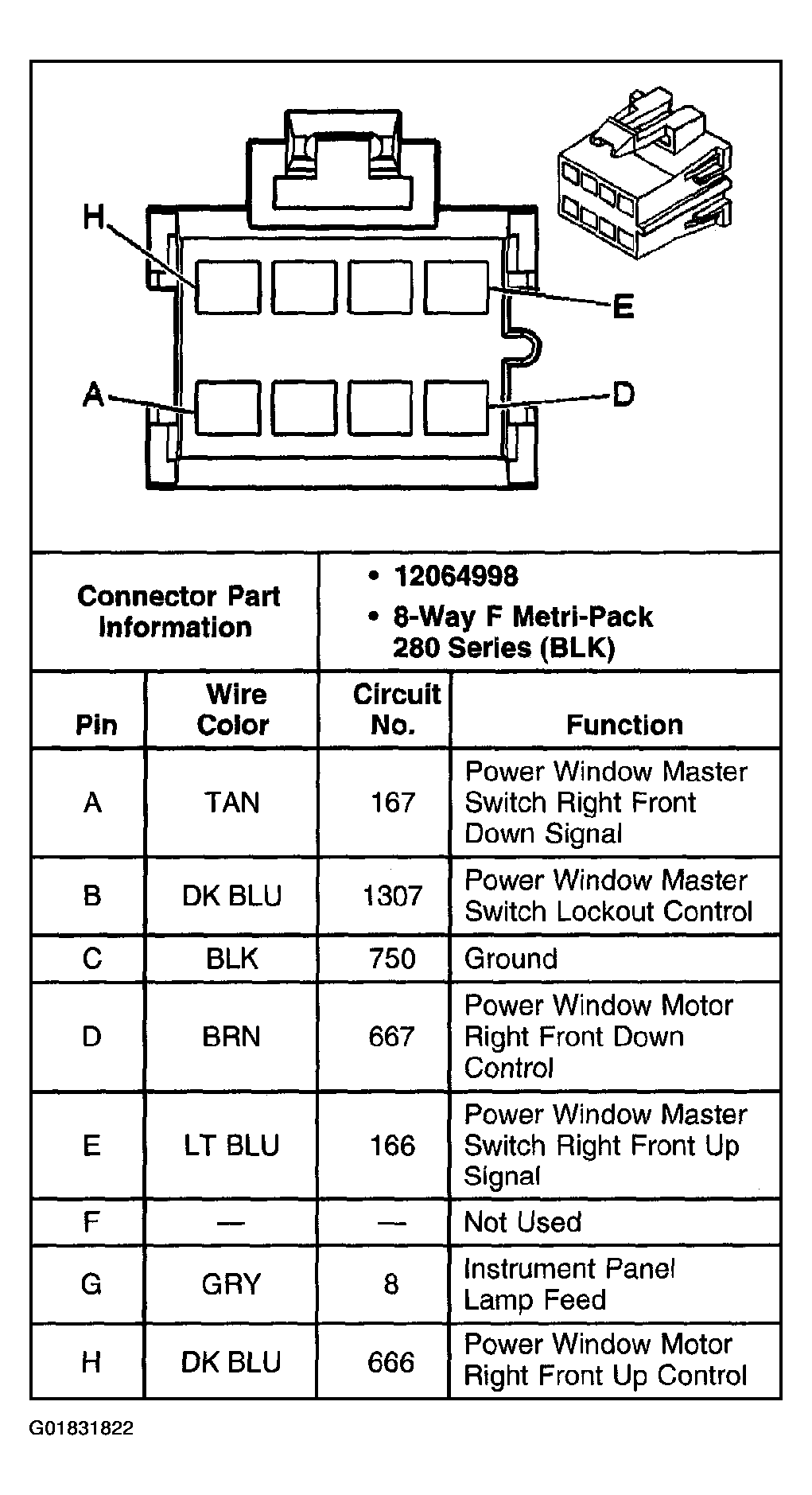

Fig 19: Window Switch - Front Passenger Connector End View
G01831822Courtesy of GENERAL MOTORS CORP.

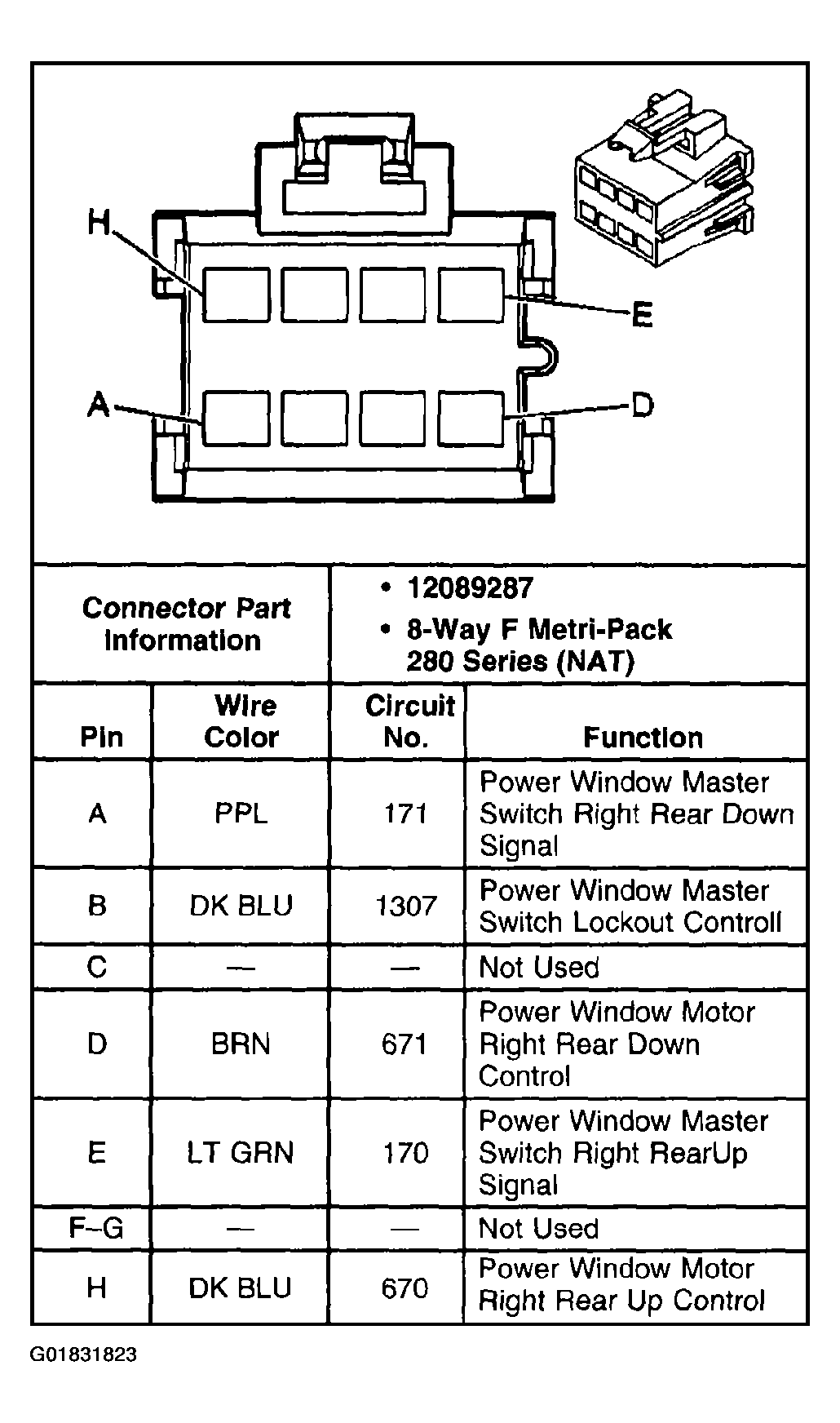

Fig 20: Window Switch - RR Connector End View
G01831823Courtesy of GENERAL MOTORS CORP.
