Product Safety - Electronically Controlled Air Suspension/Powertrain Control Module (04048A)

Publication date: 2004-09-14
Reference number: 04048A
Supersedes refnos: 04048

PRODUCT SAFETY - ELECTRONICALLY CONTROLLED AIR SUSPENSION/POWERTRAIN CONTROL MODULE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 04048A, Date of Issue: September 14, 2004

GMC:	2002 Envoy Equipped with Electronically Controlled Air Suspension (RPO G67)
OLDSMOBILE:	2002 Bravada Equipped with Electronically Controlled Air Suspension (RPO G67)
GROUP:	03 - Suspension

Superceded Bulletin(s): 04048

NOTE: THIS BULLETIN IS BEING REVISED TO CLARIFY THE DISCONNECTION OF THE ELECTRICAL CONNECTOR FROM THE ECAS COMPRESSOR (STEP 2 IN THE SERVICE PROCEDURE).

Condition

General Motors has decided that a defect which relates to motor vehicle safety exists in certain 2002 model year GMC Envoy and Oldsmobile Bravada vehicles equipped with electronically controlled air suspension (ECAS) (RPO G67). Some of these vehicles have a condition in which the ECAS may produce a brief electrical spike while the vehicle is operating. This electrical spike can disrupt the powertrain control module (PCM) causing the vehicle to stall. If the spike damages the PCM, the vehicle may not restart. If this happens while the vehicle is moving, a crash could occur without prior warning.

Correction

Dealers are to install a wiring harness.

Vehicles Involved

Involved are certain 2002 model year GMC Envoy and Oldsmobile Bravada vehicles equipped with ECAS (RPO G67) and built within these VIN breakpoints:

VIN Breakpoints

Year	Division	Model	From	Through
2002	GMC	Envoy	22100001	22295837
2002	Oldsmobile	Bravada	22100005	22305579

NOTE: Important Dealers should confirm vehicle eligibility through GMVIS (GM Vehicle Inquiry System) before beginning recall repairs. [Not all vehicles within the above breakpoints may be involved.]

For dealers with involved vehicles, a Campaign Initiation Detail Report containing the complete Vehicle Identification Number, customer name and address data has been prepared and will be loaded to the GM DealerWorld, Recall Information website. Dealers that have no involved vehicles currently assigned will not have a report available in GM DealerWorld.

The Campaign Initiation Detail Report may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any other purpose other than follow-up necessary to complete this recall is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this program.

Parts Information

Parts Pre-Ship Information

NOTE: Important An initial supply of wiring harnesses required to complete this recall will be pre-shipped to involved dealers of record. This pre-shipment is scheduled to begin the week of August 9, 2004 and will be approximately 15% of each dealer's involved vehicles. Pre-shipped parts will be charged to dealer's open parts account.

Additional parts, if required, are to be obtained from General Motors Service Parts Operations (GMSPO). Please refer to your "involved vehicles listing" before ordering parts. Normal orders should be placed on a DRO=Daily Replenishment Order. In an emergency situation, parts should be ordered on a CSO=Customer Special Order.

Parts Information

Part Number	Description	Qty
15166099	Harness, Chas RR Wrg	1
12337820	Strap, Adj Tie	1

Service Procedure

The following service procedure provides instructions for installing a jumper harness in series between the compressor for the electronic controlled air suspension (ECAS) and the vehicle wiring harness underneath the vehicle.

Raise the vehicle on a suitable hoist and support as necessary.
NOTE: Important When disconnecting the electrical connector in the next step, the grey colored terminal cover inside the harness connector may remain in the connector on the ECAS compressor. If this occurs, the new jumper harness cannot be connected to the compressor until the grey cover is removed.
Locate and disconnect the eight-way electrical connector (2) from the ECAS compressor (1).

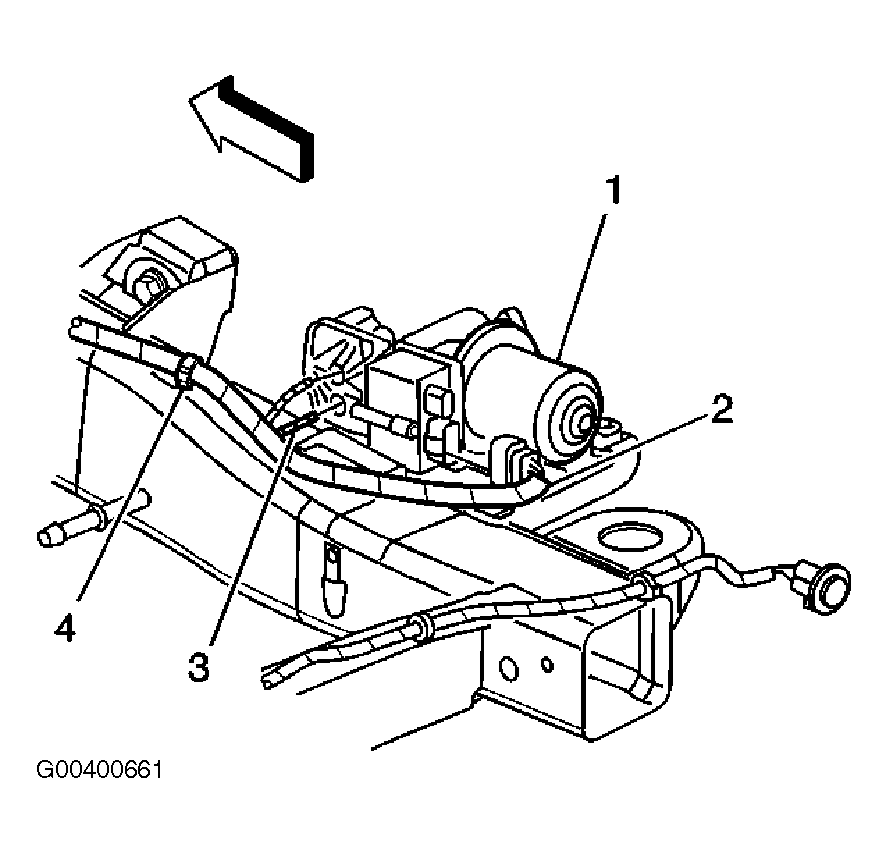

Fig 1: Electronically Controlled Air Suspension Unit
Connect one end of the new jumper harness to the connector on the ECAS compressor.
Connect the other end of the jumper harness to the connector on the vehicle harness.
Secure the new jumper harness to the original vehicle wiring harness using the plastic tie strap.
Lower the vehicle.

Customer Reimbursement

All customer requests for reimbursement for previous repairs for the recall condition will be handled by the Customer Assistance Center, not by dealers.

A General Motors Product Recall Customer Reimbursement Procedure Form is included with the customer letter.

NOTE: Important Refer to the GM Service Policies and Procedures Manual, section 6.1.12 for specific procedures regarding customer reimbursement and the form.

Courtesy Transportation

The General Motors Courtesy Transportation program is intended to minimize customer inconvenience when a vehicle requires a repair that is covered by the New Vehicle Limited Warranty. The availability of courtesy transportation to customers whose vehicles are within the warranty coverage period and involved in a product recall is very important in maintaining customer satisfaction. Dealers are to ensure that these customers understand that shuttle service or some other form of courtesy transportation is available and will be provided at no charge. Dealers should refer to the General Motors Service Policies and Procedures Manual for Courtesy Transportation guidelines.

Claim Information

Submit a Product Recall Claim with the information indicated below:

Warranty Information

Repair Performed

Part Count

Part No.

Parts Allow

CC-FC

Labor Op

Labor Hours

Net Item

Install Wire Harness

⁽¹⁾

MA-96

V1210

0.2

N/A

Courtesy Transportation

N/A

MA-96

⁽²⁾

N/A

⁽³⁾

Customer Reimbursement (U.S. CAC)

N/A

MA-96

V1211

0.2

⁽⁴⁾

⁽¹⁾	The ""Parts Allowance"" should be the sum total of the current GMSPO Dealer net price plus applicable Mark-Up for the wire harness needed to complete the repair.

⁽²⁾	Submit courtesy transportation using normal labor operations for courtesy transportation as indicated in the GM Service Policies and Procedures Manual.

⁽³⁾	The amount identified in the ""Net Item"" column should represent the actual dollar amount for courtesy transportation.

⁽⁴⁾	The amount identified in the ""Net Item"" could should represent the dollar amount reimbursed to the customer.

Refer to the General Motors WINS Claims Processing Manual for details on Product Recall Claim Submission.

Customer Notification

General Motors will notify customers of this recall on their vehicle (see copy of customer letter included with this bulletin).

Dealer Recall Responsibility

The U.S. National Traffic and Motor Vehicle Safety Act provides that each vehicle which is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the U.S. National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.

All unsold new vehicles in dealers' possession and subject to this recall MUST be held and inspected/repaired per the service procedure of this recall bulletin BEFORE customers take possession of these vehicles.

Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.

Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.

In summary, whenever a vehicle subject to this recall enters your vehicle inventory, or is in your dealership for service in the future, please take the steps necessary to be sure the recall correction has been made before selling or releasing the vehicle.

GENERAL MOTORS PRODUCT PROGRAM CUSTOMER REIMBURSEMENT PROCEDURE

If you have paid to have this recall condition corrected prior to receiving this notification, you may be eligible to receive reimbursement.

Requests for reimbursement may include parts, labor, fees and taxes. Reimbursement may be limited to the amount the repair would have cost if completed by an authorized General Motors dealer.

Your claim will be acted upon within 60 days of receipt.

If your claim is:

Approved, you will receive a check from General Motors.
Denied, you will receive a letter from General Motors with the reason(s) for the denial, or
Incomplete, you will receive a letter from General Motors identifying the documentation that is needed to complete the claim and offered the opportunity to resubmit the claim when the missing documentation is available.

Please follow the instructions on the Claim Form provided on the reverse side to file a claim for reimbursement. If you have questions about this reimbursement procedure, please call the toll-free telephone number provided at the bottom of the form. If you need assistance with any other concern, please contact the appropriate Customer Assistance Center at the number listed below. The Customer Assistance Center hours of operation are from 8:00 AM - 11:00 PM eastern standard time Monday through Friday.

Customer Assistance Center

Division	Number	Text Telephones
GMC	1-866-996-9463	1-800-462-8583
Oldsmobile	1-800-630-6537	1-800-833-6537
Puerto Rico - English	1-800-496-9992	--
Puerto Rico - Espanol	1-800-496-9993	--
Virgin Islands	1-800-496-9994	--

GENERAL MOTORS PRODUCT PROGRAM CUSTOMER REIMBURSEMENT CLAIM FORM

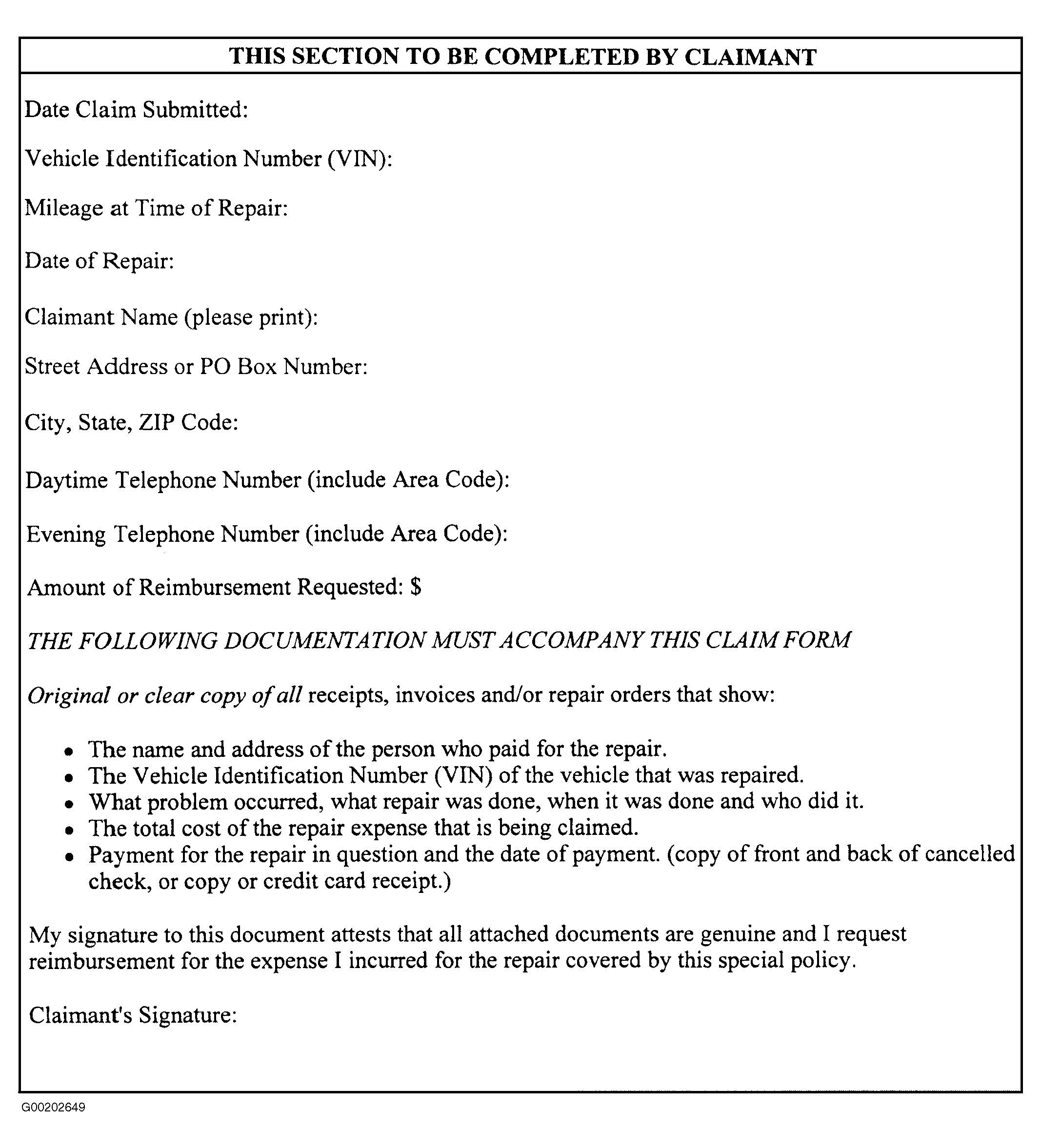

Fig 2: Customer Reimbursement Claim Form

Please mail this claim form and the required documents to:

General Motors Corporation

P.O. Box 33170

Detroit, MI 48232-5170

All recall reimbursement questions should be directed to the following number: 1-800-204-0261.

Owner Notification Letter

August 2004

Dear General Motors Customer:

This notice is sent to you in accordance with the requirements of the National Traffic and Motor Vehicle Safety Act. Federal regulation requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within ten days.

Reason For This Recall

What Will Be Done

Your GM dealer will install a wiring harness. This service will be performed for you at no charge.

How Long Will The Repair Take?

This service correction will take approximately 15 minutes. However, due to service scheduling requirements, your dealer may need your vehicle for a longer period of time.
