Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the transfer case shield (2) to the transmission support. Ensure that the J-nuts (1) are in place.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the transfer case shield mounting bolts (3).
Tighten

Tighten the transfer case shield mounting bolts to 16 N.m (12 lb.ft).
Lower the vehicle. Refer to JACKING AND LIFTING the Vehicle in General Information.

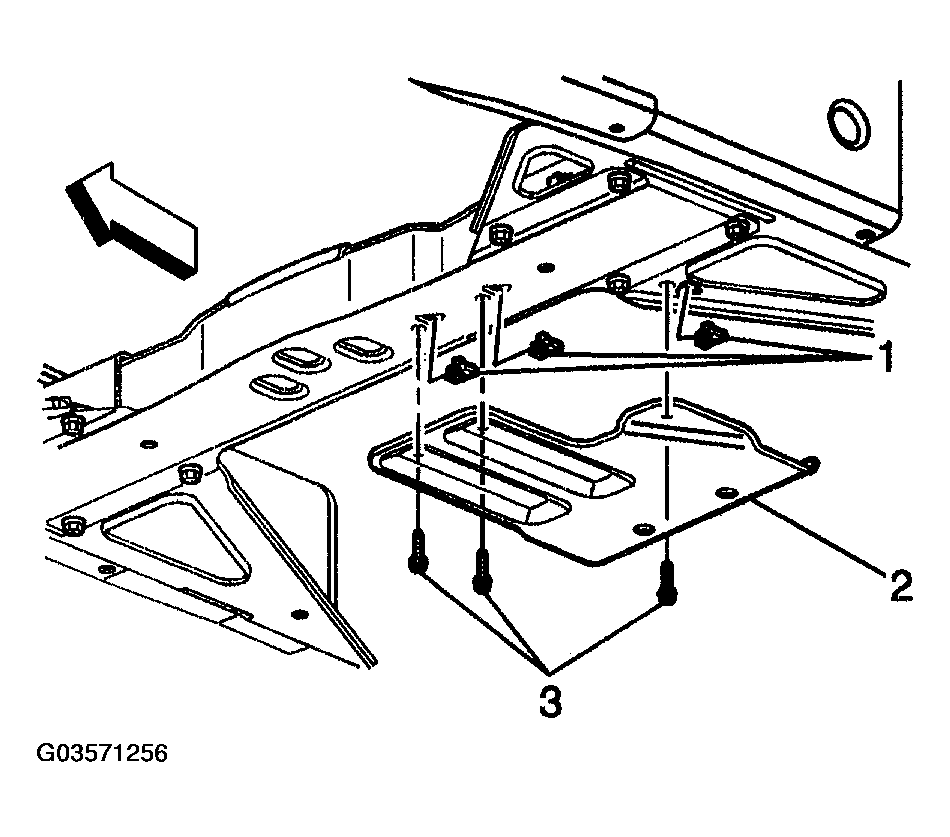

Fig 1: Installing Transfer Case Shield Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
