Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Connect the radio electrical connector.

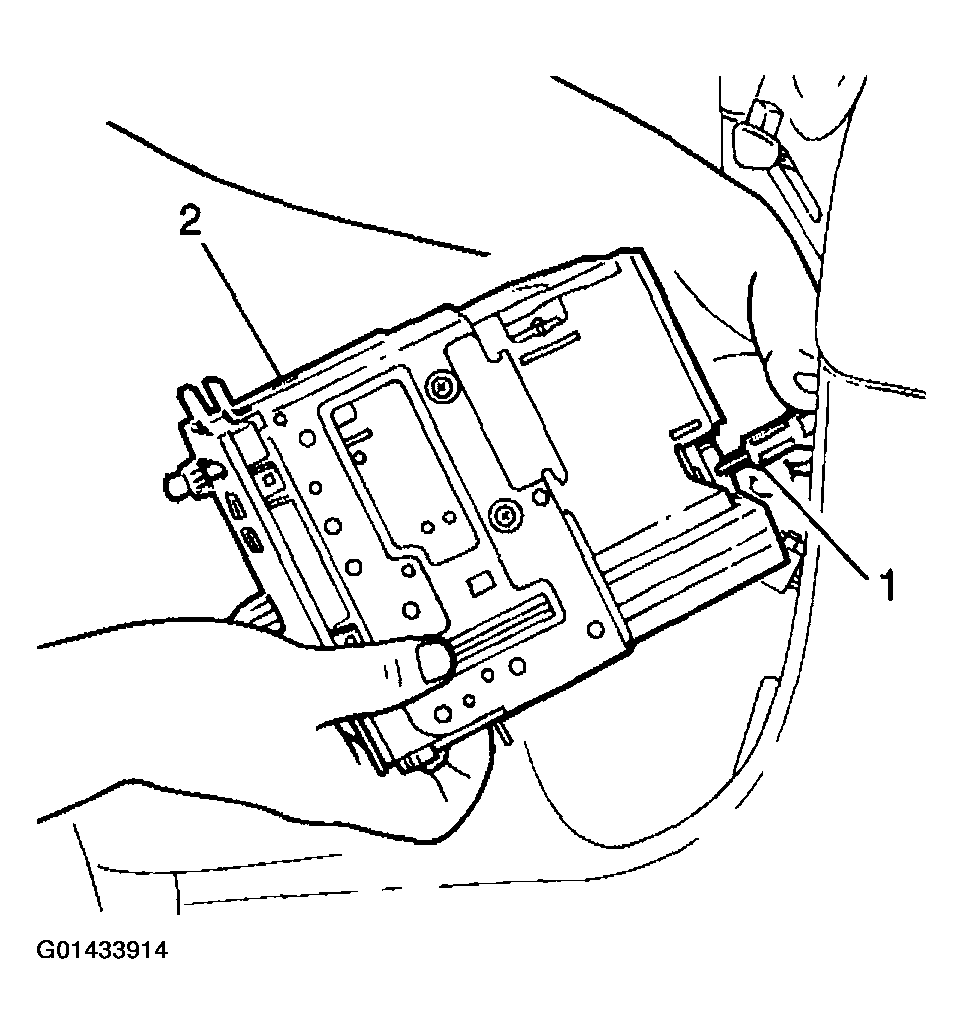

Connect the antenna lead (1) to the radio (2).

Fig 1: Connecting Antenna Lead To Radio
Courtesy of GENERAL MOTORS CORP.

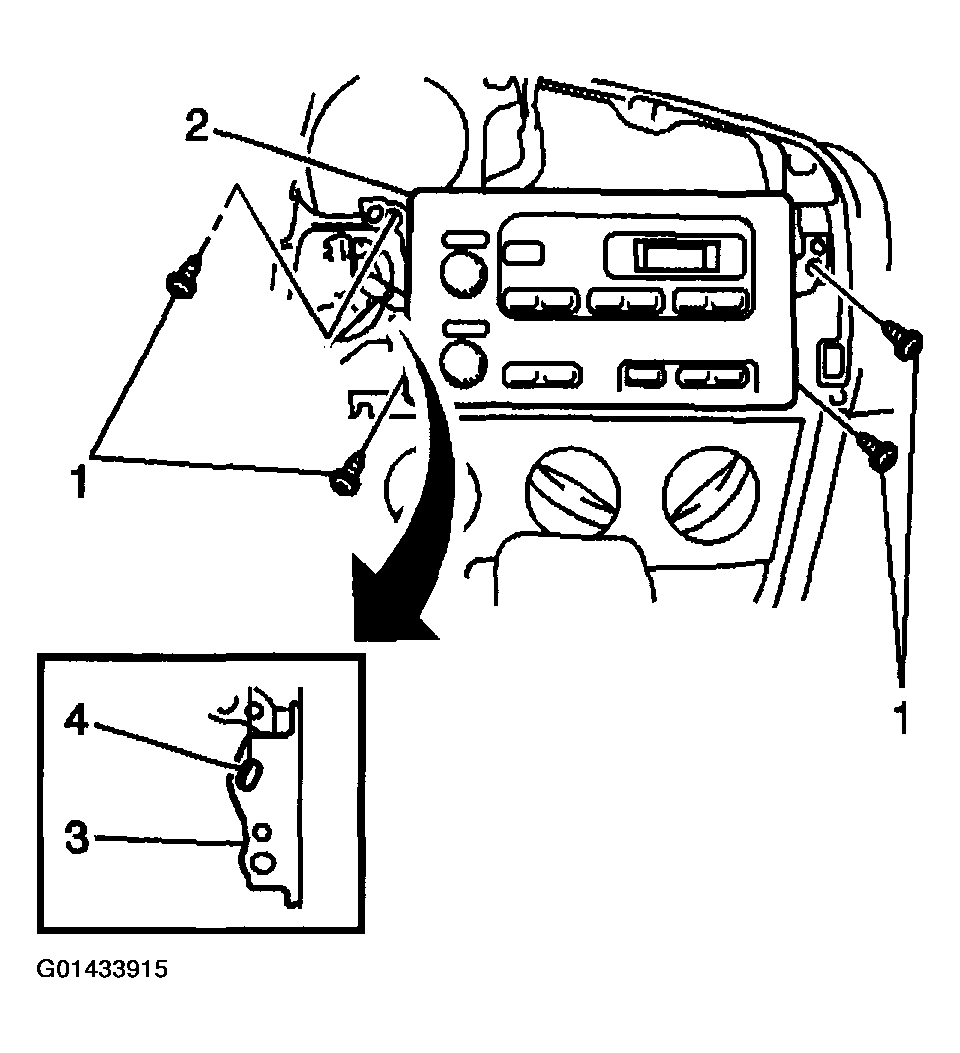

Install the radio (2) to the instrument panel. Secure the radio with the 4 screws (1).
Install the IP accessory center trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.

Fig 2: Connecting Clamp To Radio Receiver Bracket
Courtesy of GENERAL MOTORS CORP.
