Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the passenger side front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  3. Disconnect the electrical connector (3).
  4. Remove the 3 bolts (1).
  5. Remove the compact disc player (2) from the vehicle.

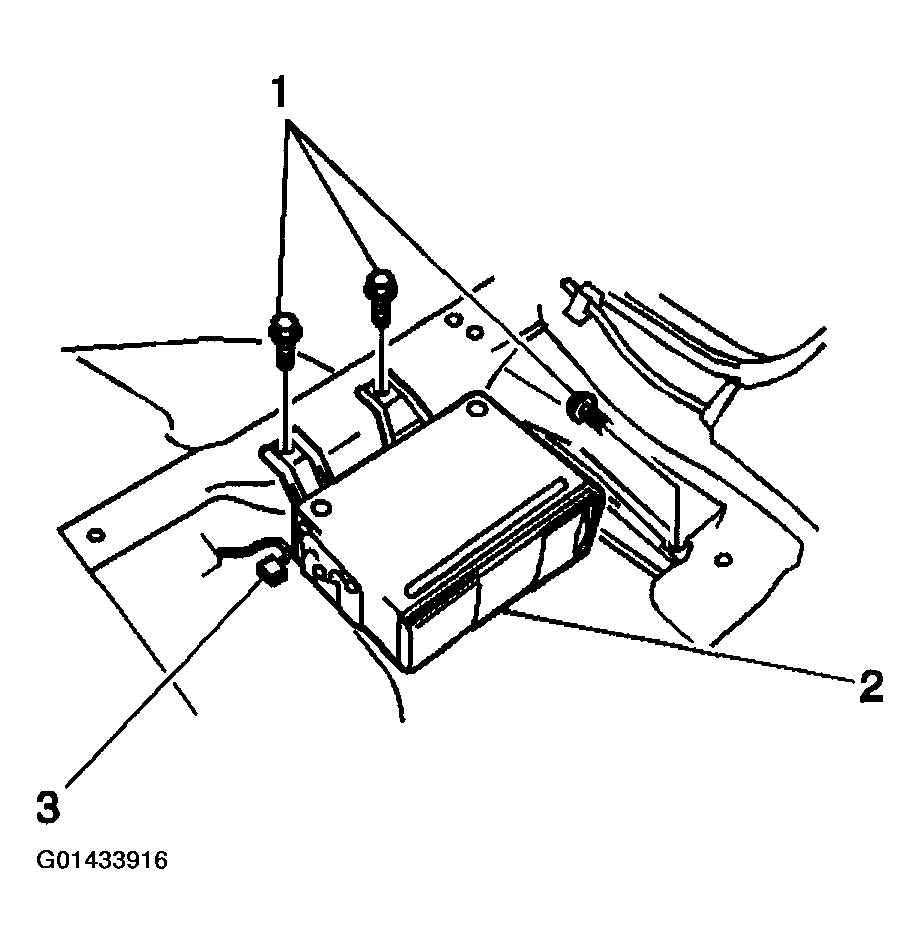

    Fig 1: Removing Compact Disc Player From Vehicle
    G01433916Courtesy of GENERAL MOTORS CORP.
