Component Locations

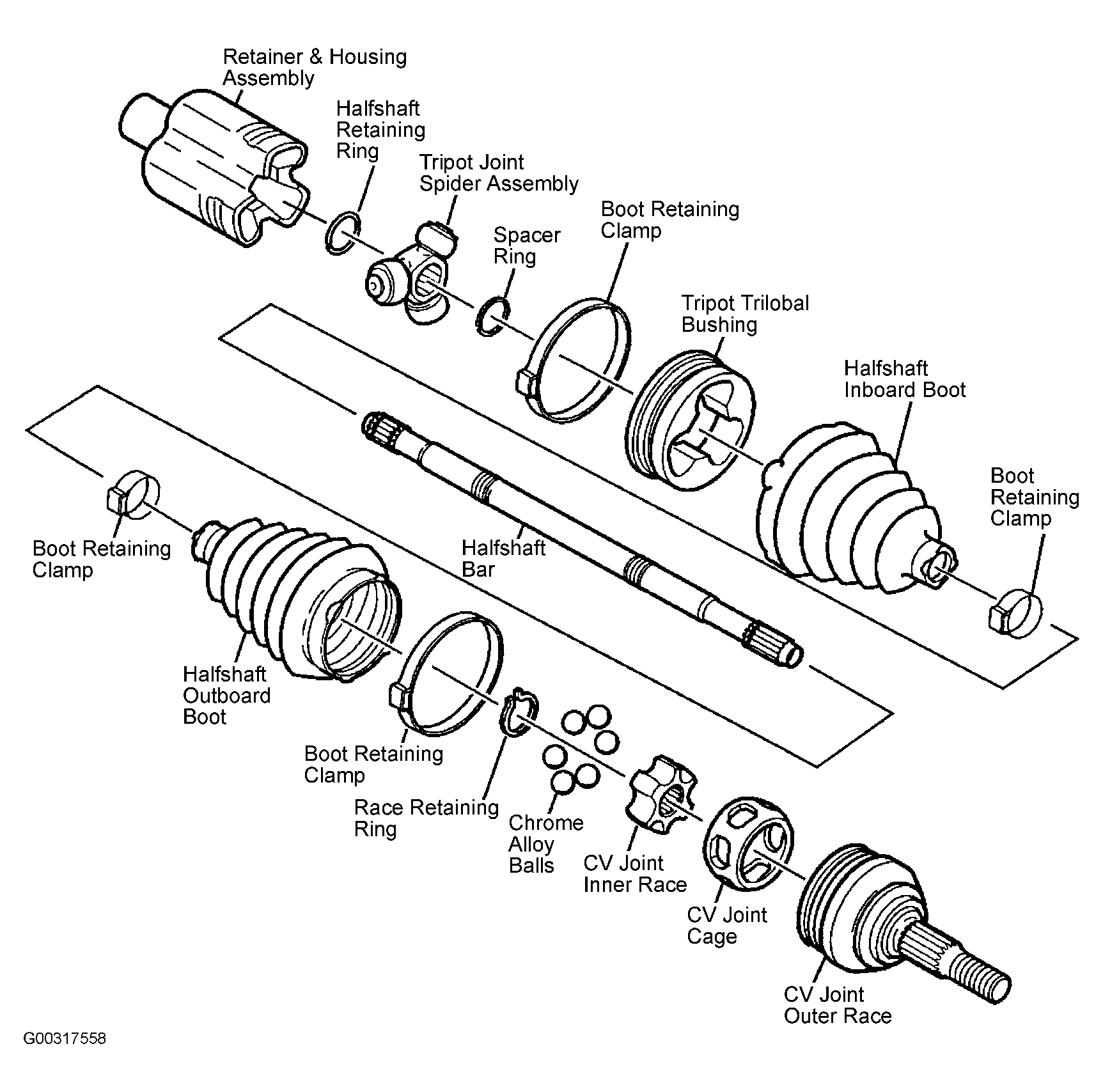

Fig 1: Identifying Axle Shaft Components

G00317558

Courtesy of GENERAL MOTORS CORP.
