ABS Connector End Views

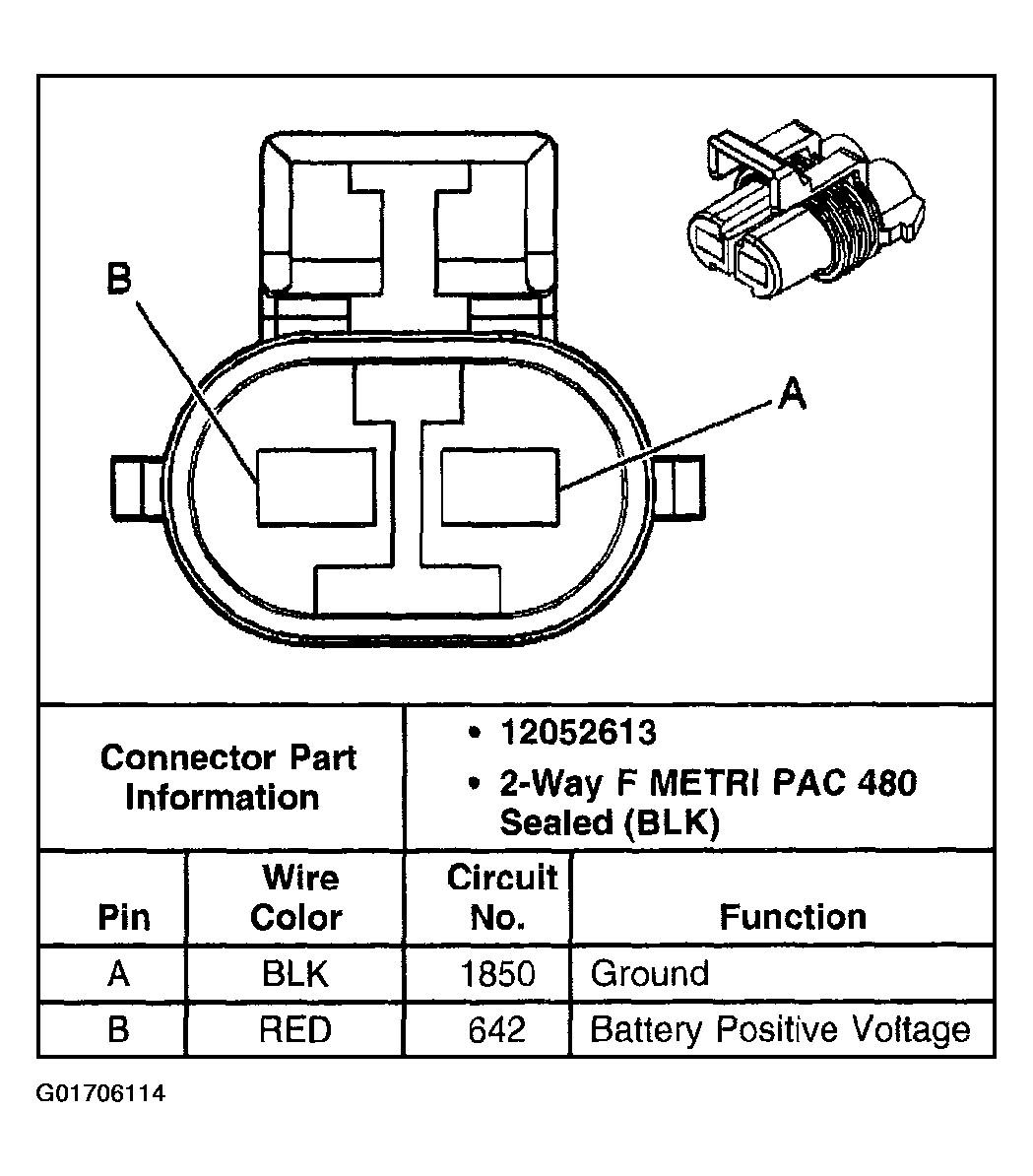

Fig 1: EBCM - C1 Connector End View
G01706114Courtesy of GENERAL MOTORS CORP.

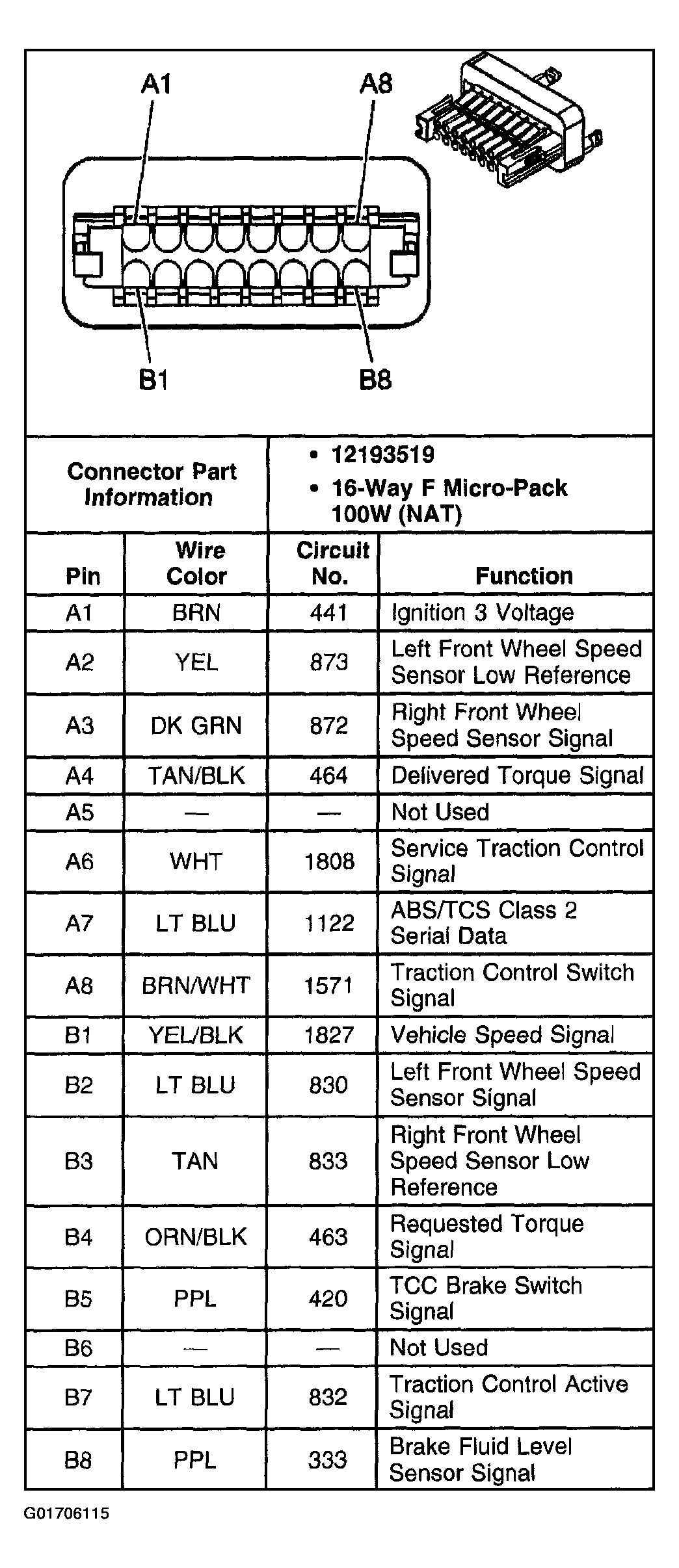

Fig 2: EBCM - C2 Connector End View
G01706115Courtesy of GENERAL MOTORS CORP.
Fig 3: Traction Control Switch Connector End View
G01706116Courtesy of GENERAL MOTORS CORP.

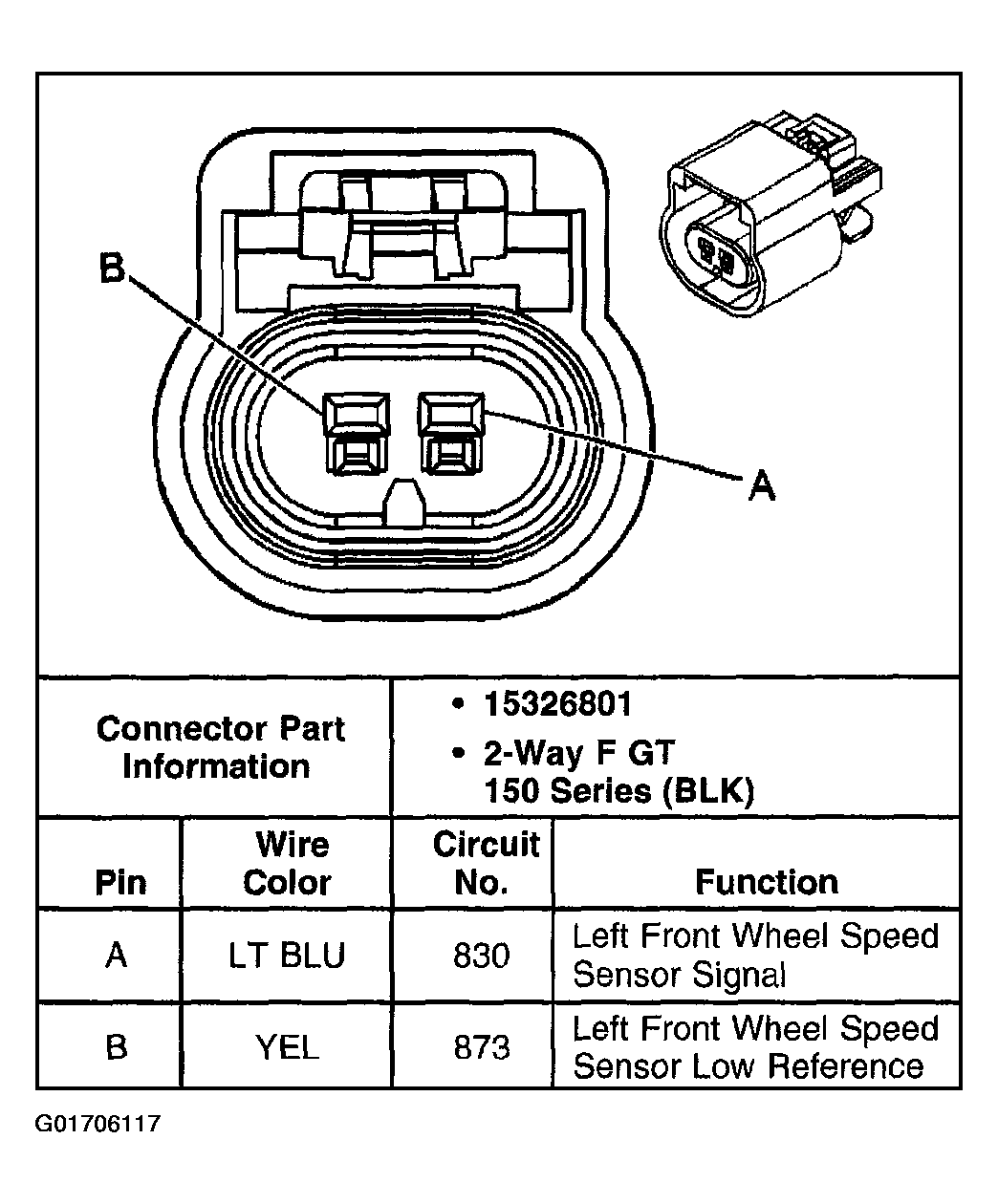

Fig 4: Wheel Speed Sensor - LF Connector End View
G01706117Courtesy of GENERAL MOTORS CORP.

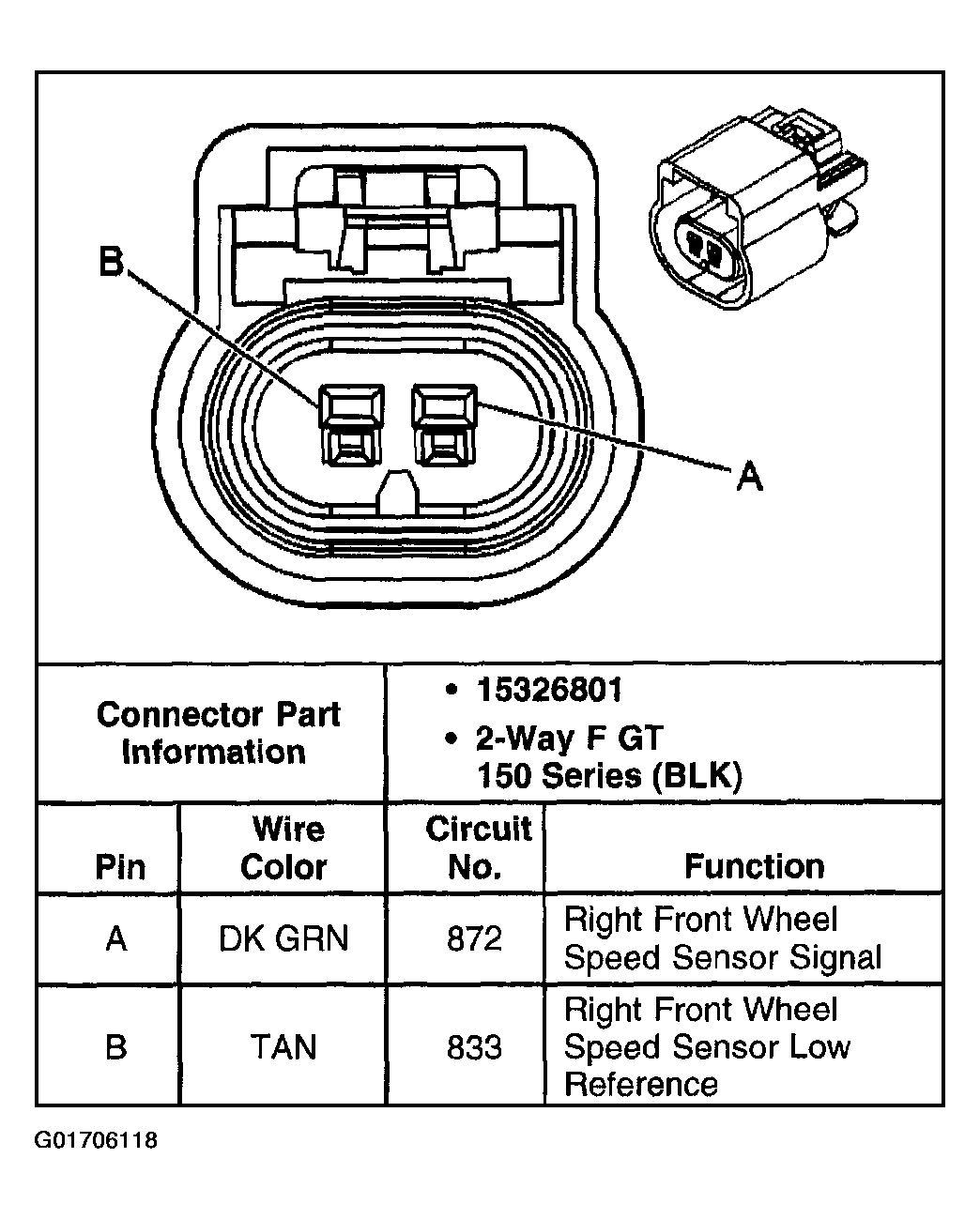

Fig 5: Wheel Speed Sensor - RF Connector End View
G01706118Courtesy of GENERAL MOTORS CORP.
