Transfer Case Disassembled View

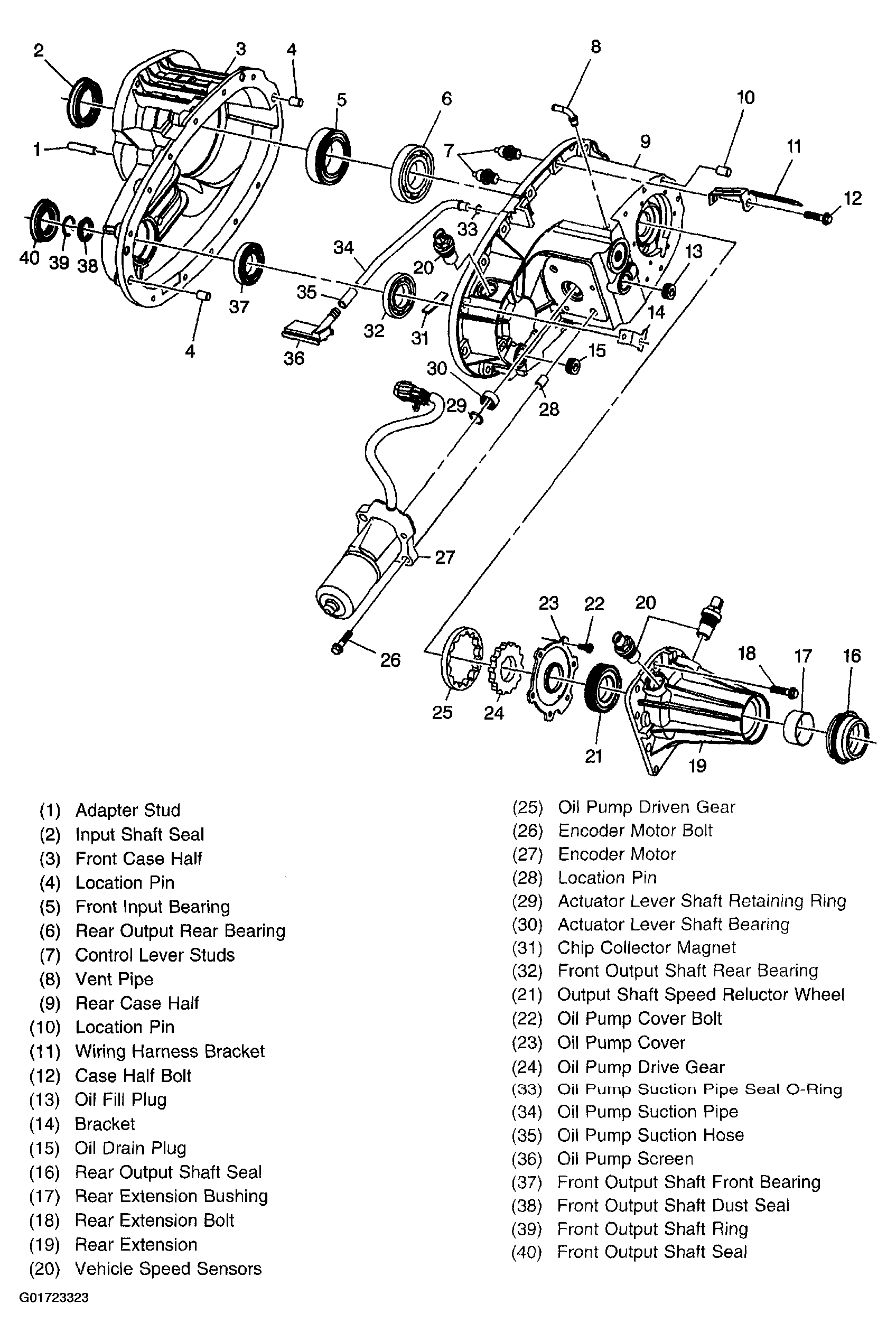

Fig 1: Case Components
G01723323Courtesy of GENERAL MOTORS CORP.

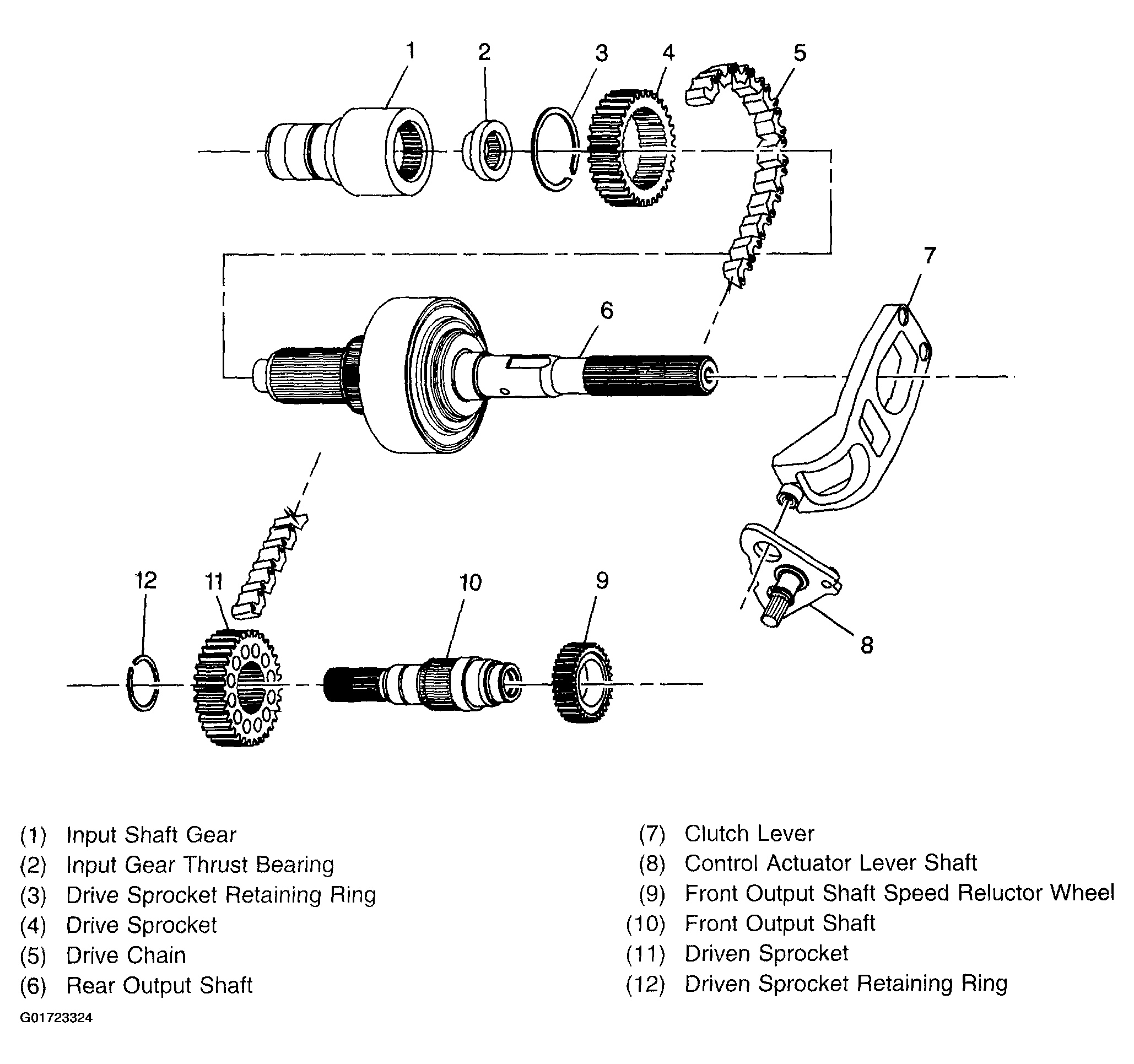

Fig 2: Internal Components
G01723324Courtesy of GENERAL MOTORS CORP.

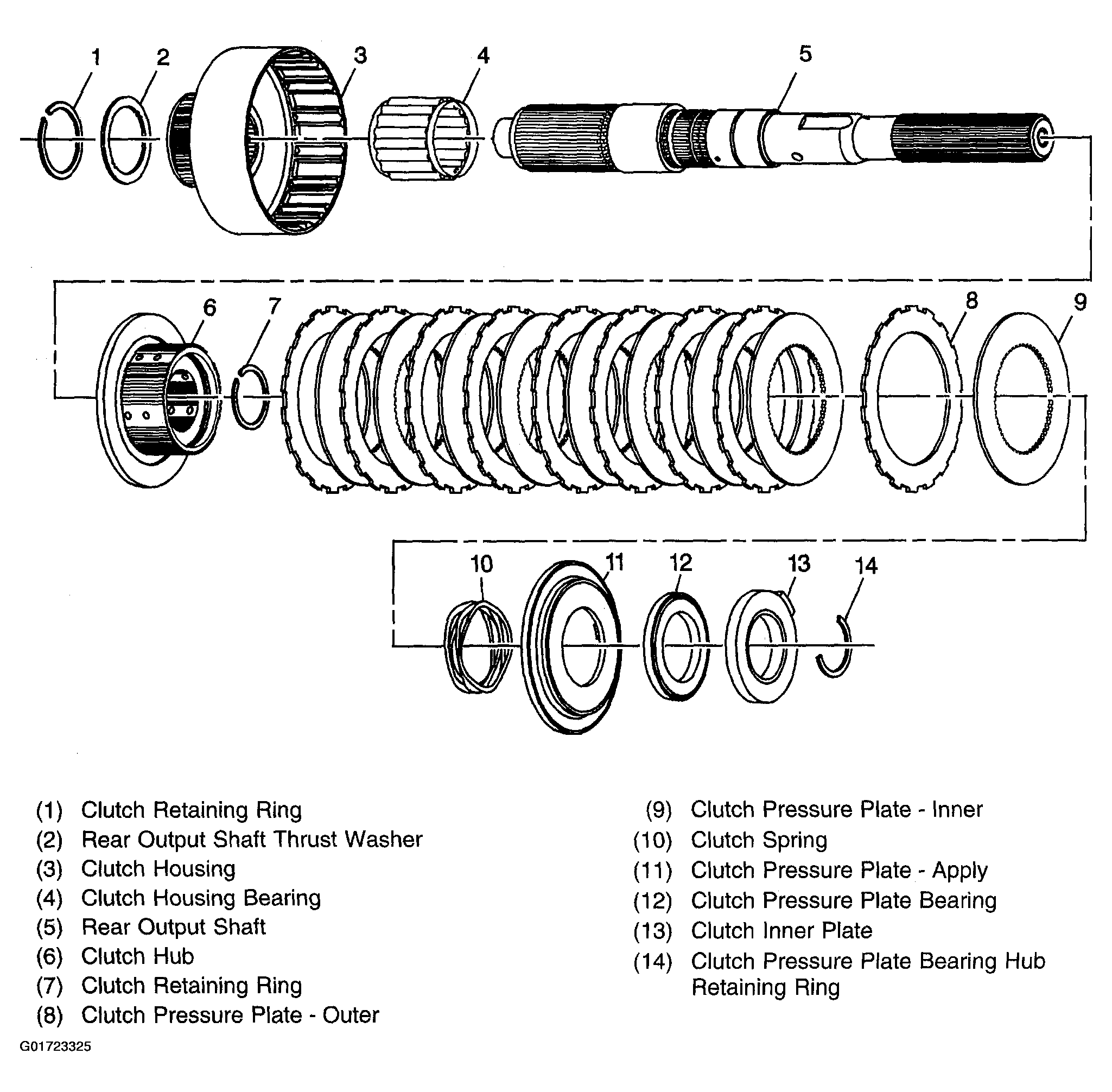

Fig 3: Rear Output Shaft Assembly
G01723325Courtesy of GENERAL MOTORS CORP.
