Transfer Case Control Component Views

Fig 1: Instrument Carrier Support (Lower Left)

Courtesy of GENERAL MOTORS CORP.

1.  Transfer Case Shift Control Module

2.  Instrument Carrier Support, Left Side

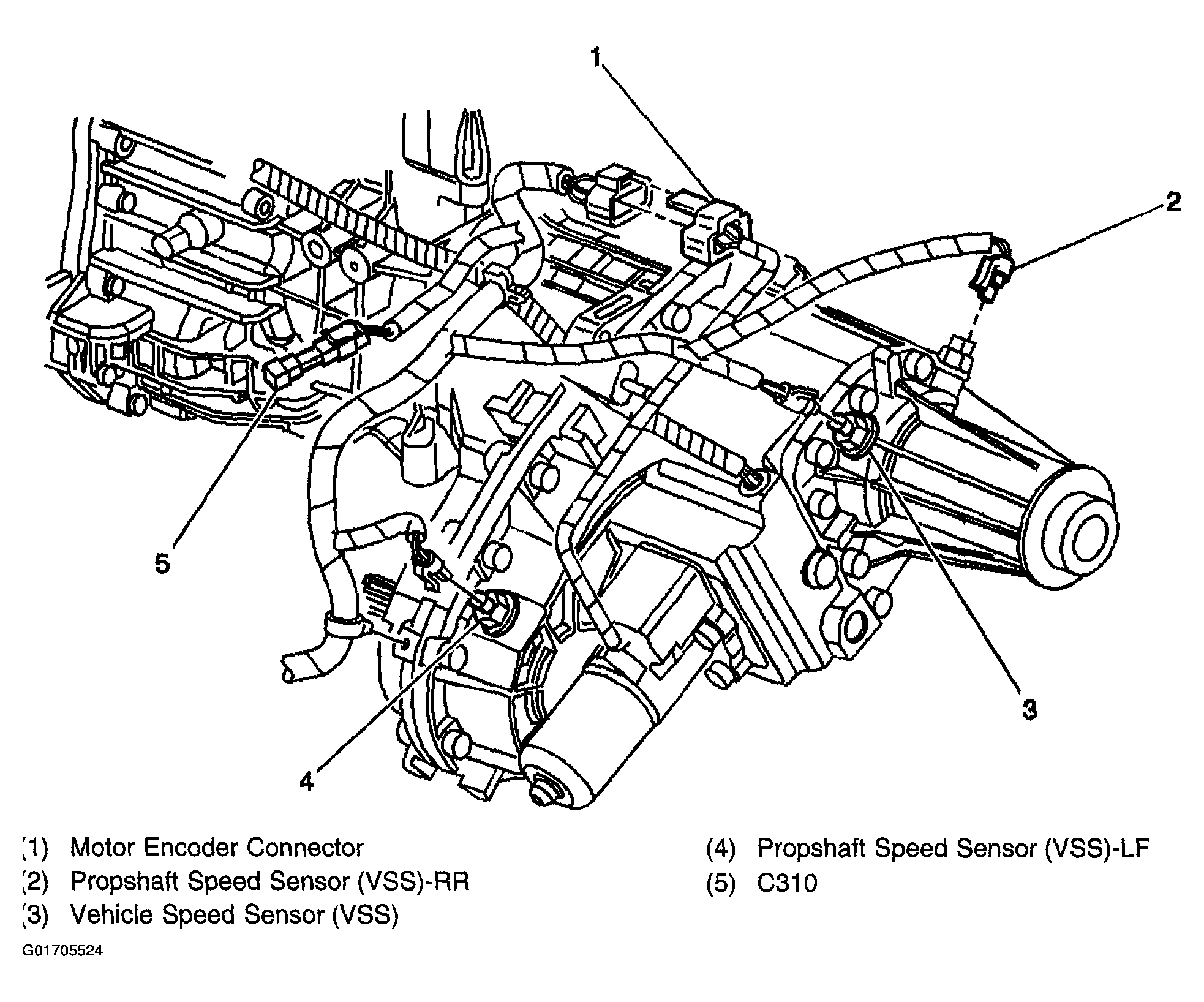

Fig 2: Transfer Case Electrical Components

Courtesy of GENERAL MOTORS CORP.
