Steering Wheel and Column Component Views

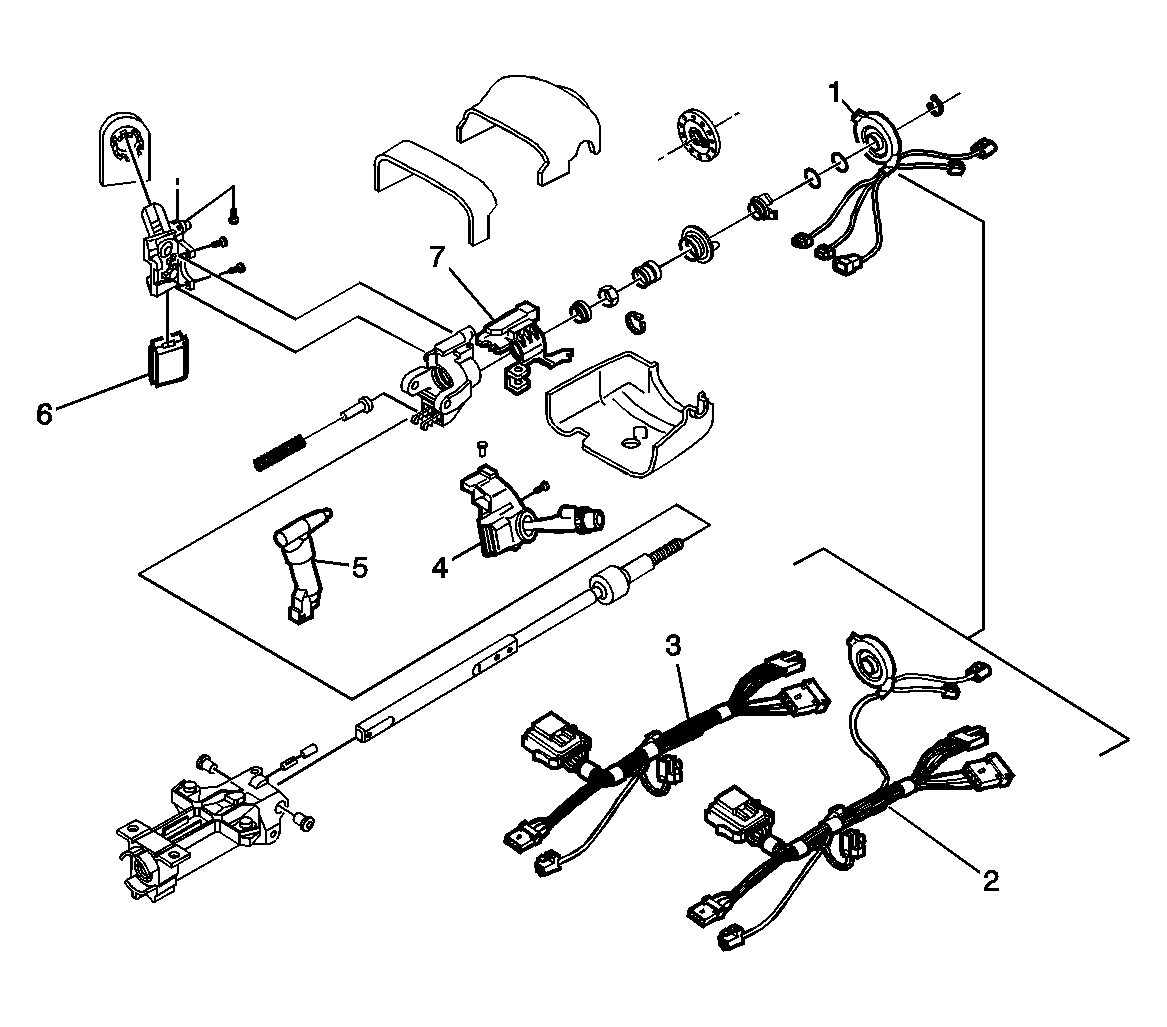

Fig 1: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Coil Wire Harness Assembly (Export)
3	Coil Wire Harness Assembly
4	Multifunction Switch
5	Theft Deterrent Control Module Electric Park Lock
6	Ignition and Key Alarm Switch Assembly
7	Hazard Signal Switch Housing

Fig 2: Ignition Lock Cylinder Control Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Passlock Sensor
3	Ignition Key Alarm Switch
4	Ignition Lock Cylinder Control Actuator
5	Steering Column
