Propshaft Speed Sensor Connector End View - LF Transfer Case

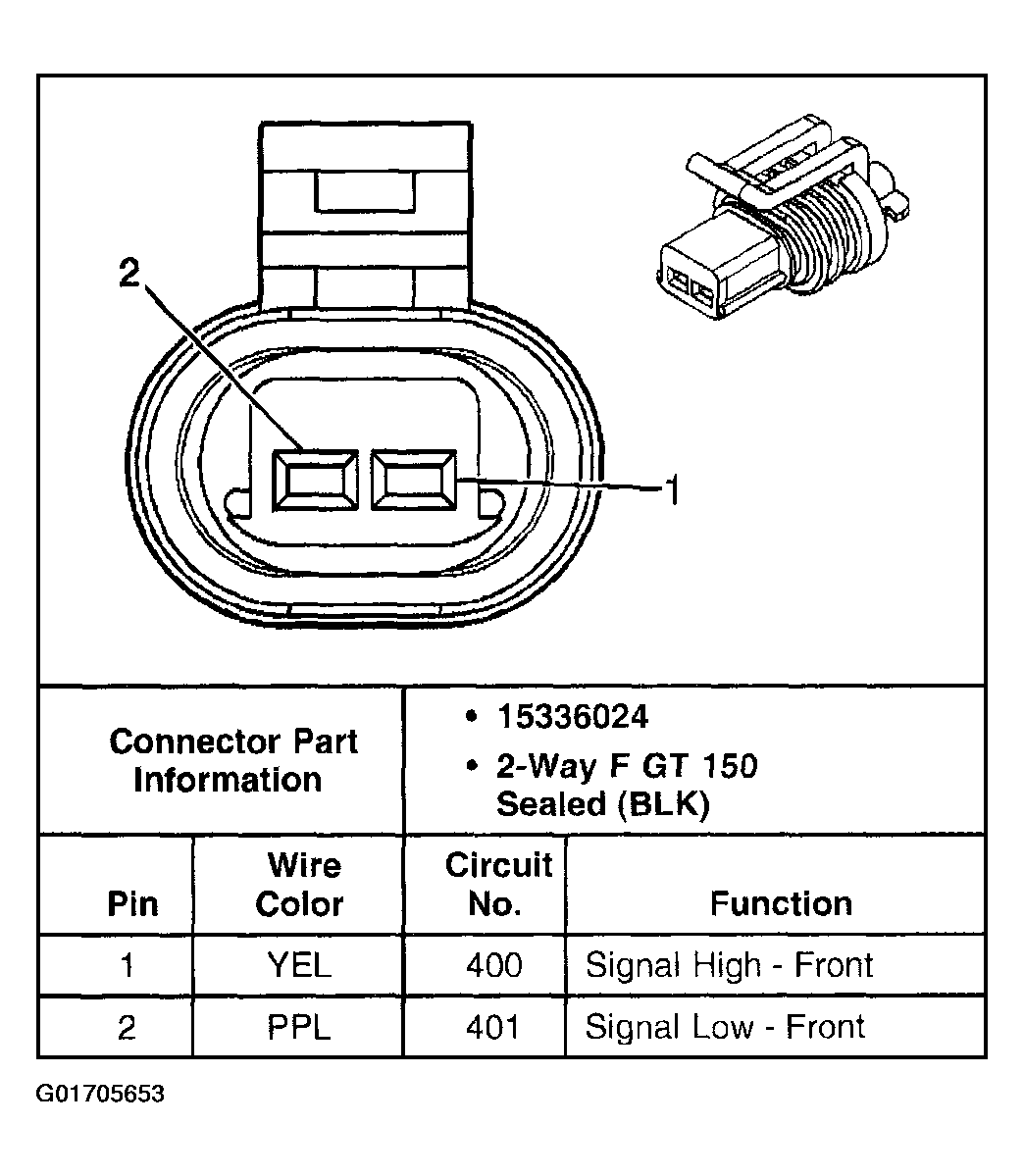

Fig 1: Propshaft Speed Sensor - LF Transfer Case

G01705653

Courtesy of GENERAL MOTORS CORP.
