Engine Block - Front View

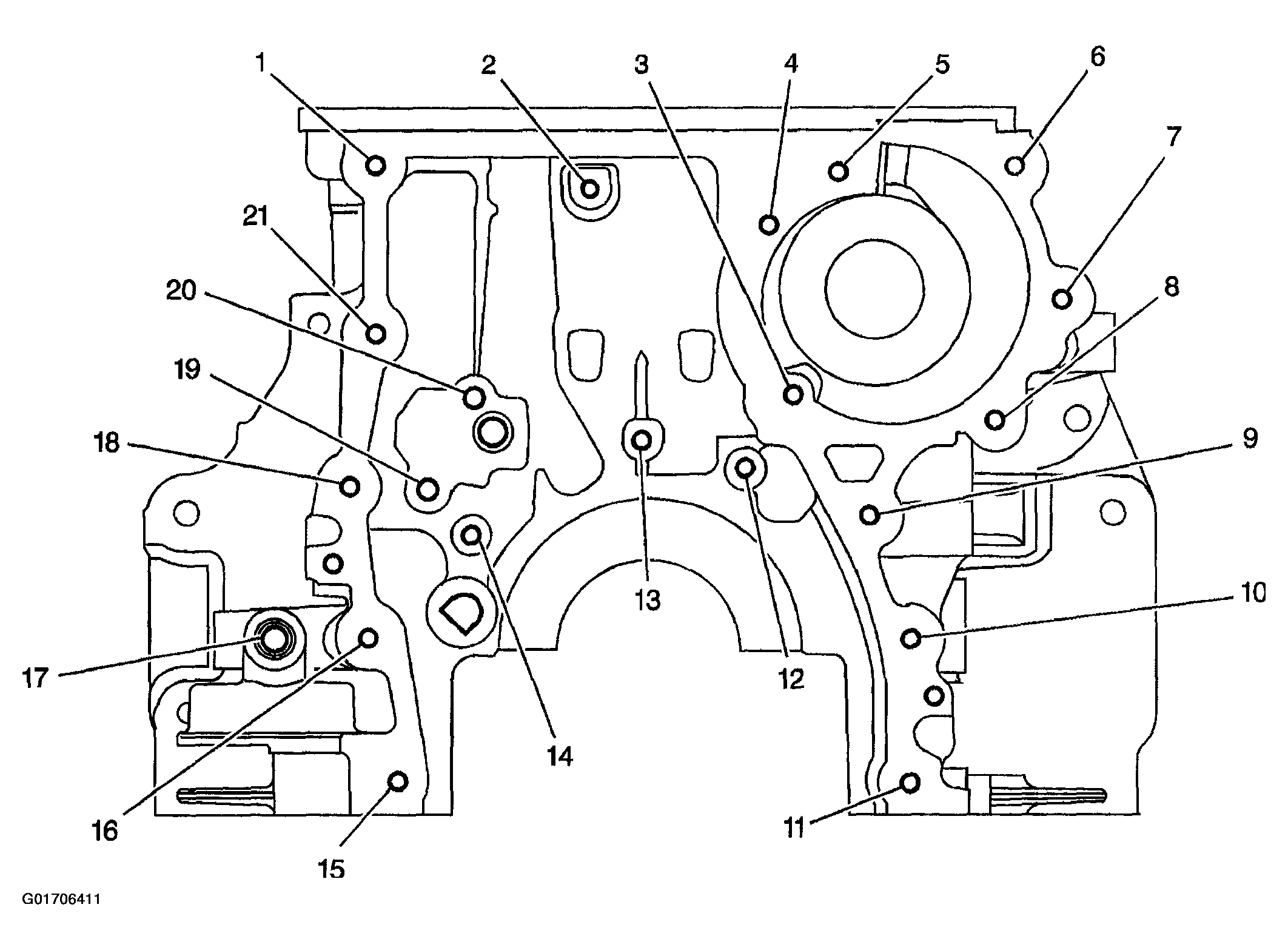

Fig 1: Engine Block - Front View
G01706411Courtesy of GENERAL MOTORS CORP.

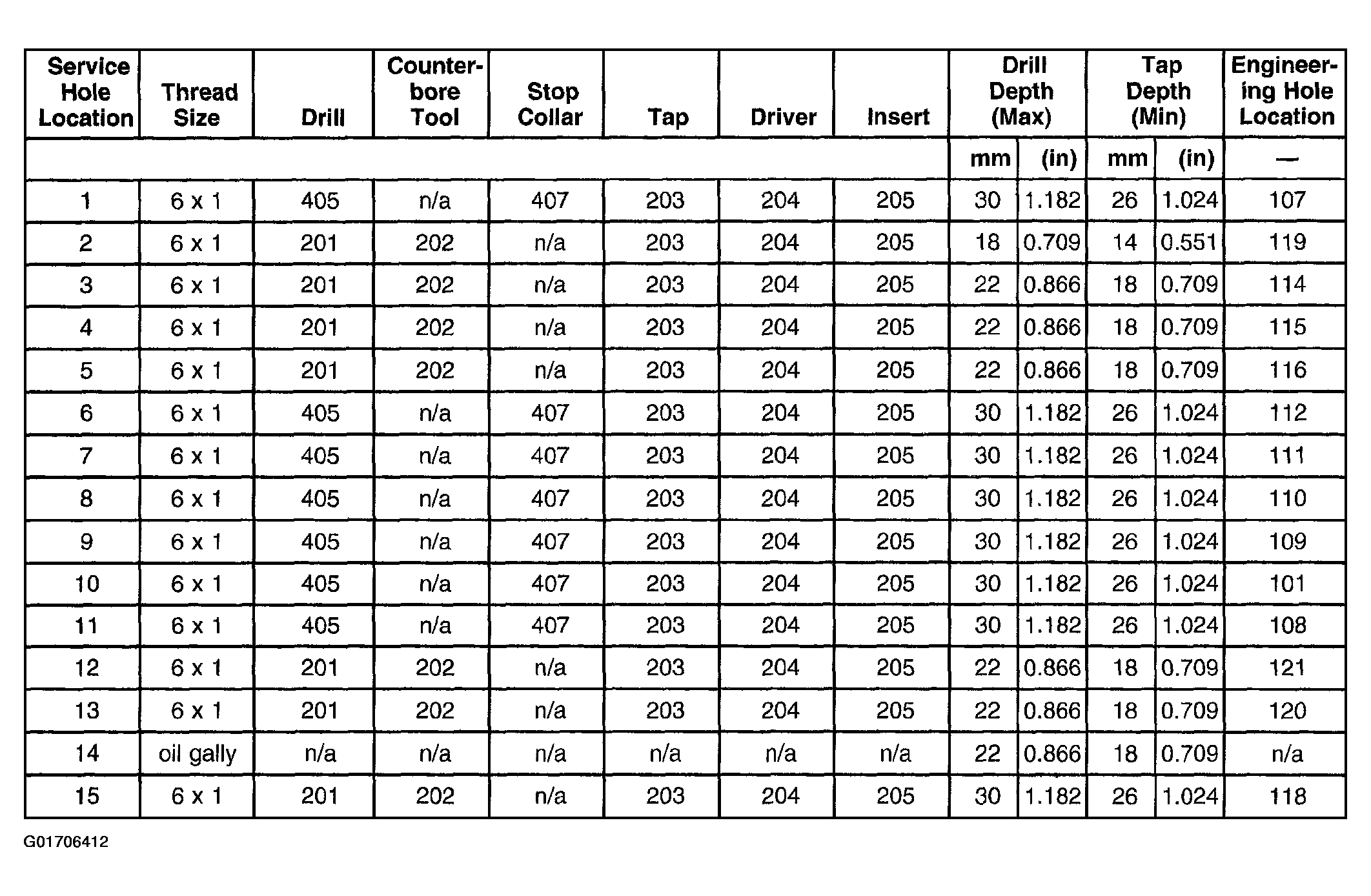

Fig 2: Engine Block - Front View Service Hole Specifications (1 Of 2)
G01706412Courtesy of GENERAL MOTORS CORP.

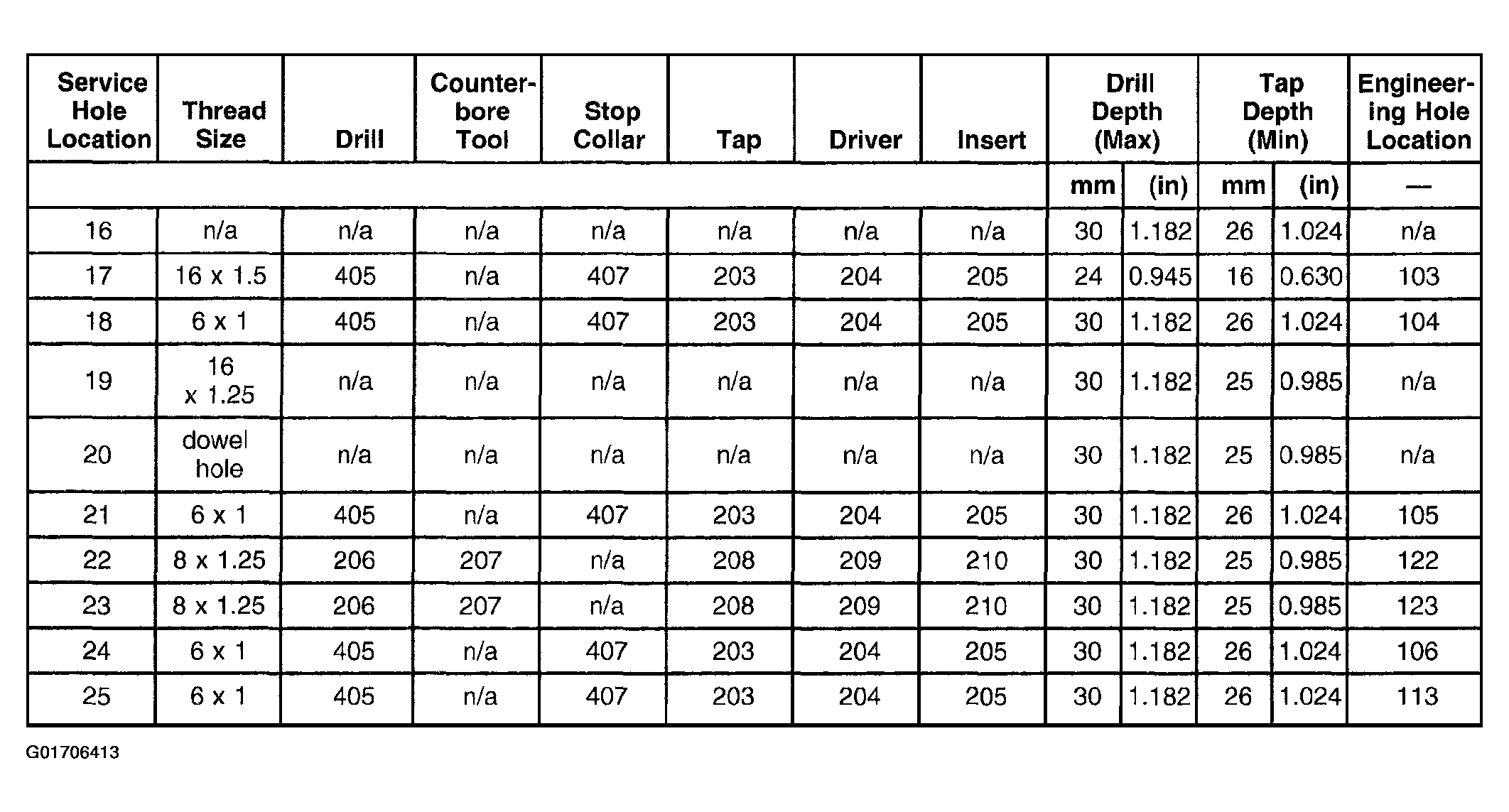

Fig 3: Engine Block - Front View Service Hole Specifications (2 Of 2)
G01706413Courtesy of GENERAL MOTORS CORP.
