Engine Electrical Component Views

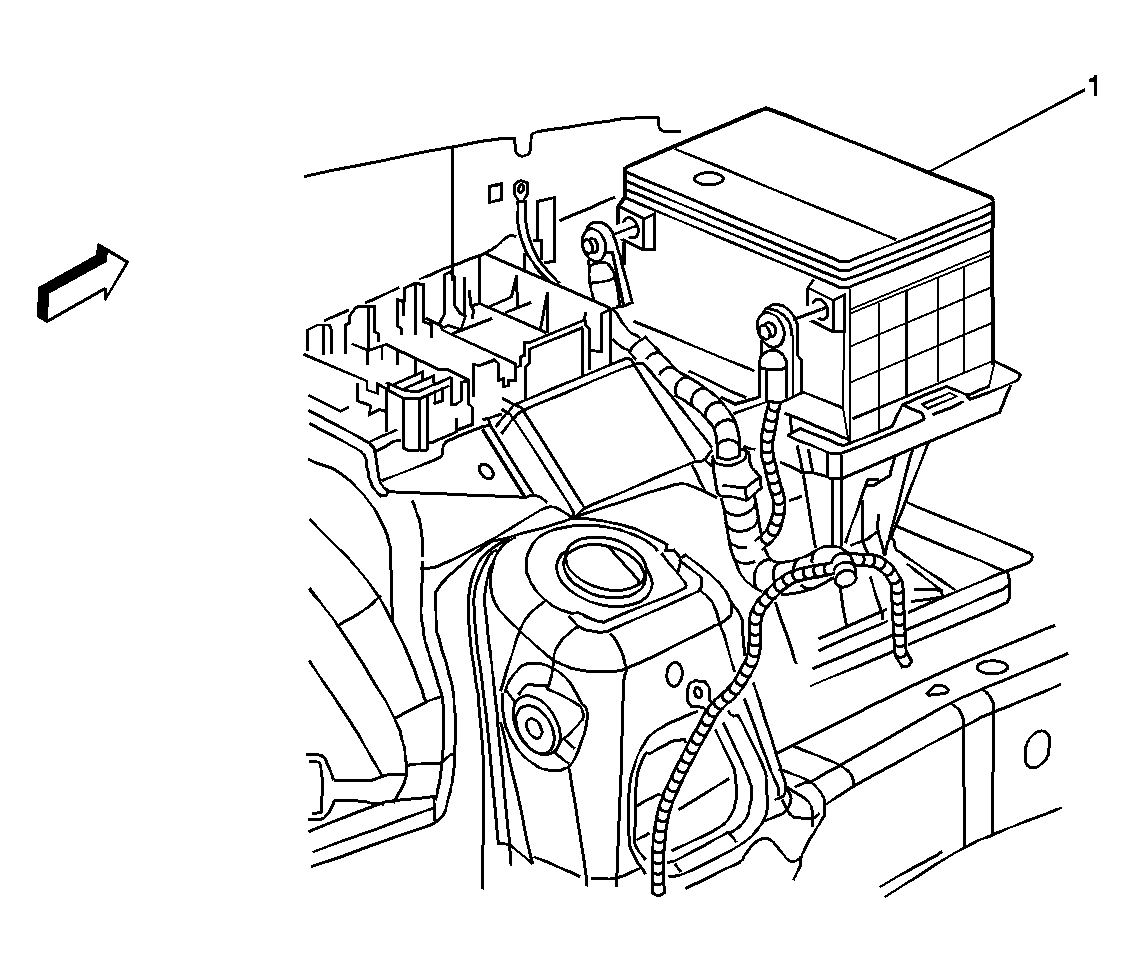

Fig 1: Underhood Compartment Component View - Left Front
GM747586Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
Fig 2: Engine Component View - Left Front (4.2L)
GM747587Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
Fig 3: Engine Component View - Left Side (4.2L)
GM747588Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter

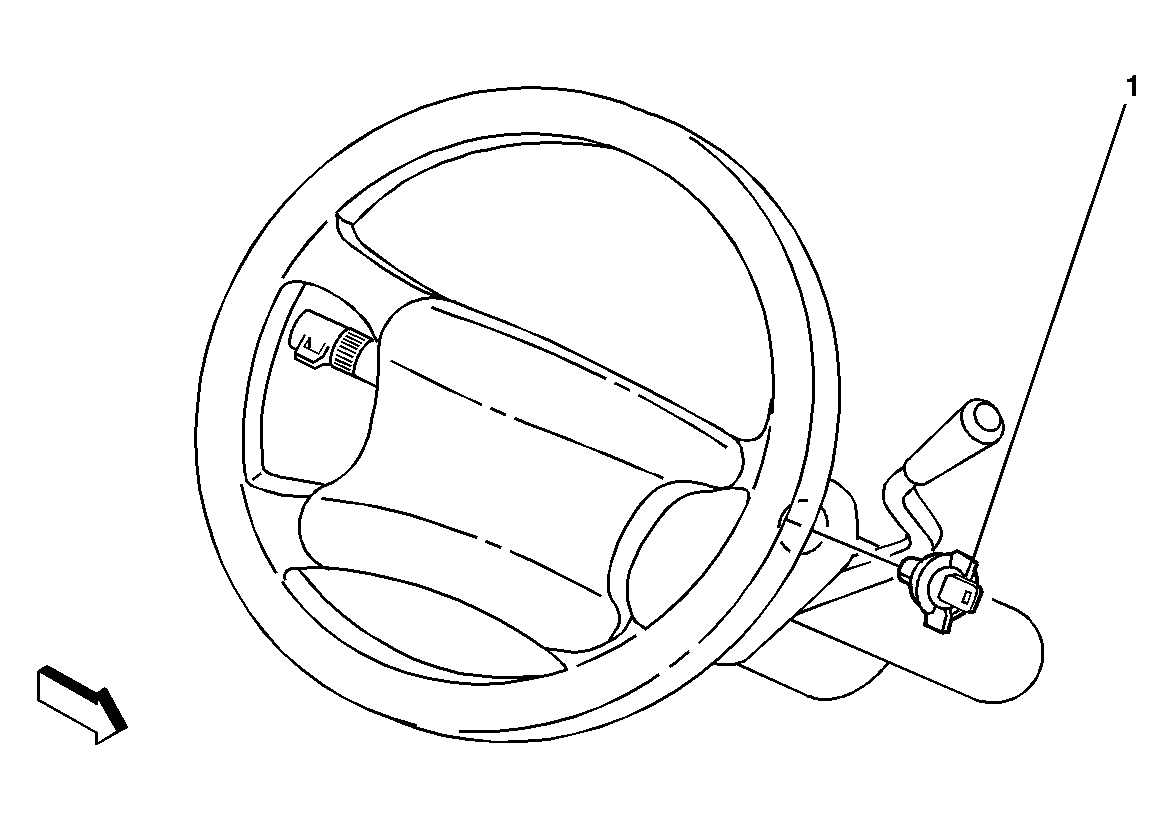

Fig 4: Ignition Switch Component View
GM747591Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
