Wiper/Washer System Schematics

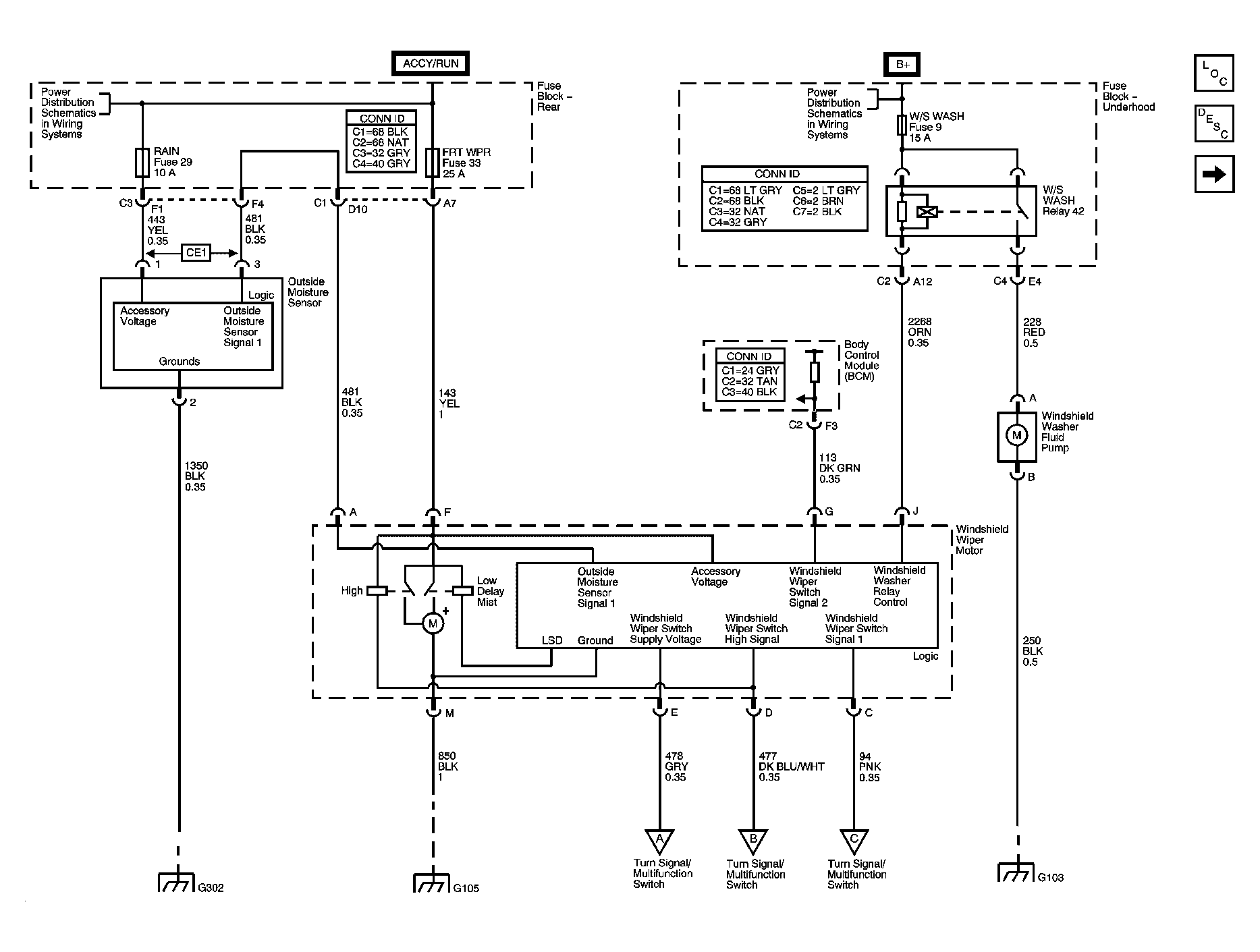

Fig 1: Wiper Motor, Washer Control, & Outside Moisture Sensor Schematics
GM667962Courtesy of GENERAL MOTORS CORP.

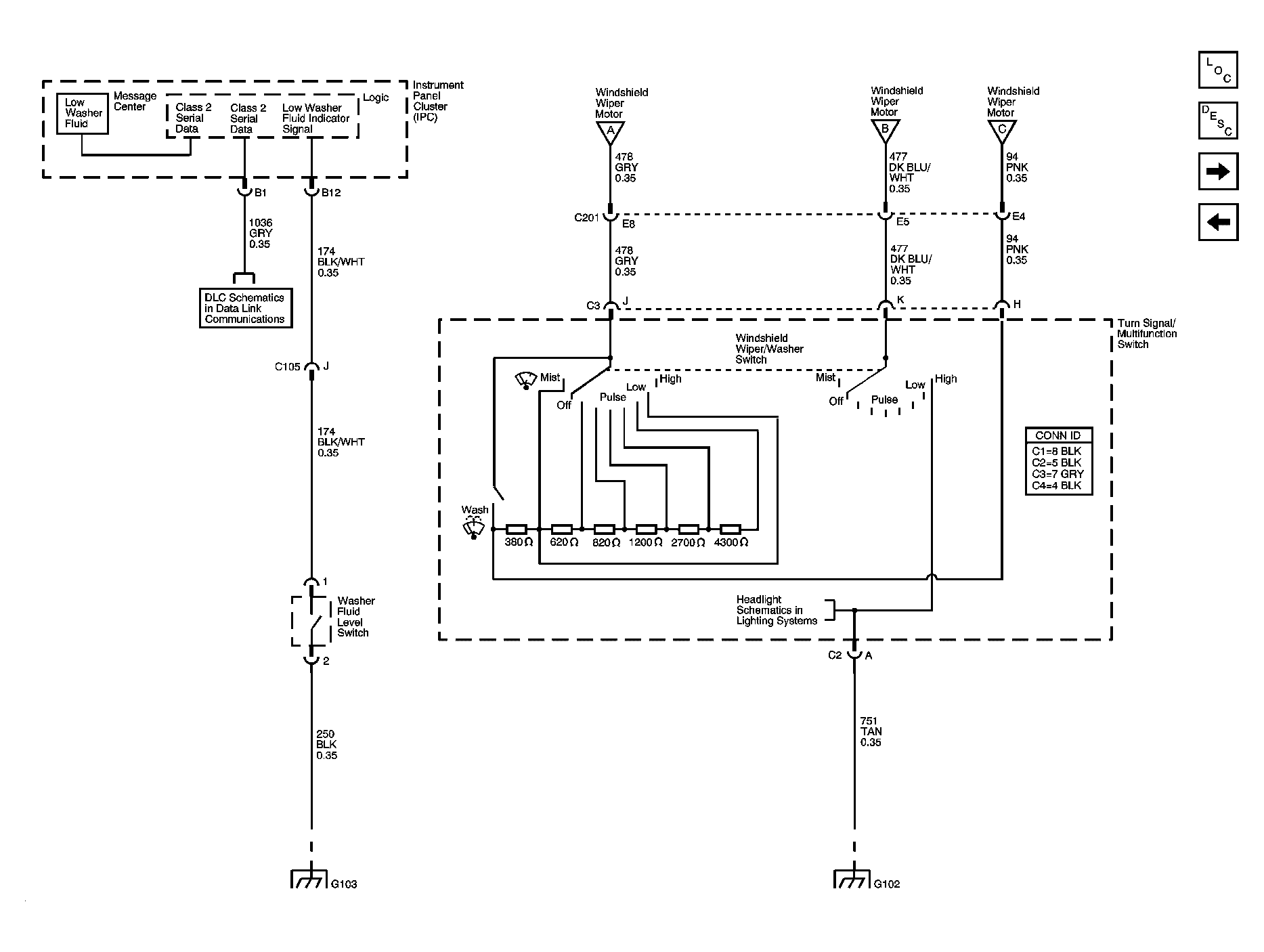

Fig 2: Wiper/Washer Switch & Washer Fluid Level Switch Schematics
GM667967Courtesy of GENERAL MOTORS CORP.
Fig 3: Headlamp Washer Schematics
GM667971Courtesy of GENERAL MOTORS CORP.

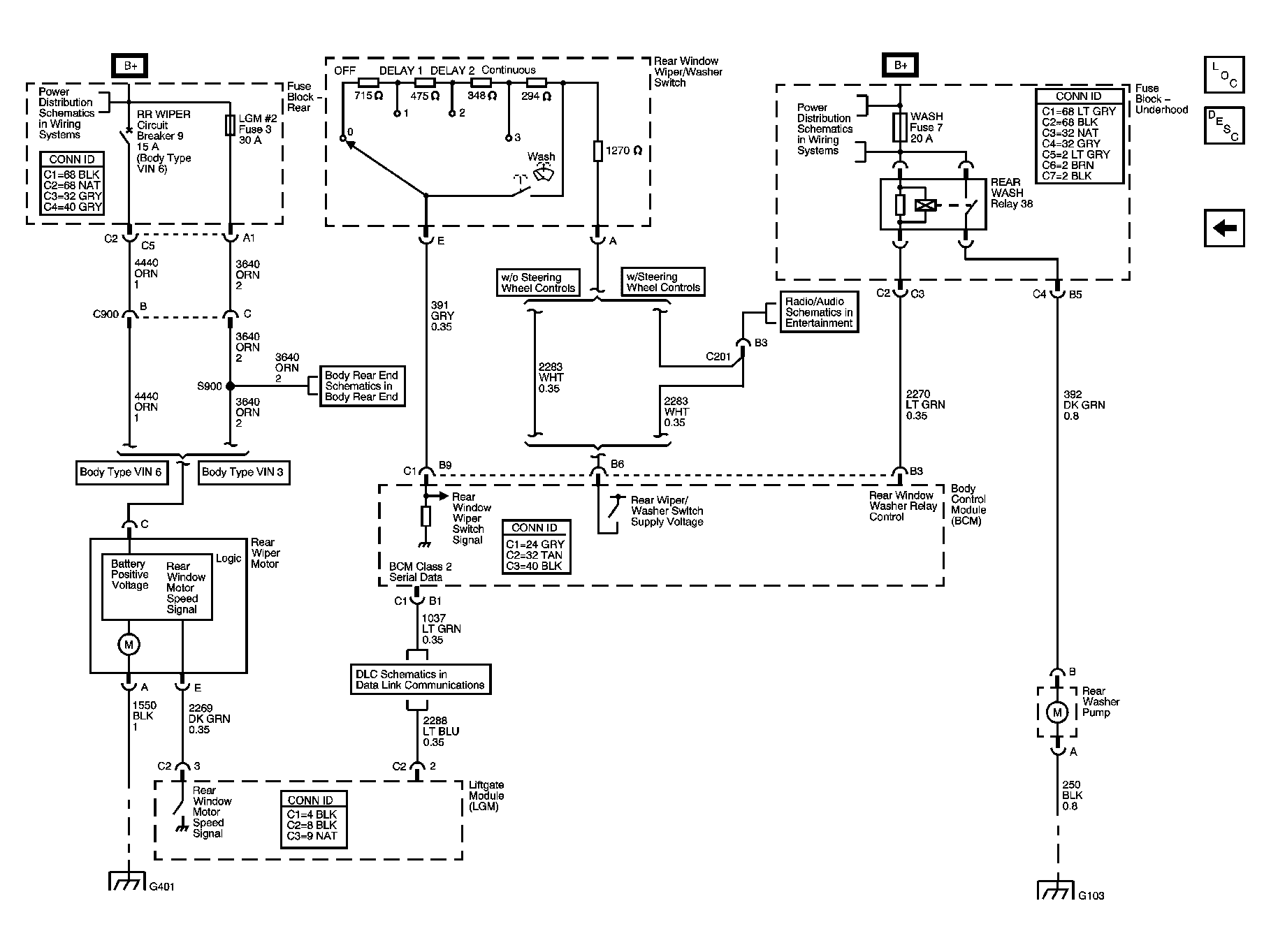

Fig 4: Rear Wiper/Washer Schematics
GM667973Courtesy of GENERAL MOTORS CORP.
