Lighting Systems Component Views

Fig 1: Front Lamps Component View, GMC

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp-Left
2	Headlamp Connector
3	Marker Lamp
4	Park/Turn Signal Lamp

Fig 2: Fog Lamp & Cornering Lamp Component View, GMC

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp
2	Cornering Lamp

Fig 3: Fog Lamp Component View, Chevrolet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Fog Lamp

Fig 4: Front Lamps Component View, Chevrolet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp-Left
2	Headlamp Connector
3	Fog Lamp Connector
4	Park/Turn Signal Lamp
5	Marker Lamp

Fig 5: Front Lamps Component View, Oldsmobile

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Connector
2	Fog Lamp
3	Cornering Lamp
4	Marker Lamp
5	Forward Lamp Harness
6	Park/Turn Lamp

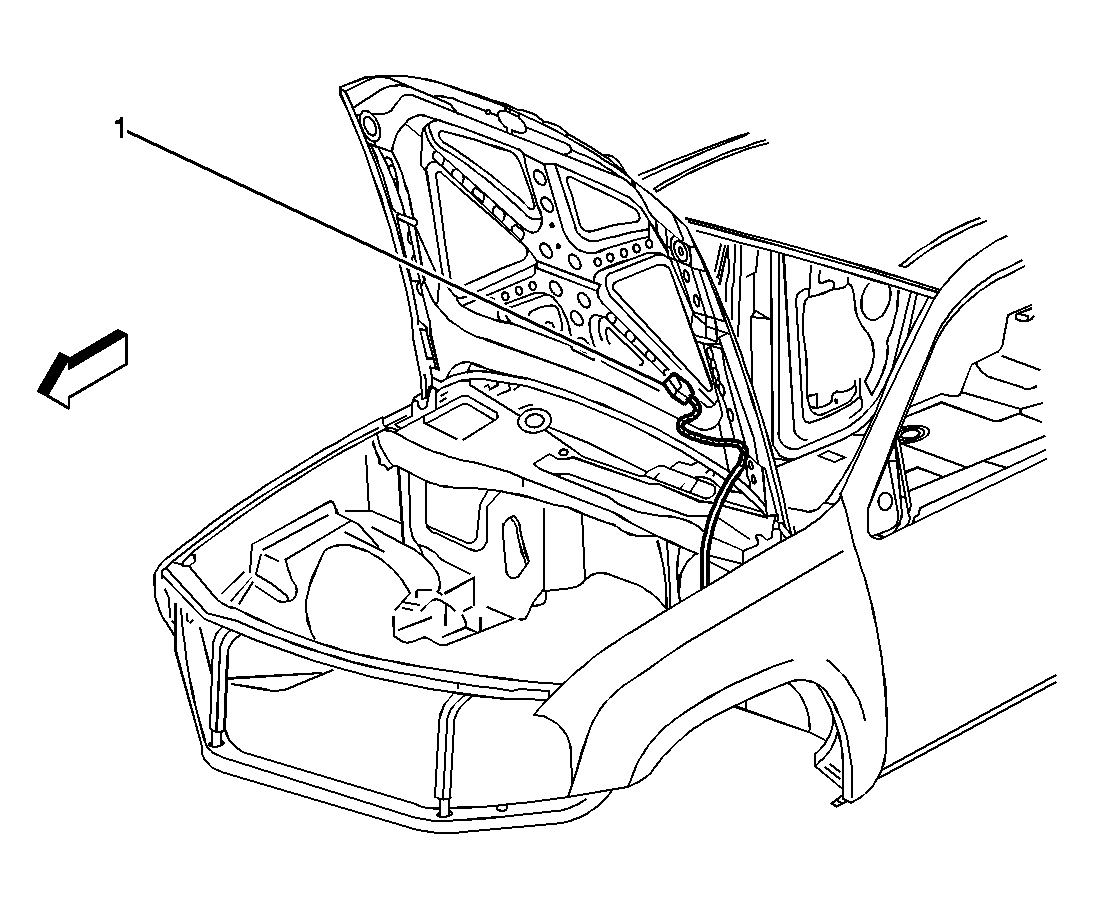

Fig 6: Underhood Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp

Fig 7: Automatic Transmission, Left Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Switch

Fig 8: Courtesy Lamp & Headlamp Switch Connectors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy Lamp
2	Headlamp Switch Connectors

Fig 9: Stop Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch

Fig 10: Multi-Function Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multi-function Switch
2	C201

Fig 11: Hazard Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Steering Column

Fig 12: Cutaway View of Left Sunshade & Vanity Mirror Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamps, LF

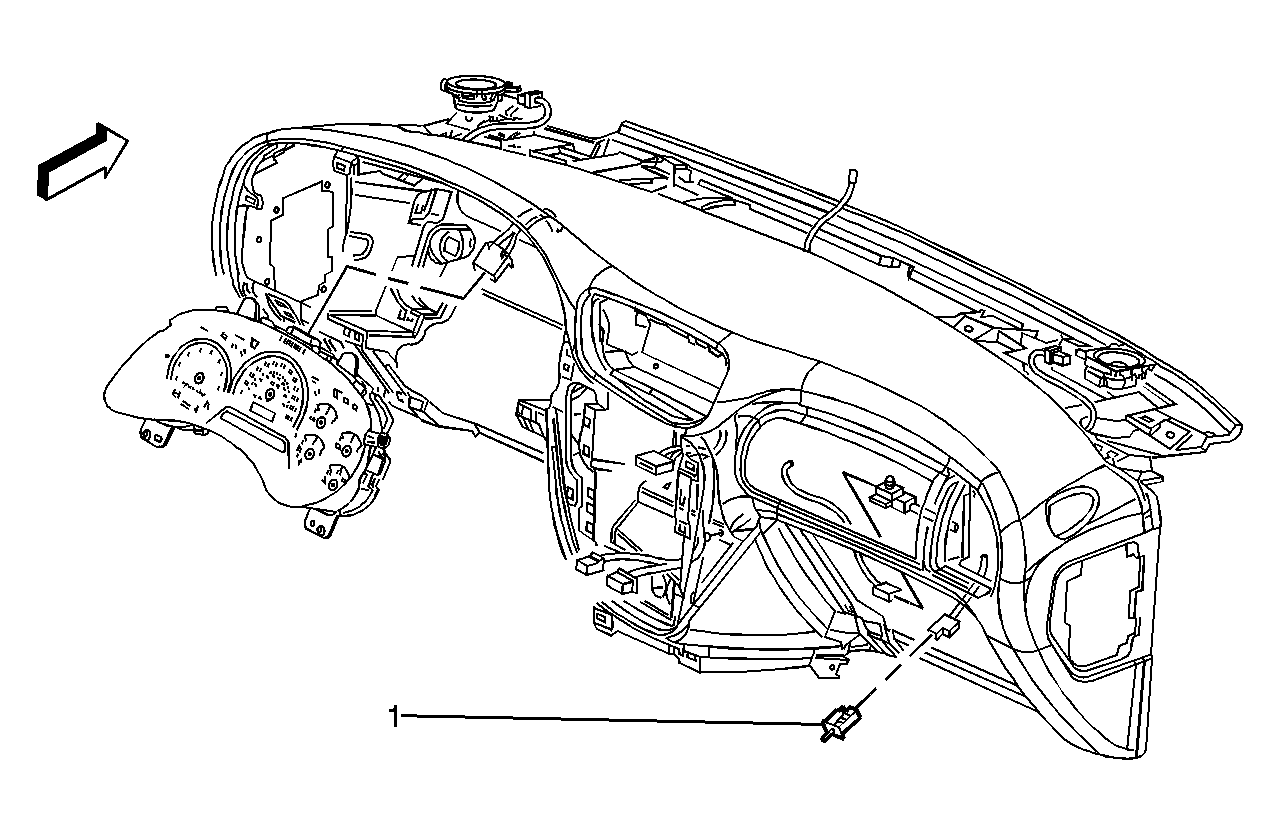

Fig 13: I/P Compartment Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp

Fig 14: Turn Signal/Hazard Flasher Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left IP Harness
2	Turn Signal/Hazard Flasher Module

Fig 15: Courtesy/Reading Lamps & Cargo Lamps Component View (Short Wheelbase Shown, Long Wheelbase Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp-LF
2	Courtesy/Reading Lamp-LR
3	Cargo Lamp
4	Headliner
5	Courtesy/Reading Lamp-RR
6	Courtesy/Reading Lamp-RF

Fig 16: Door Jamb Switch Component View, Miniwedge-LR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch, Miniwedge-LR

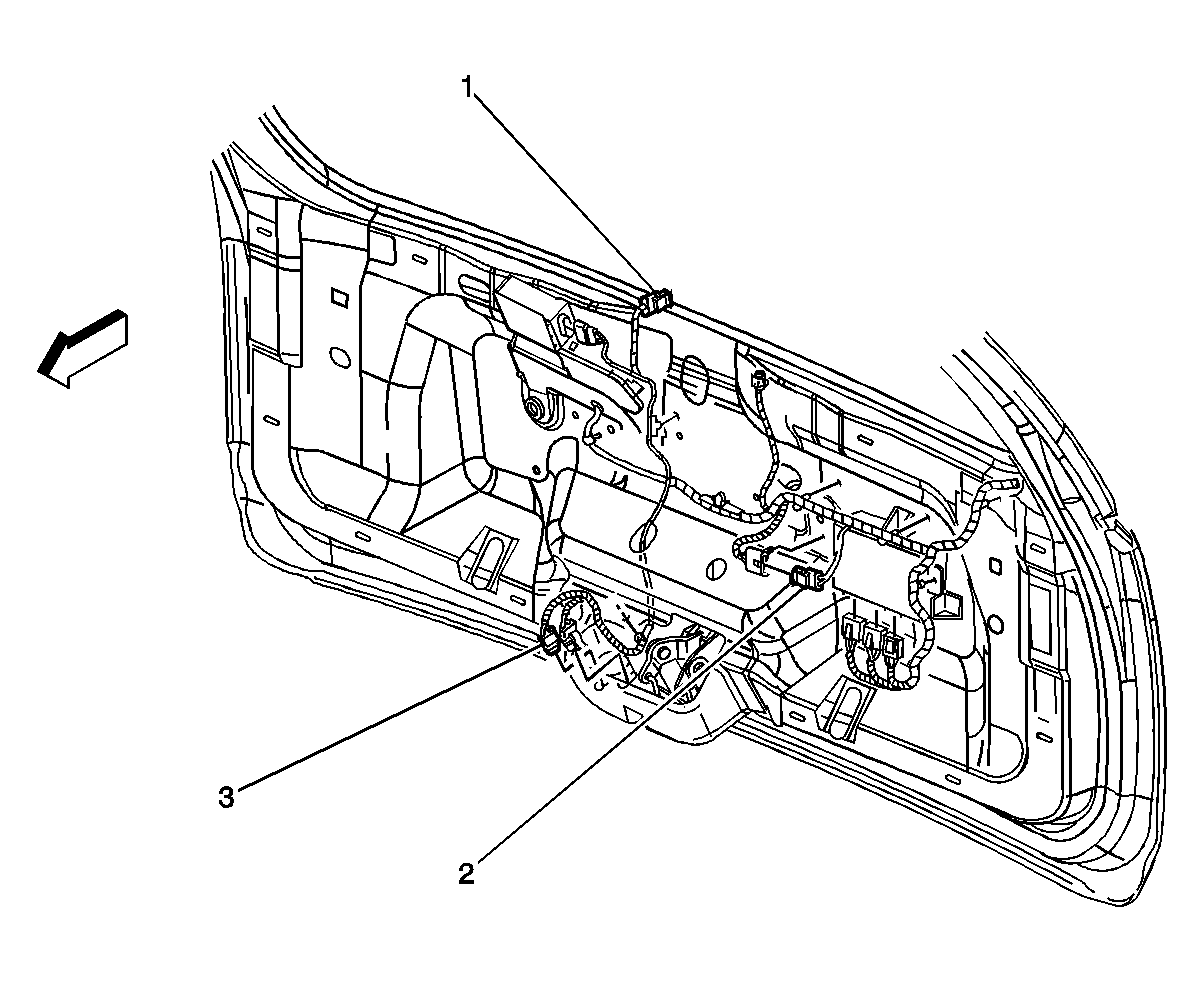

Fig 17: Liftgate Ajar Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftglass Ajar Switch
2	License Plate Lamp Connector
3	Liftgate Ajar Switch

Fig 18: Tail Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	Tail Lamp Connector
3	Tail Lamp

Fig 19: Backup Lamps Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamps

Fig 20: Center High-Mounted Stop Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Frame Above Body Back Opening
2	Tail Lamp Connector
3	Tail Lamp

Fig 21: Trailer Connector Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Trailer Connector
