Home >> Oldsmobile >> 2002 >> Alero GLS, 4D Sedan >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> Repair Instructions >> Remote Control Door Lock Receiver Replacement >> Installation Procedure

Installation Procedure

  1. Connect the electrical connector.
  2. Install the receiver through the access hole. Snap the mounting tabs into place.
  3. Install the rear compartment lamp housing. Refer to REAR COMPARTMENT LAMP REPLACEMENT in Lighting Systems.
  4. Reprogram the new receiver to transmitters. Refer to Transmitter Programming  .

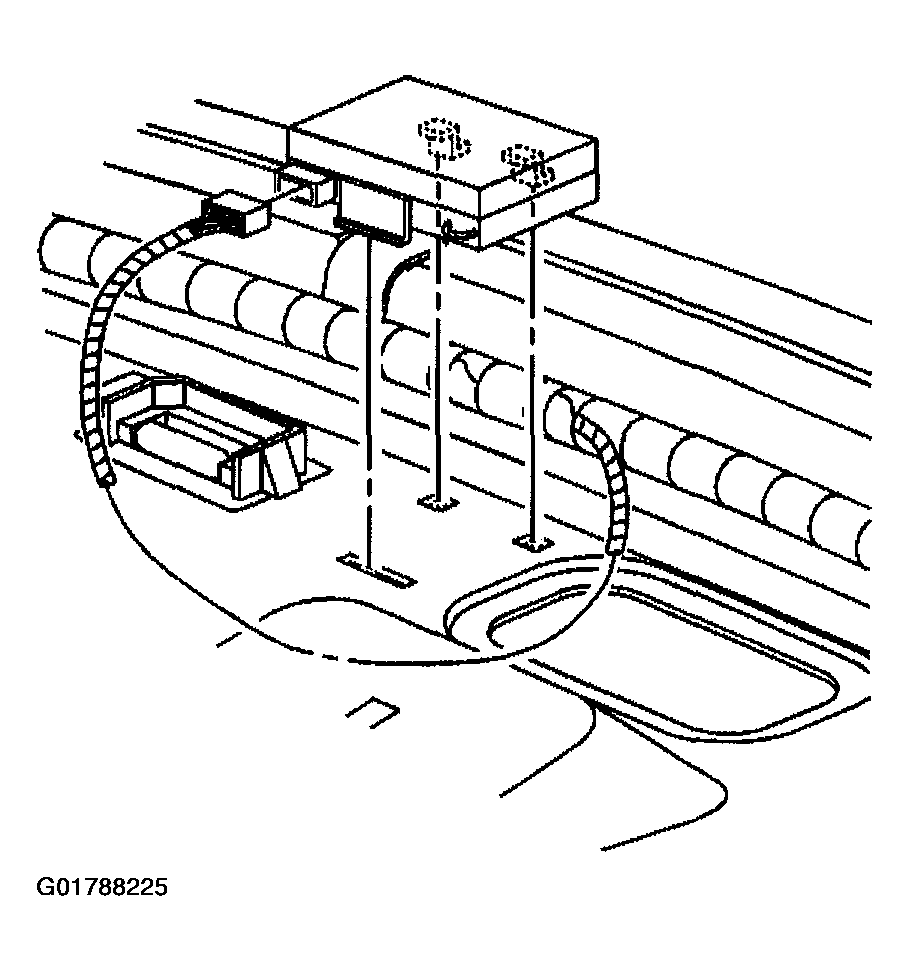

    Fig 1: Installing Remote Control Door Lock Receiver
    G01788225Courtesy of GENERAL MOTORS CORP.
