Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Install the floor shift control indicator lamp socket to the trim bezel, then rotate the socket clockwise to secure.
  3. Install the floor shift control trim bezel and screws.
  4. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE

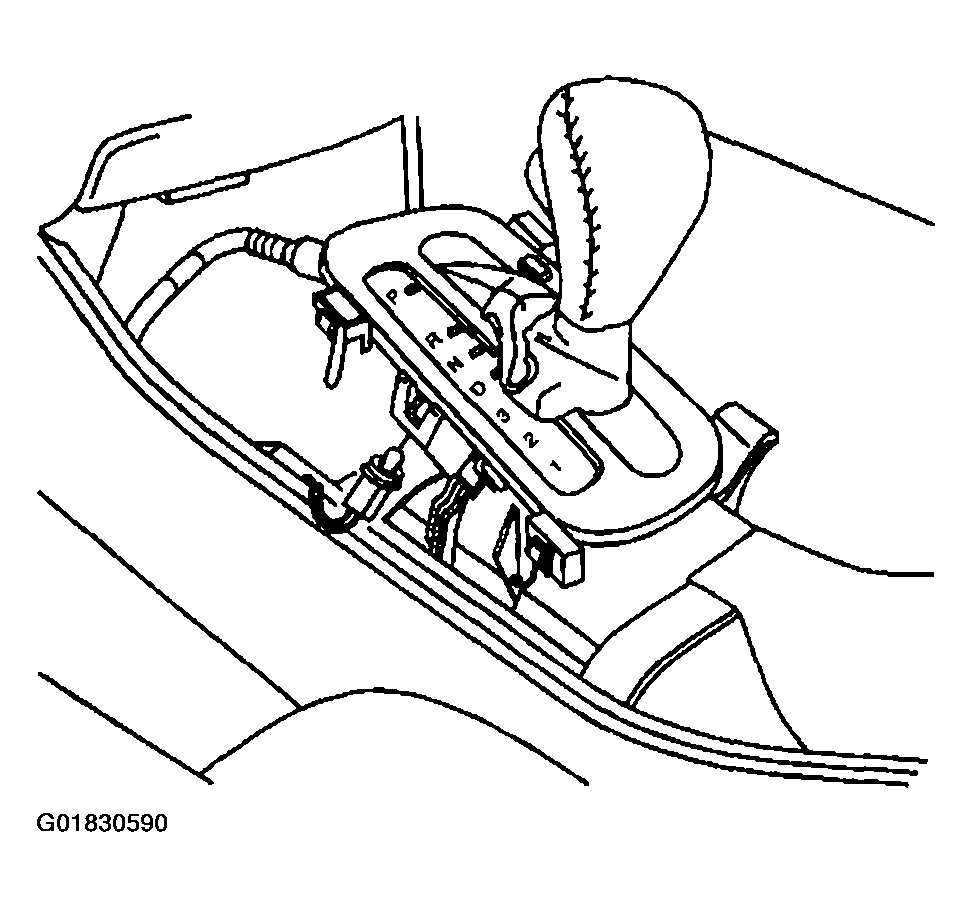

    Fig 1: Installing Trans Floor Shift Control Indicator Lamp
    G01830590Courtesy of GENERAL MOTORS CORP.
