Powertrain Control Module: Installation

  1. Install the connectors (2) to the PCM (1). Tighten the connectors to 71 INCH lbs. (8 N.m). See Fig 3 .
  2. Install the PCM (3) into the air cleaner housing assembly.
  3. Install the air cleaner housing cover (1). See Fig 2 .
  4. Tighten the retaining screw (2) for the air cleaner cover.
  5. Reconnect the air duct (3) to the throttle body (1), and tighten the band clamp (2) at the throttle body. See Fig 1 .
  6. Reconnect the electrical connectors for the IAT sensor and the MAF sensor.
  7. Install the strut brace.
  8. Connect the negative battery cable.
  9. If a new PCM is being installed, program the EEPROM. See appropriate BODY CONTROL MODULES article in ACCESSORIES & EQUIPMENT.

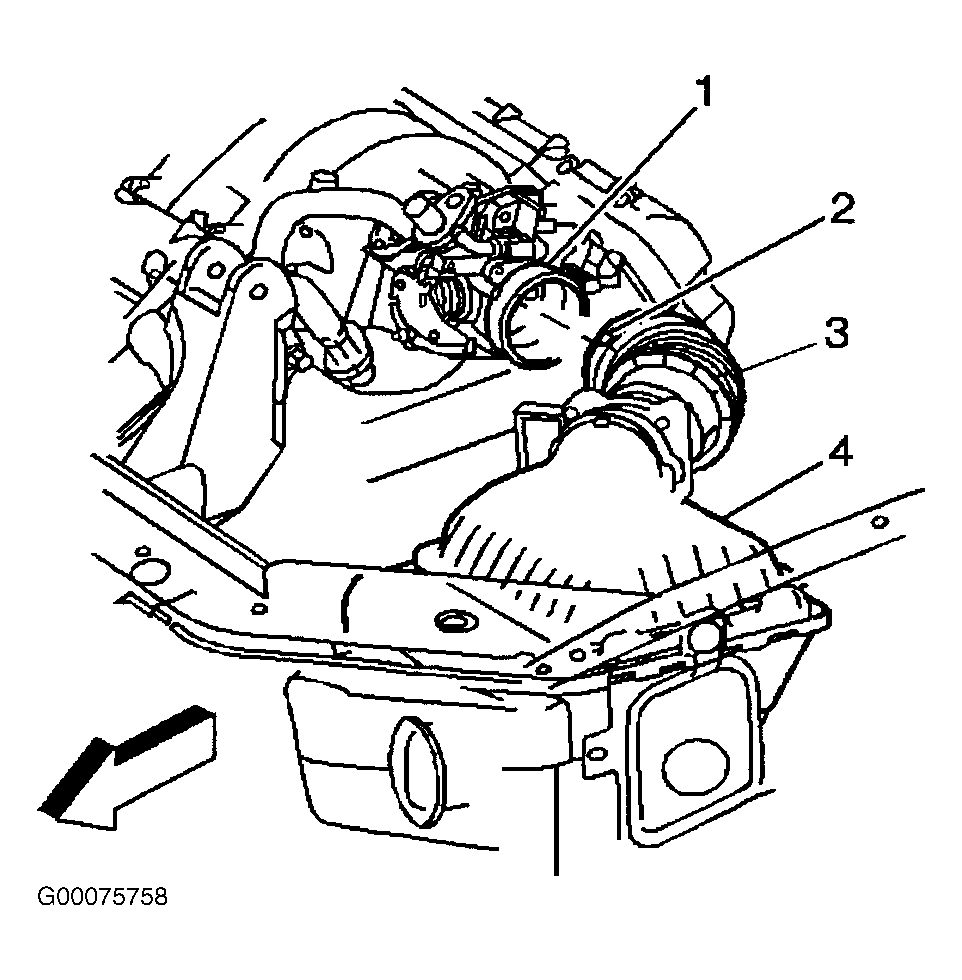

Fig 1: Removing & Installing PCM (1 Of 3)
G00075758Courtesy of GENERAL MOTORS CORP.

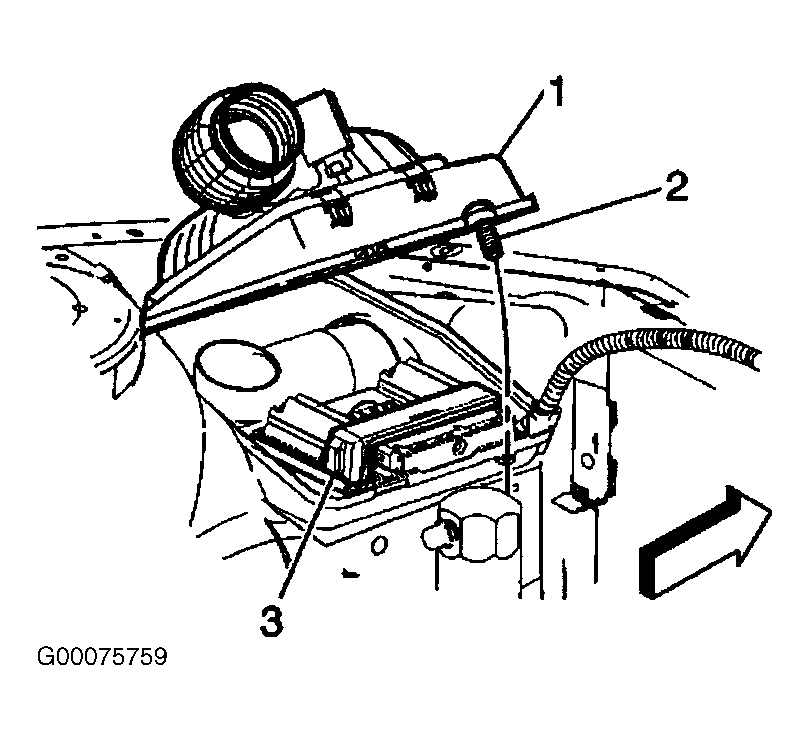

Fig 2: Removing & Installing PCM (2 Of 3)
G00075759Courtesy of GENERAL MOTORS CORP.

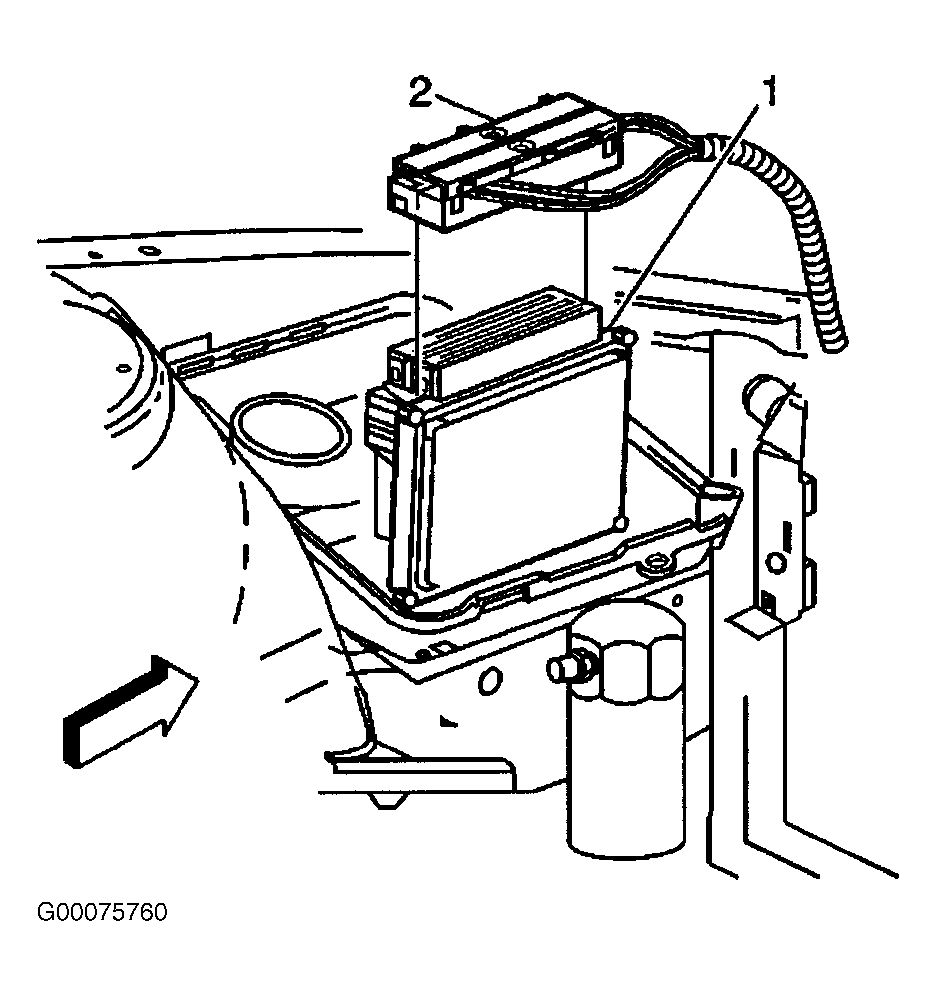

Fig 3: Removing & Installing PCM (3 Of 3)
G00075760Courtesy of GENERAL MOTORS CORP.
