Centering Window On Front/Spring Service Lock On Back

NOTE: Ensure wheels are in straight-ahead position, steering shaft block tooth is in 12 o'clock position, and ignition switch is in LOCK position.

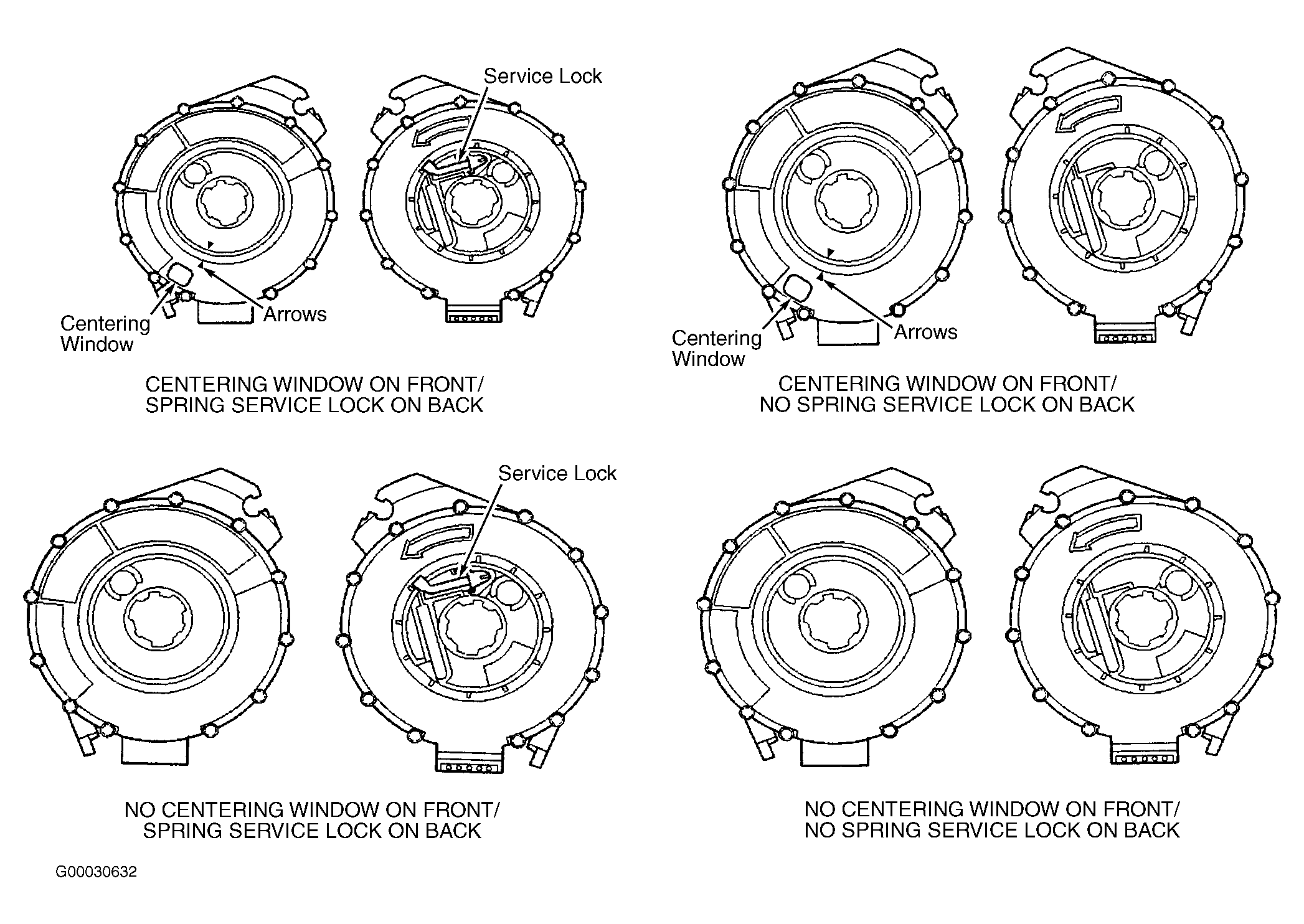

Hold coil with face up. See Figure. While depressing spring service lock, rotate coil hub clockwise until ribbon stops. Rotate coil hub slowly, counterclockwise, until centering window appears YELLOW, and both arrows lines up. Release spring service lock between locking tab. Coil is now centered. Align coil with horn tower, and slide onto steering shaft.
